SFP 850nm MMF Transceiver Module 300m OM3 LC For Juniper EX-SFP-10GE-SR

Description Of SFP 850nm

This SFP 850nm is an optical transceiver that uses an 850nm wavelength laser to transmit data at a rate of 10Gbps over a multi-mode fiber optic cable, maximum links up to 400m over OM4 MMF (300m over OM3 MMF) via an LC duplex connector.

This SFP 850nm is compliant with SFF-8431, SFF-8432, IEEE 802.3-2012 10GBASE-SR/SW and 10G Fibre Channel.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

This SFP 850nm is commonly used in short-range applications, such as within a data center or between adjacent buildings.

This SFP 850nm optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and perform identically to genuine Juniper EX-SFP-10GE-SR transceivers, with excellent interoperation on Juniper network equipment.

Specification Of SFP 850nm

Features Of SFP 850nm

• Hot-pluggable SFP 850nm transceiver
• Functionally identical to Juniper EX-SFP-10GE-SR
• 10.3Gbps bit rates
• 400m on OM4 or 300m on OM3
• Uncooled 850nm VCSEL laser
• Receiver limiting electrical interface
• Power dissipation < 1.0W
• Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle v
• Real-Time Digital Diagnostic Monitoring
• Operating temperature range:Commercial: -5°C~70°C;Industrial: -40°C~85°C
• RoHS compliant(lead-free)

Application Of SFP 850nm

• 10GBASE-SR
• 10GBASE-SW
• Fiber Channel
• Other Optical links

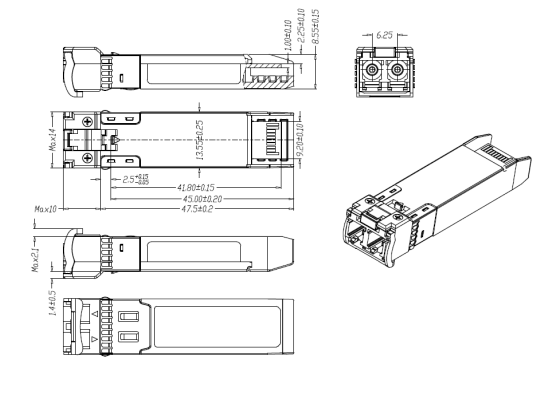

Package Outline Of SFP 850nm Transceiver

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
