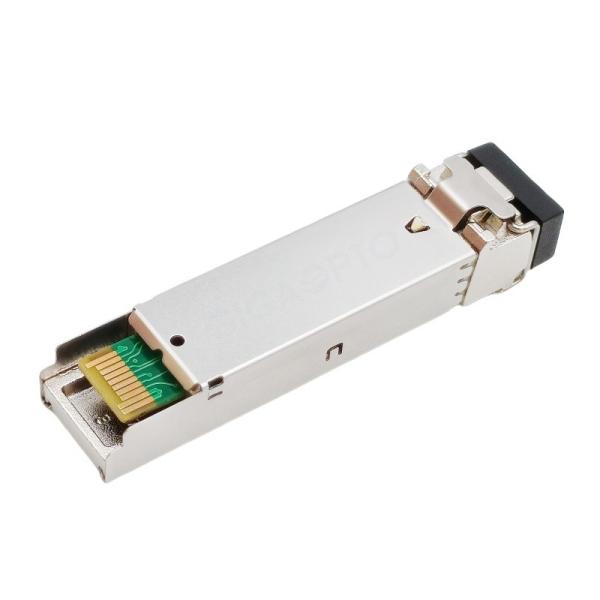

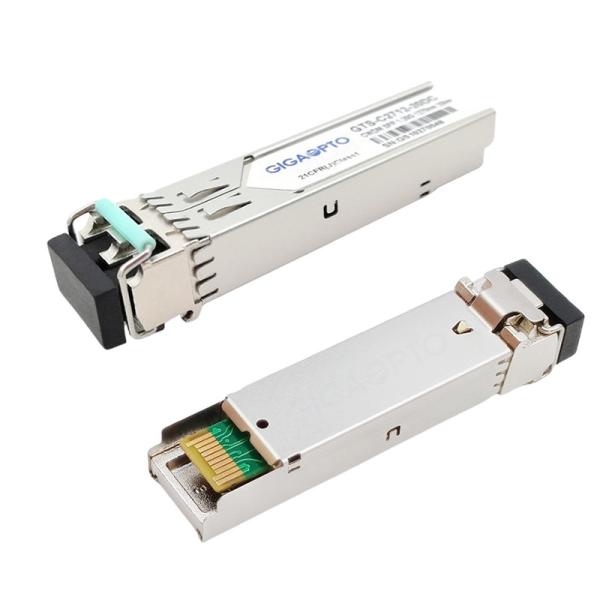

1000Mbps SFP 1270~1610nm CWDM Transceiver SMF 20km For HPE SFP20K-CWxxxx

Description Of HPE SFP20K-CWxxxx Compatible Transceiver

The HPE SFP20K-CWxxxx compatible transceiver is high performance and cost-effective CWDM(Coarse Wavelength-Division Multiplexing) SFP module for 1000BASE Gigabit Ethernet and 1G Fiber Channel application, providing 1Gb/s throughput up to 20km link lengths over single-mode fiber (SMF) via an LC duplex connector.

Digital Diagnostic Monitoring (DDM) functions are available to allow access to real-time operating parameters.

This 1G CWDM SFP transceiver delivers excellent performance and durability and is an ideal equivalent to the HPE SFP20K-CWxxxx transceiver but with a lower price and guaranteed quality, enabling it to work with HP 1 Gigabit SFP ports networking equipment.

Specification Of HPE SFP20K-CWxxxx Compatible Transceiver

Ordering Information Of HPE SFP20K-CWxxxx Compatible Transceiver

Features Of HPE SFP20K-CWxxxx Compatible Transceiver

• Hot-pluggable 1000BASE-CWDM HPE compatible transceiver
• Functionally identical to HPE SFP20K-CWxxxx
• Up to 20km over 9/125µm SMF

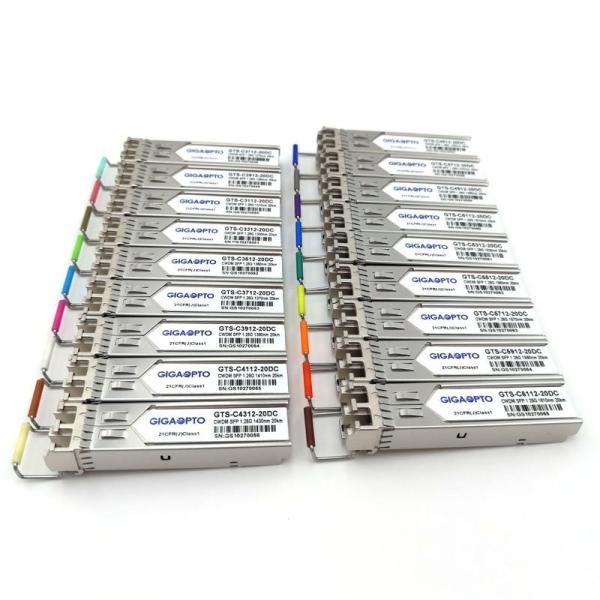

• 18-Wavelength CWDM 1270n~1610nm available
• DFB laser transmitter,PIN photodiode
• Built-in digital diagnostic via 2-wire interface
• Low power dissipation <1W typically
• Metal enclosure,lower EMI
• Case operating temperature range:Commercial: 0°C~70°C (32 to 158°F);Industrial: -40°C~85°C (-40 to 185°F)
• Compliant with RoHS and lead-free

Application Of HPE SFP20K-CWxxxx Compatible Transceiver

• 1G Fiber Channel, Switch to Switch Interface
• Gigabit Ethernet
• WDM systems
• Other optical networking

Mechanical Dimension Of HPE SFP20K-CWxxxx Compatible Transceiver

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)

FAQ

Q: Are you factory or trading company?

Shenzhen GigaOpto Technology Co., Ltd is a specialized manufacturer of optical transceivers from 155Mbps to 100Gbps, covering PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.

Q: Can I have a sample order? What is your MOQ?

Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.

Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP , Huawei, Alcatel-Lucent, H3C, and more.

Q: How can you guarantee the quality?

GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.

Q: What is the operating temperature range of optical modules?

Commercial temperature range(Com.) : 0 to 70℃

Extended temperature range(Ext.):-20 to 85℃

Industrial temperature range(Ind.)::-40 to 85℃

Q: Can you accept OEM/ODM orders?

Yes, please send an inquiry to us so that we can have a detailed discussion.

Q: What is the lead time?
For usual products, We keep stock and could ship about 3 days after receiving payment. For big quantities and special products, Please check the lead time with our sales representative.

Q: What is your after-sales service?

All our customers can get three years quality warranty and lifetime technical support.
