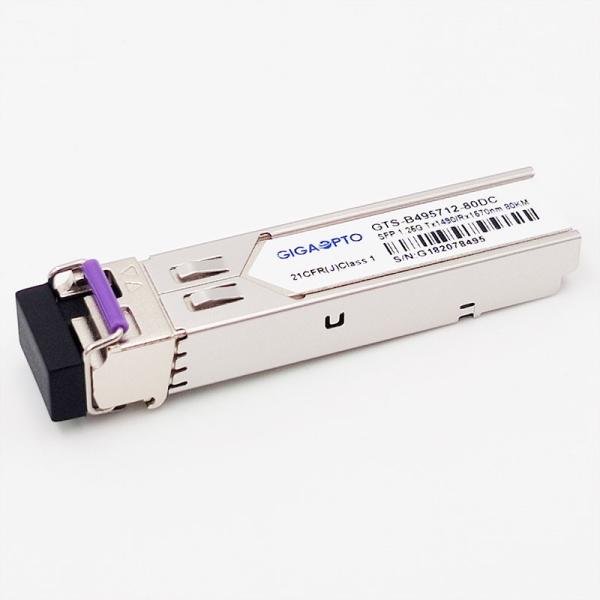

Cisco Compatible 1000BASE-BX 1.25G BiDi SFP Transceiver Module 1490nm-TX/1570nm-RX 80km Simplex LC SMF DOM

Description

The GIGAOPTO's GTS-B495712-80DC optical transceiver provides 1000Base-BX throughput up to 80km link length over single-mode fiber (SMF) using a wavelength of 1490nmTx/1550nmRx via LC simplex connectors. This transceiver is a high performance and cost-effective small form factor pluggable (SFP) Bi-directional module specified for 1000BASE-BX Gigabit Ethernet and 1G Fiber Channel applications. This transceiver supports DDM/DOM optical diagnostics that allows access to real-time operating parameters.

This transceiver is fully compliant with IEEE 802.3 1000BASE-BX80 and SERDES standard, SFP Multi-Source Agreement

(MSA) and can be used on the MSA compliant networking equipment.

Specification

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator

according to the table.

Features

• Supports 1.25Gbps/1.0625Gbps bit rates
• Up to 80km on single 9/125µm SMF
• 1490nm DFB laser and 1570nm PIN photo detector

1570nm DFB laser and 1490nm PIN photo detector

• Bi-Directional LC connector
• Low power consumption, < 1.0W
• Very low EMI and excellent ESD protection
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Hot-pluggable SFP footprint
• International Class 1 laser safety certified
• Ambient operating temperature:

Commercial: 0°C~70°C (32 to 158°F)

Industrial: -40°C~85°C (-40 to 185°F)

• Compliant with RoHS6 and lead-free
• Compliant with SFP MSA and SFF-8472

Application

• 1G Fiber Channel
• Switch to Switch Interface
• Gigabit Ethernet
• Switched Backplane Applications
• Broadband aggregation and wireless infrastructure
• Router/Server Interface

Compatibility

All Gigaopto transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.
For this (1000BASE-BX BiDi SFP TX-1490nm/RX-1570nm 80km), please refer to the P/N correspondence table. For more product compatibility, please feel free to send us a message.
