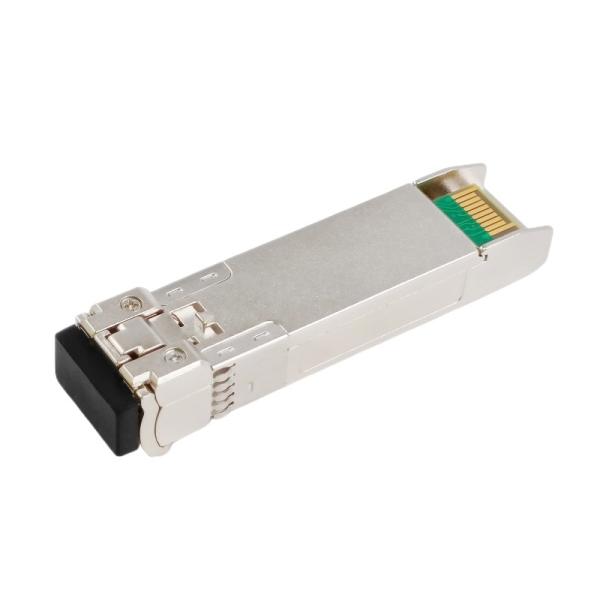

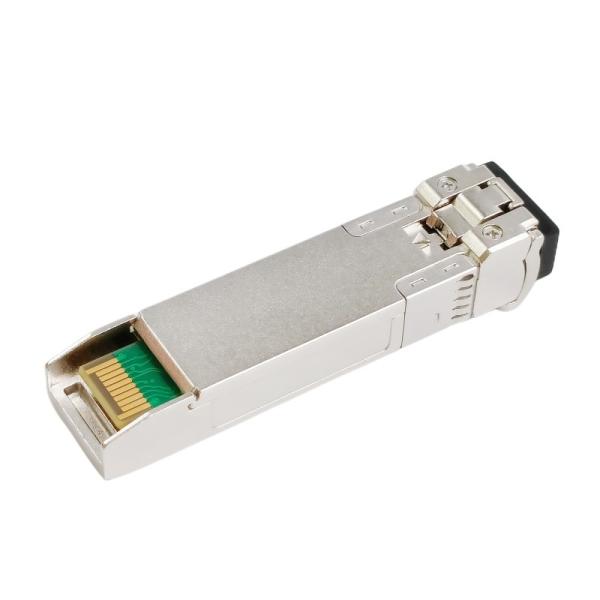

25.78Gbps SFP28 BIDI LR Transceiver Single Mode 10km Reach 1270nm TX / 1330nm RX

Description

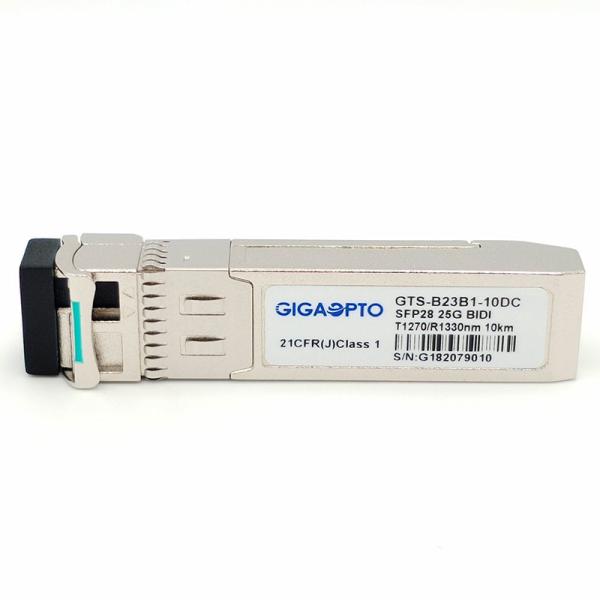

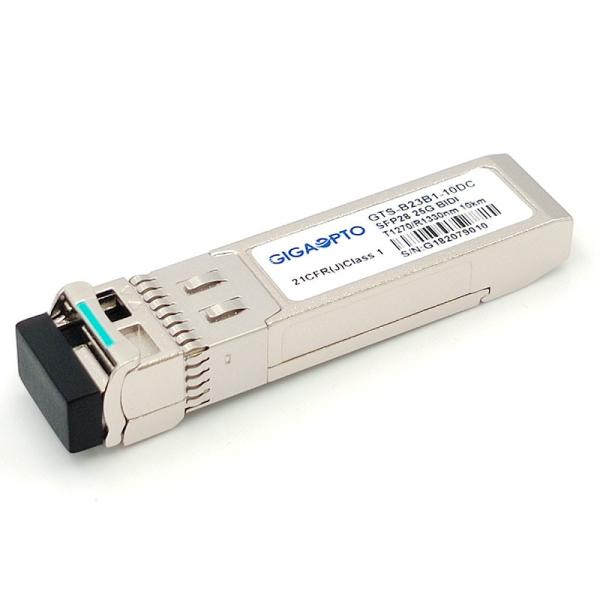

Gigaopto’s GTS-B23B1-10DC SFP28 optical transceivers are designed for bi-directional serial optical data communications such as Ethernet/eCPRI/CPRI links up to 25.78 Gb/s data rate and up to 10km link length. They are compliant to SFF-8472 Rev 12.2, and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 3.0.

The transmitter section uses a 1270nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses a 1330nm integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a rate selection clock data recovery (CDR) IC.

The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

This bidirectional unit must be used with another transceiver or network appliance of complementing wavelengths (our model P/N GTS-B32B1-10DC).

Specification

Features

• Supports up to 25.78Gbps bit rates
• Hot-pluggable SFP+ footprint
• 1270nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
• Compliant with SFP28 MSA and SFF-8472 with duplex LC receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature:Standard: 0 to +70°C

Application

• 25GE LR
• eCPRI & CPR

Compatibility

As a global provider of Brand Compatible Networking products, we have made significant investments over the past few years to support our customers, as well as in our physical infrastructure and test equipment platforms. Our overall trusted engineering and testing capabilities allow us to produce a large selection of Brand Compatible Transceivers. This GTS-B23B1-10DC optical transceiver is 100% compatible with mainstream optical devices. Below is a table of P/N correspondence for different brand modules. For more compatibility, please don't hesitate to contact us.

For More of our SFP28 25GBASE Transceiver Series, please refer to the following table:
