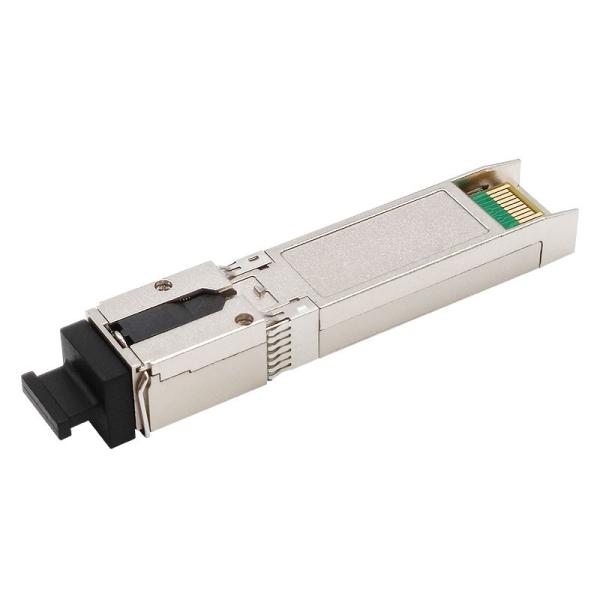

Generic GPON SFP Transceiver XGPON ONU N2a SFP+ Transceiver Module
Generic GPON SFP Transceiver XGPON ONU N2a SFP+ Transceiver Module
Generic GPON SFP Transceiver XGPON ONU N2a SFP+ Transceiver Module
Generic GPON SFP Transceiver XGPON ONU N2a SFP+ Transceiver Module
Generic GPON SFP Transceiver XGPON ONU N2a SFP+ Transceiver Module
Generic GPON SFP Transceiver XGPON ONU N2a SFP+ Transceiver Module
Generic GPON SFP Transceiver XGPON ONU N2a SFP+ Transceiver Module
Generic GPON SFP Transceiver XGPON ONU N2a SFP+ Transceiver Module
Specifications
Brand Name :
Gigaopto
Model Number :
GTS-SGU2A-30DC
Certification :
CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
20,000pcs/month
Delivery Time :
1-5 work days
Packaging Details :
Single Package，10 or 20pcs per Tray，30 or 50 or 100pcs per box, 400 or 600pcs per carton
Product Category :
PON Module
Type :
XGPON ONU
Packaging/Class :
SFP+ / N2a
Data-Rate :
Tx_2.488G /Rx_ 9.953G
Wavelength(TX/RX) :
1270nm/1577nm
Components :
DFB/APD
Connector :
SC/UPC Receptacle
DDM :
supported
Keywords :
XGPON ONU N2a SFP+ Transceiver Module
Description

XGPON ONU SFP+ Transceiver

Compliant with ITU-TG.987.2 XGPON N2a class

Single fiber bidi Transceiver

2.48832Gb/s upstream and 9.95328Gb/s downstream

RoHS,CE,FCC,REACH compliant

Description

The Gigaopto’s GTS-SGU2A-30DC XGPON ONU N2a SFP+ transceiver is designed for point-to-multipoint (P2MP) Fiber to the Home (FTTH), Business or Curb (FTTx) applications with 9.95328Gbps in downstream and 2.48832Gbps in upstream. It is a high performance module for single fiber communications by using 1270nm burst-mode transmitter and 1577nm continuous-mode receiver.

The transmitter section uses a 1270nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825-1. The receiver section uses an integrated 1577nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.CML interface is used for differential inputs and outputs. A LVTTL logic and control interface simplifies interface to external circuitry.

It is fully compliant with SFP+ MSA, SFF-8432, SFF-8472 and RoHS standards.

Specification

Brand Generic Form Type SFP+
Type XGPON ONU Bit Speed(Gbps) 2.488G/9.953G
Transmission 20km Connector SC UPC
Product Category PON SFP Diagnostic Supported
Class N2a Operating Case Temperature Standard:-5 to 70°C
Warranty Time 3 Years Industrial: -40~85°C
Data Rate TX 2.488Gbps Data Rate RX 9.953Gbps
Wavelength (TX) 1270nm Wavelength (RX) 1577nm
Power Dissipation <1.5 W Total Supply Current <450mA
Transmitter Type DFB Laser Receiver Type APD-TIA
TX Output Power 4~9dBm Rx Sensitivity < -28.0dBm
Extinction Ratio >8.2dB Overload >-8dBm
Protocols XG-PON

Ordering Information

Part. No Specifications
Package Data Rate P_DOWN LOS/SD Temp. Reach
(Gbps) (Pin 9) (Pin 8) (°C) (km)
GTS-SGU2A-30DCJ SFP+ Tx 2.488 / Rx 9.953 With SD -5~70 20
GTS-SGU2A-30DCK SFP+ Tx 2.488 / Rx 9.953 Without SD -5~70 20
GTS-SGU2A-30DIJ SFP+ Tx 2.488 / Rx 9.953 With SD -40~85 20
GTS-SGU2A-30DIK SFP+ Tx 2.488 / Rx 9.953 Without SD -40~85 20
GTS-SGU2A-30DCM SFP+ Tx 2.488 / Rx 9.953 With LOS -5~70 20
GTS-SGU2A-30DCN SFP+ Tx 2.488 / Rx 9.953 Without LOS -5~70 20
GTS-SGU2A-30DIM SFP+ Tx 2.488 / Rx 9.953 With LOS -40~85 20
GTS-SGU2A-30DIN SFP+ Tx 2.488 / Rx 9.953 Without LOS -40~85 20

Features

  • Single fiber bi-directional data links
  • 1270nm DFB laser transmitter and 1577nm APD receiver
  • 2.488Gbps burst mode transmission
  • 9.953Gbps continuous mode receiver data rate
  • SFP+ package with SC/UPC Receptacle Connector
  • Single 3.3V power supply
  • Digital diagnostic monitoring interface
  • CML compatible data input/output interface
  • Provide TX burst mode signal detect function
  • LVTTL transmitter laser fault alarm
  • Low EMI and excellent ESD protection
  • Class I laser safety standard IEC-60825 compliant
  • RoHS6 Compliance

Application

  • 10-Gigabit-capable passive optical networks(XG-PON1) ONU (ODN:N1 or N2a class)

Standards

  • Complies with SFP+ MSA (SFF-8431)
  • Complies with ITU-T G.987.2
  • Complies with FCC 47 CFR Part 15, Class B
  • Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
  • Complies with SFF-8472

Package Outline

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
