Cisco Linksys Compatible SFP 155Mbps 100BASE-LX 1310nm 15km SMF DOM Duplex LC Transceiver Module

Description

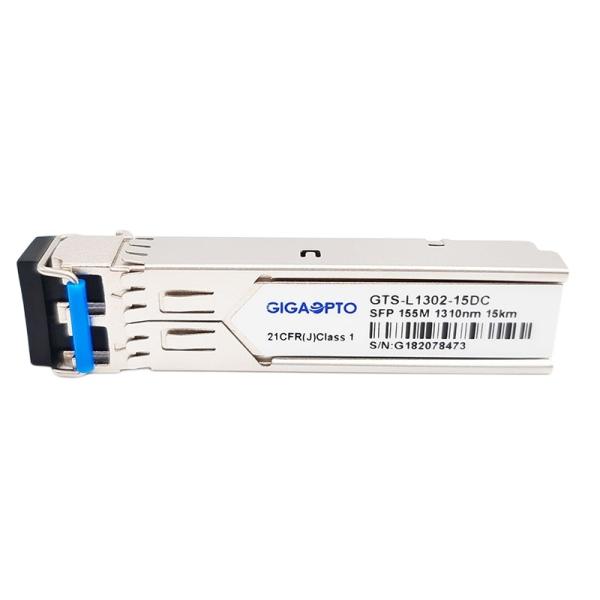

The GIGAOPTO's GTS-L1302-15DC transceiver is a small form factor pluggable (SFP) module with speed rate up to 155Mbps and transmission distance up to 15km over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. It’s designed for applications in duplex optical data communications such as Fast Ethernet and OC-3/STM-1 SDH/SONET. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFP MSA, SONET / SDH standards, and ClassⅠlaser safety.

Featuring low power consumption, this hot swappable 100BASE SFP transceiver is ideal for Internet Service Provider (ISP) Fast Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Specification

Features

• Operating data rate up to 155Mbps
• 1310nm FP laser transmitter
• 15km with 9/125 µm SMF
• Single 3.3V power supply and TTL logic interface
• Hot-Pluggable SFP footprint duplex LC connector interface
• International Class 1 laser safety certified
• Operating case temperature range:

Standard: 0°C~70°C

Industrial: -40°C~85°C

• RoHS Compliant
• Monitoring Interface Compliant with SFF-8472

Application

• Fast Ethernet
• SONET OC-3/SDH STM-1
• ATM Switches and Routers

Compatibility

All Gigaopto transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.
For this (100BASE-LX SFP 1310nm 15km), please refer to the P/N correspondence table. For more product compatibility, please feel free to send us a message.

Ordering Information
