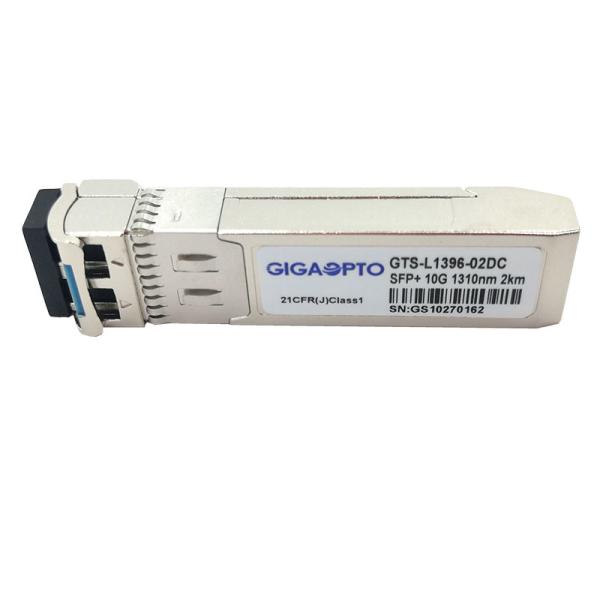

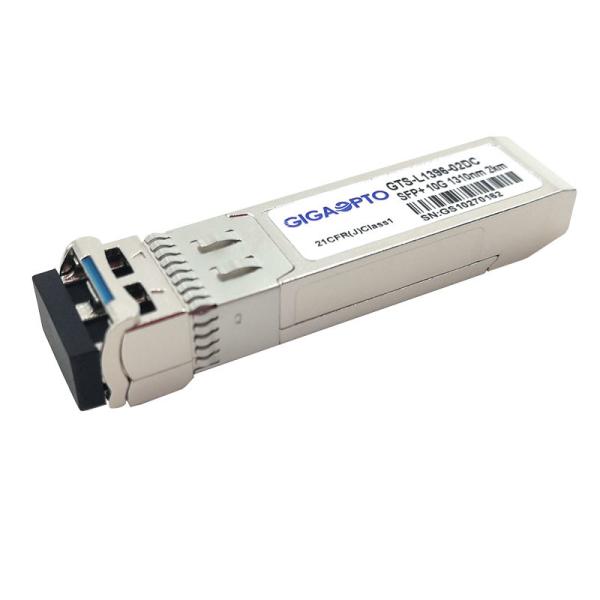

10GBASE LRM2 SFP Plus 1310nm SMF 2km Optical Transceiver LC DOM

Description

This high performance, cost effective SFP+ 10GBASE-LRM2 transceiver module is designed for use in 10GBASE Ethernet, supporting 2km transmission over double strand single mode fiber via an LC connector using a nominal wavelength of 1310nm.

This SFP+ 10G LRM2 transceiver consists of two sections: a high reliable 1310nm FP laser transmitter and a high sensitivity PIN photodiode, all module satisfy Class 1 laser safety requirements.

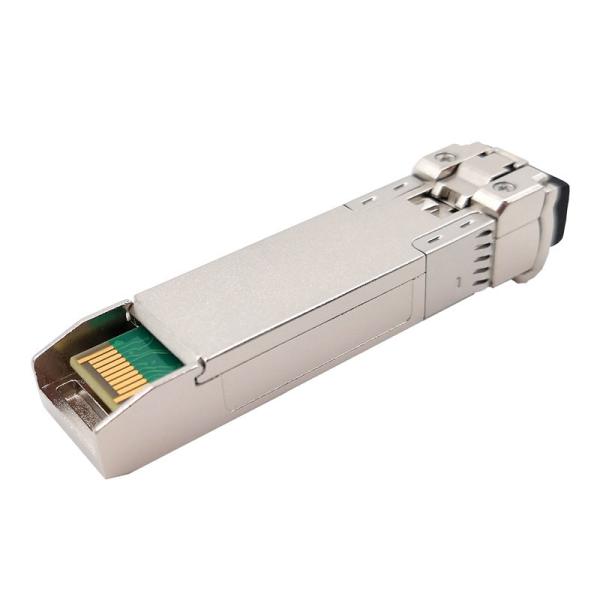

This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. It is with the SFP+ 20-pin edge type connector to allow hot plug capability.

Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ LRM2 transceiver is widely used for data center, 10G Fiber Channel, SONET and SDH etc.

Each transceiver is 100% optically inspected and tested for compatibility before shipping.

Specification

Packaging Technology SFP+ Max Bit- Rate 10G
Wavelength (TX) 1310nm Fiber Reach 2km
Connector LC Duplex Media SMF
Transmitter Type FP Laser Receiver Type PIN
TX Output Power -8.2~-0.5dBm RX Sensitivity <-14.4dBm
Power-budget 6.2dB Extinction Ratio >3.5dB
Power Consumption ≤1.0W RX Overload >0.5dBm
DOM Support Yes Temperature Range Com.
OEM/ODM Supported Warranty Limited Time 36 months
Protocols SFP+ MSA Compliant, CPRI, eCPRI

Features

  • Full Compatible SFP-10G-LRM2 Transceiver Module
  • Hot-pluggable SFP+ footprint
  • Supports 8.5 to 11.3 Gb/s bit rates and link up to 2km over SMF
  • Reliable 1310nm FP transmitter, PIN photo-detector
  • Duplex LC receptacle
  • Power dissipation < 1W
  • Single 3.3V power supply
  • Built-in digital diagnostic functions
  • Commercial temperature range 0°C to 70°C
  • RoHS compliant (lead-free)

Application

  • 10G Base-LR/LW
  • 10G Fiber Channel
  • SONET / SDH

Electrical and Optical Characteristics

Electrical Characteristics
Parameter Symbol Min Typical Max Unit Notes
Total Supply Current ICC 300 mA
Transmitter
Transmitter Differential Input Voltage 180 1200 mV
Tx_Fault Output Voltage - High VOH 2.4 Vcc V LVTTL
Tx_Fault Output Voltage - Low VOL 0 0.4 V LVTTL
Tx_Disable Input Voltage - High VIH 2 Vcc V LVTTL
Tx_Disable Input Voltage - Low VIL 0 0.8 V LVTTL
Input Differential Impedance 90 100 110 Ω
Receiver
Receiver Differential Output Voltage 300 850 mV
LOS Output Voltage - High VOH 2.4 Vcc V LVTTL
LOS Output Voltage - Low VOL 0 0.4 V LVTTL
Output Differential Impedance 90 100 110 Ω

Optical Transmitter Characteristics
Parameter Symbol Min Typical Max Unit Notes
Average Output Power POUT -8.2 +0.5 dBm
Center Wavelength λc 1260 1310 1360 nm
Spectral Width ∆λ 2.8 nm
Extinction Ratio ER 3.5 dB
Relative Intensity Noise RIN -128 dB/Hz
Optical Rise/Fall Time TR/TF 28 50 ps
Transmitter and Dispersion Penalty TDP 3.2 dB
Transmitter OFF Power POFF -45 dBm
Output Eye Diagram Complies with IEEE802.3ae
Optical Receiver Characteristics
Parameter Symbol Min Typical Max Unit Notes
Center Wavelength λc 1260 1610 nm
Receiver Sensitivity PSEN -14.4 dBm 1
Input Saturation Power (Overload) PSAT 0.5 dBm
Receiver Reflectance -12 dB
LOS De-assert Level LOSD -17 dBm
LOS Assert Level LOSA -30 dBm
LOS hysteresis HYS 0.5 6 dB

Note 1. Measured with PRBS231-1 pattern, @10.3125Gbps, ER=4dB, BER=1x10-12.

Compatibility

Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.

For this GTS-L1396-02DC, please refer to the P/N correspondence table. For more product compatibility, you are always welcome to contact us.

Corresponding Compatible Brand/Part Number
Compatible Brand Part Number Compatible Brand Part Number
Gigaopto GTS-L1396-02DC Brocade 10G-SFPP-LRM2
Cisco SFP-10G-LRM2 Juniper EX-SFP-10GE-LRM2
Netgear AXM764
