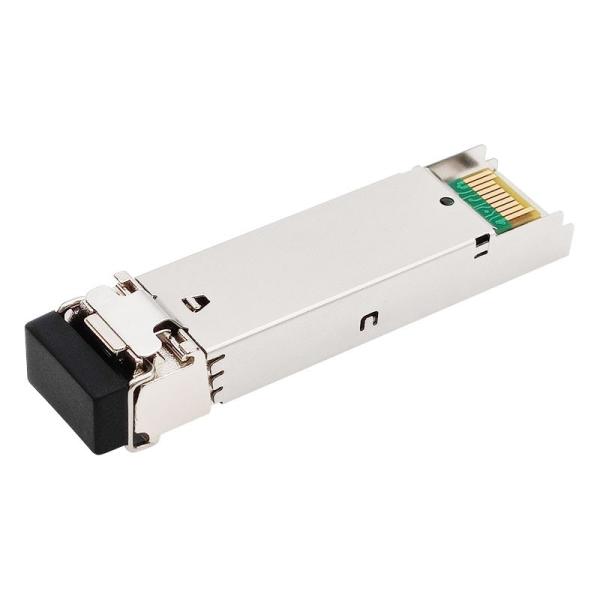

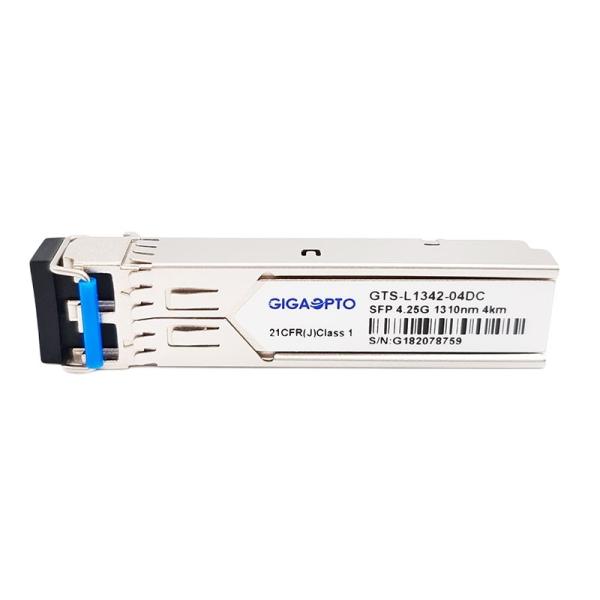

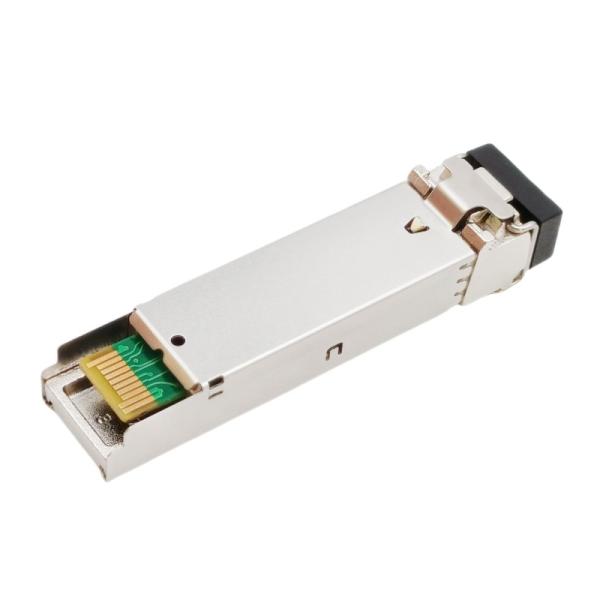

Cisco Compatible 4.25G 1310nm 4km Fiber Channel SFP SMF Duplex LC Transceiver Module

Description

The GIGAOPTO's GTS-L1342-04DC transceiver is a high performance small form factor pluggable (SFP) module for 4G/2G/1G Fibre Channel applications in storage area networks, supporting data rate of 4.25Gbps and 4km transmission distance over 9/125µm single-mode fiber at a nominal wavelength of 1310nm. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. This 4G FC SFP transceiver is programmed to be used in a wide range of storage networking equipment such as SAN switches, routers, network interface cards (NICs),etc.

Specification

Features

• Data rate up to 1.25Gbps operation
• Up to 4km with 9/125 µm SMF
• 1310nm FP laser transmitter and InGaAs PIN receiver
• Duplex LC receptacle optical interface compliant
• Single +3.3V power supply and TTL logic interface
• Low power dissipation
• Metal enclosure provides lower EMI
• Hot-pluggable SFP footprint
• International Class 1 Laser Safety Compliant
• Operating case temperature:

Commercial: 0°C~70°C

Industrial: -40°C~85°C

• RoHS Compliant
• Compliant with SFP MSA
• Compliant with SFF-8472

Application

• 4Gbps optical systems
• 1x/2x/4x fiber channel
• Storage Area Network(SAN)
• Other optical links

Compatibility

Gigaopto manufactures and stocks a full range of optical transceivers up to 100G. All of our optical transceiver modules are quality-tested for compatibility with the target switch environment and are 100% compatible with major brands such as Cisco, Brocade, HP, Juniper, Huawei, Alcatel-Lucent, Extreme, Arista, Force10, etc. and offer a 3-year warranty.
For this (4G SFP FC 1310nm 4km), please refer to the P/N correspondence table. If you need more compatibility, please don’t hesitate to let us know.
