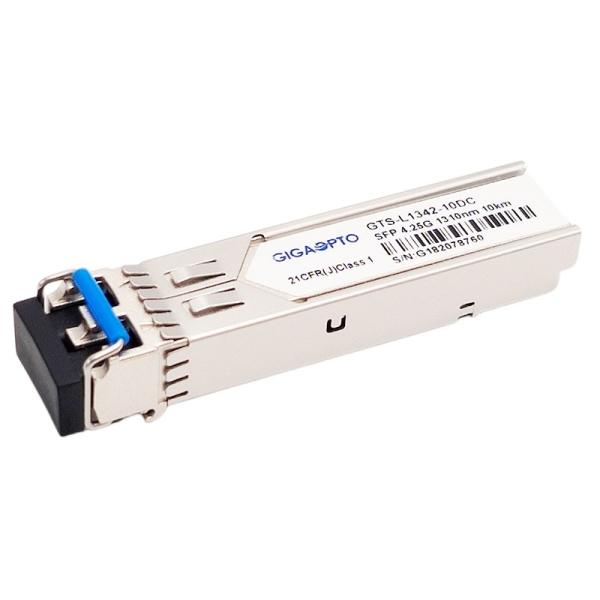

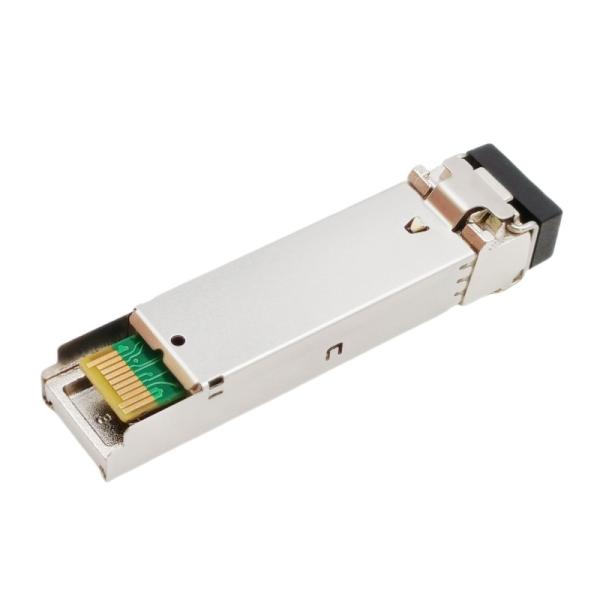

4G Fiber Channel Module SFP 1310nm 10km SMF Duplex LC DOM 4.25G Transceiver Module
4G Fiber Channel Module SFP 1310nm 10km SMF Duplex LC DOM 4.25G Transceiver Module
4G Fiber Channel Module SFP 1310nm 10km SMF Duplex LC DOM 4.25G Transceiver Module
4G Fiber Channel Module SFP 1310nm 10km SMF Duplex LC DOM 4.25G Transceiver Module
4G Fiber Channel Module SFP 1310nm 10km SMF Duplex LC DOM 4.25G Transceiver Module
4G Fiber Channel Module SFP 1310nm 10km SMF Duplex LC DOM 4.25G Transceiver Module
4G Fiber Channel Module SFP 1310nm 10km SMF Duplex LC DOM 4.25G Transceiver Module
4G Fiber Channel Module SFP 1310nm 10km SMF Duplex LC DOM 4.25G Transceiver Module
Specifications
Brand Name :
GIGAOPTO
Model Number :
GTS-L1342-10DC
Certification :
CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Place of Origin :
Shenzhen, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100,000pcs / month
Delivery Time :
1-5 working days
Packaging Details :
Single Package, 10 or 20pcs per Tray, 30 or 50 or 100pcs per box, 400 or 600pcs per carton
Form Factor :
SFP
Connector :
LC Duplex
Data Rate :
4.25Gb/s
Max Transmission Distance :
10km
Fibre Type :
SMF
Transmitter Type :
DFB 1310nm
Warranty :
3 Years
Keywords :
4.25G SFP Fiber Channel Module, 4G Fiber Channel,SFP Fiber Channel
Description

Cisco Compatible 4.25G Fiber Channel SFP 1310nm SMF 10km DOM Duplex LC Transceiver Module

Description

The GIGAOPTO's GTS-L1342-10DC transceiver is a high-performance small form factor pluggable (SFP) module for 4.25Gbps, 2.125Gbps and 1.06Gbps Fibre Channel (4GFC,2GFC,1GFC) applications in storage area networks.This module provides 4Gb/s throughput up to 10km over single-mode fiber (SMF) operating at a nominal wavelength of 1310nm via an LC connector.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

This 4G SFP module is designed to be compliant with SFF-8472 Multi-source Agreement (MSA) and RoHS standard.

Specification

Compatible Brand CISCO Compatible PN DS-SFP-FC4G-LW
Form Type SFP Max Data Rate 4.25Gb/s
Optical Connector LC duplex Max Distance 10km (6.2 miles)
DDM/DOM Yes Media Single-Mode Fiber
Warranty 3 Years Temperature Range

0 to 70°C (32 to 158°F),

-40 to 85°C (-40 to 185°F)
Center Wavelength 1310nm Power Supply Voltage 3.3V
Transmitter Type DFB 1310nm Receiver Type PIN
TX Power -8 ~ 0dBm RX Sensitivity < -18dBm
Extinction Ratio > 5dB RX Saturation >-3dBm
Protocols MSA Compliant

Features

  • Support up to 4.25Gb/s data links
  • Up to 10km on 9/125µm SMF
  • Duplex LC connector
  • 1310nm DFB laser transmitter and InGaAs PIN receiver
  • Single +3.3V power supply voltage and TTL logic interface
  • Support Digital Diagnostic Monitoring interface
  • Hot-pluggable SFP footprint
  • Low power dissipation
  • Metal enclosure provides lower EMI
  • ClassⅠlaser safety compliant
  • RoHS6 Compliant
  • Compliant with SFF-8472

Application

  • 1G/2G/4G Fibre Channel
  • Storage Area Network(SAN)
  • 1000Base-LX Ethernet
  • Other optical transmission distance

Compatibility

All Gigaopto transceivers are standards-based and MSA (Multi-Source Agreement) compliant, and rigorously tested and coded in our own facilities to ensure the highest level of performance. We conduct 100% application testing under end-use conditions.
For this (4G SFP FC 1310nm 10km), please refer to the P/N correspondence table. For more product compatibility, please feel free to send us a message.

Compatible Brand Compatible Part Number Compatible Brand Compatible Part Number
GIGAOPTO GTS-L1342-10DC IBM 23R1701
CISCO DS-SFP-FC4G-LW IBM 23R1702
Brocade XBR-000144 Brocade XBR-000250

Ordering Information

P/N Package Data Rate Wavelength Distance Media Laser Type Temp.
GTS-L0826-02DC SFP 2.12Gbps 850nm 300m MMF VCSEL 0 to 70°C
GTS-L1326-10DC SFP 2.12Gbps 1310nm 10km SMF FP 0 to 70°C
GTS-L0842-02DC SFP 4.25Gbps 850nm 150m MMF VCSEL 0 to 70°C
GTS-L1342-04DC SFP 4.25Gbps 1310nm 4km SMF FP 0 to 70°C
GTS-L1342-10DC SFP 4.25Gbps 1310nm 10km SMF DFB 0 to 70°C
GTS-L0826-02DI SFP 2.12Gbps 850nm 300m MMF VCSEL -40 to 85°C
GTS-L1326-10DI SFP 2.12Gbps 1310nm 10km SMF FP -40 to 85°C
GTS-L0842-02DI SFP 4.25Gbps 850nm 150m MMF VCSEL -40 to 85°C
GTS-L1342-04DI SFP 4.25Gbps 1310nm 4km SMF FP -40 to 85°C
GTS-L1342-10DI SFP 4.25Gbps 1310nm 10km SMF DFB -40 to 85°C
