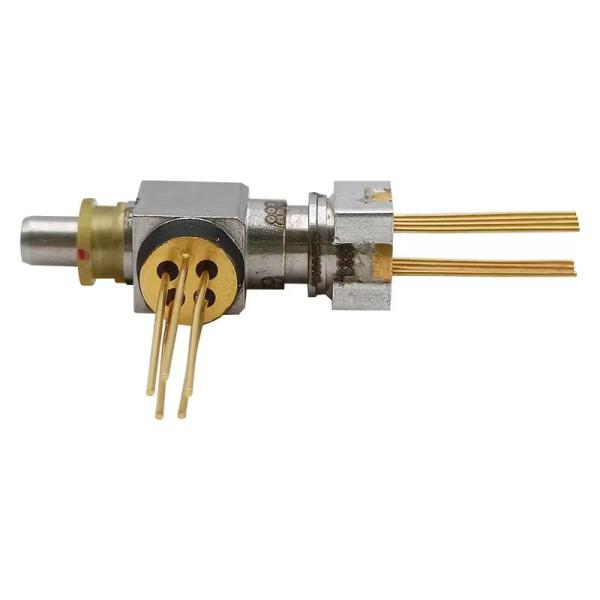

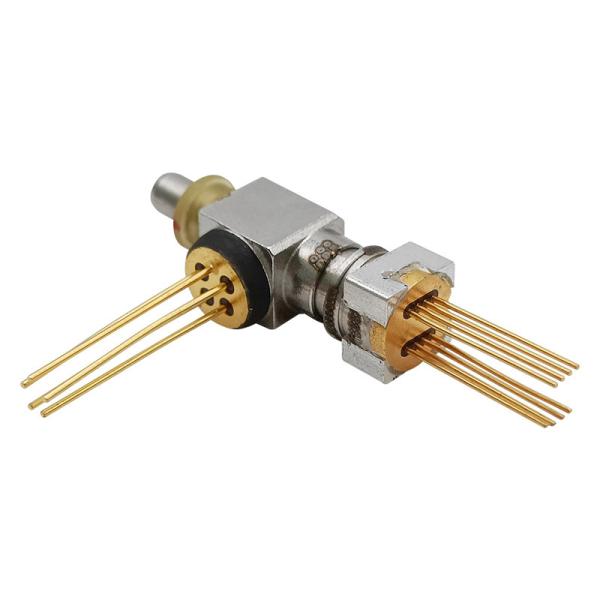

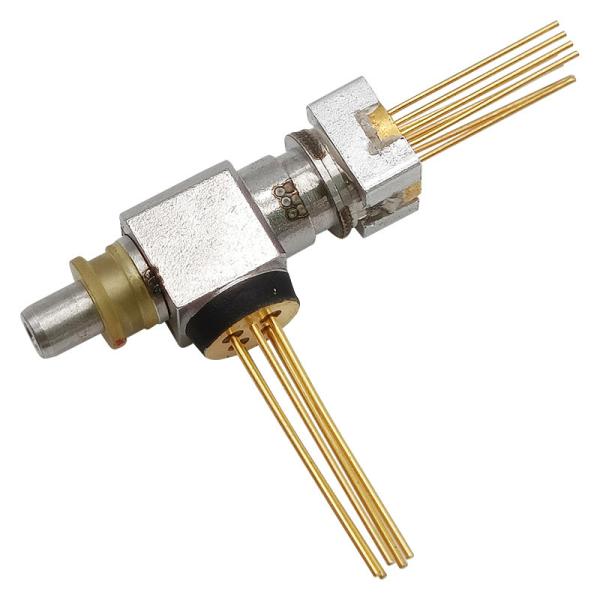

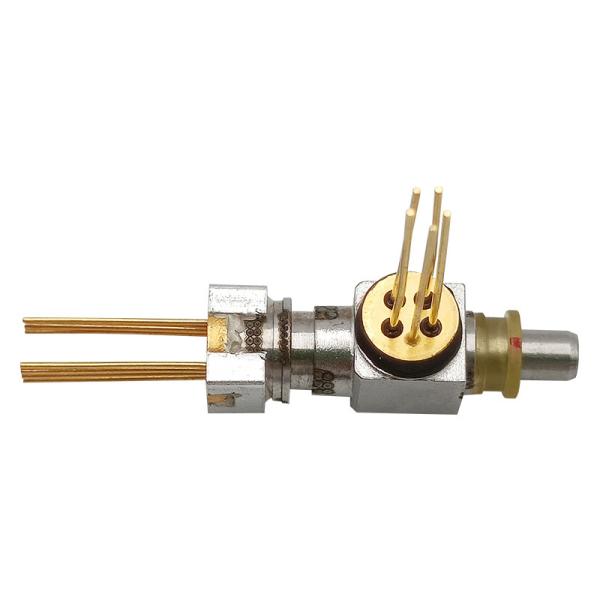

10Gbps LC SC WDM BOSA TX1550nm EML/RX1490nm PIN Bi-Directional Optical Sub-Assembly

Description

The GIGAOPTO's BOSA-T1550EML-R1490PIN-10G-LC-REC is designed for data communication, supporting 10Gb/s data rate. The transmitter side uses a 1550nm EML laser. The receiver side uses a 1490nm PIN with TIA.

Absolute Maximum Ratings (Tc=25℃)

Parameter Symbol Min. Max. Unit
Reverse Voltage (LD) VRL --- 2 V
Forward Current (LD) IFL --- 150 mA
Forward Current (MPD) IFD --- 10 mA
Operating Case Temperature TOP 0 75 ℃
Storage Temperature TSTG -40 +85 ℃
Lead Soldering Temperature (Maximum 10sec) TS --- 260 ℃
NTC Current INTC 5 V
NTC Voltage VNTC 2 mA
TEC Current ITEC -0.96 0.96 A
TEC Voltage VTEC -1.29 1.29 V
Resistance(Standard 10KΩ@25℃) Rth 9.5 10.5 KΩ
B constant of Rth B 3800 4000 K

Optical & Electrical Characteristics

Parameter Symbol Min. Typ. Max. Unit Test Condition
Transmitter (TC=25±3℃)
Threshold Current Ith --- --- 20 mA CW
Laser Set Temperature Tld 40 45 50 ℃
Optical Output Power Pf 2.8 --- --- mW

CW, Iop= 60 mA,

Tld= 45℃,VEA=0V
Operating Voltage Vop --- 1.2 1.6 V CW, Iop＝Ith+20mA
Centre Wavelength λc 1470 1490 1510 nm

Iop= 60 mA,Tld= 45℃,

VEA=0V
Monitor Current Imon 50 --- 1500 μA Iop= 60 mA,Tld= 45℃
SMSR --- 35 --- --- dB

Iop= 60 mA,Tld= 45℃,

VEA=0V
Tracking Error (CW) TE -1.0 --- 1.0 dB 0℃/+45℃, +45℃/+75℃
Receiver (TC=25±3℃)
Supply Voltage VCC 2.97 3.3 3.6 V
Breakdown Voltage VBR 27 33 45 V Id=10μA, Vcc off
Supply Current Icc --- 27 43 mA DC
Optical Wavelength λ 1470 1490 1510 nm
Sensitivity Sen --- --- -25.5 dBm

λ=1490nm , PRBS=2^31-1,

BER=10-12,ER=10dB,@10Gbps
Saturation Power Psat -6 --- --- dBm
PD Responsivity R 0.65 --- --- A/W λ=1490nm,CW

Features

  • Laser welded package
  • High sensitivity
  • 1550nm DFB laser diode transmitter
  • 1490nm PIN photo diode with TIA
  • Single mode fiber package with pigtail SC/UPC pigtail connector
  • RoHS6 Compliance
  • Operating temperature:Commercial: 0°C~70°C, Industrial: -40°C~85°C

Application

  • Telecommunication
  • Data Communication

Standard

  • Compliant with Telcordia GR-468 reliability test criterion
  • Compliant with RoHS standard
  • Compliant with GR-326 connector qualification standard

Outline Drawing (Unit: mm)
