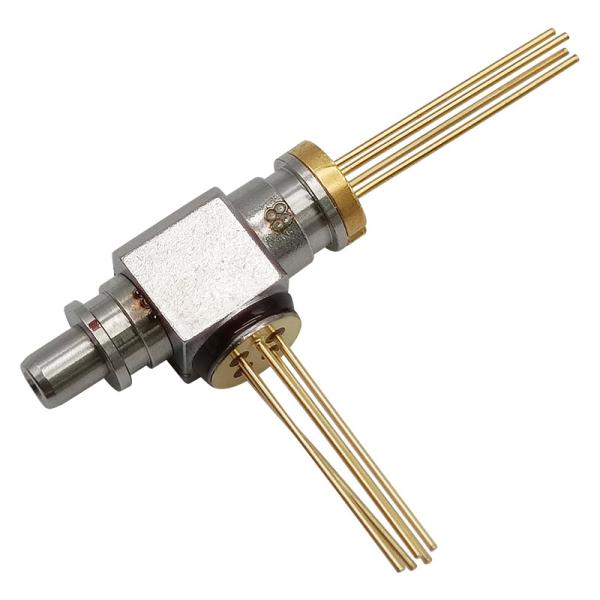

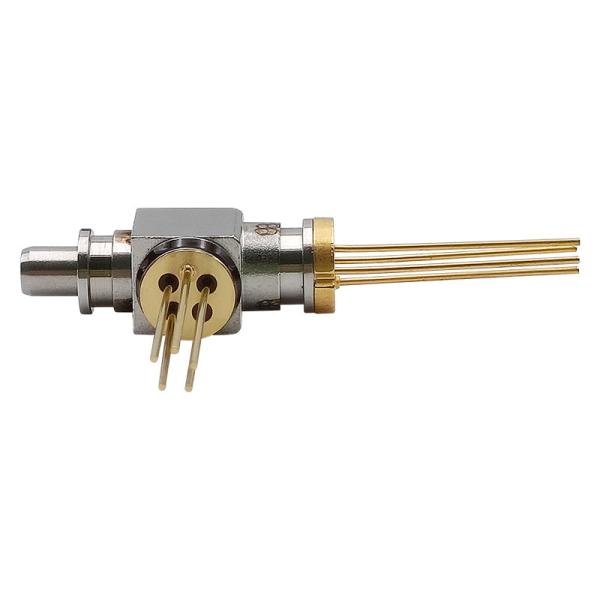

10Gbps LC SC WDM BOSA TX1270nm DFB/RX1330nm PIN Bi-Directional Optical Sub-Assembly

Description

The GIGAOPTO's BOSA-T1270DFB-R1330PIN-10G-LC-REC is designed for telecommunication, supporting data rate up to 10Gbp/s. The transmitter side uses a 1270nm DFB laser. The receiver side uses a 1330nm PIN with TIA.

Absolute Maximum Ratings (Tc=25℃)

Parameter Symbol Min. Max. Unit
Reverse Voltage (LD) VRL --- 2 V
Forward Current (LD) IFL --- 120 mA
Reverse Voltage (MPD) VRD --- 15 V
Forward Current (MPD) IFD --- 2 mA
TIA Operating Voltage VCC +3.0 +3.6 V
Operating Case Temperature TC -40 +85 ℃
Storage Temperature TSTG -40 +85 ℃
Lead Soldering Temperature (Maximum 10sec) TS --- 260 ℃
LD TO-can Pull Force --- 30 --- Kgf
PD TO-can Pull Force --- 15 --- Kgf
Shear Force --- 30 --- Kgf

Optical & Electrical Characteristics

Parameter Symbol Min. Typ. Max. Unit Test Condition
Transmitter (TC=25±3℃)
Threshold Current Ith --- 8 15 mA CW, TC=25℃
--- 15 30 CW, TC=85℃
Output Optical Power Pf 0.8 --- 1.6 mW CW, Iop=35mA, Tc=25℃
Operating Voltage Vf --- 1.2 1.8 V CW, Iop＝35mA
Rise/Fall Time Tr /Tf --- --- 120 ps

PF=5.0mW, Extinction

Ratio > 10dB,

20%-80%, without filter
Center Wavelength λp 1260 1270 1280 nm Iop=30mA, Tc=25℃
Spectrum Width (RMS) Δλ --- --- 1 nm Iop= 30mA,TC=-40℃~85℃
Monitor Current Im 100 --- 1000 μA Vrd=5V
SMSR --- 30 35 --- dB Iop=30mA, TC=-40℃~85℃
PD Capacitance C --- 3 10 pF Vrd=5V@f=1MHz
Tracking Error TE -1.5 --- 1.5 dB

CW,-40℃/+85℃,

Montior current hold

@ Iop=35mA
Receiver (TC=25±3℃)
Supply Voltage VCC 3.0 3.3 3.6 V CW
TIA Supply Current Icc 15 27 39 mA Vcc=3.3V
Optical Wavelength λ 1310 1330 1350 nm CW
Sensitivity Sen. --- --- -16 dBm

λ=1330nm , PRBS=2^31-1,

BER=10-12,ER=10dB,

@10Gbps
Saturation Power Psat 0 --- --- dBm
PD Responsivity R 0.7 --- --- A/W CW,λ=1330nm;

Features

  • Single fiber bi-directional data links
  • Laser welded package
  • High sensitive
  • 1270nm DFB transmitter
  • 1330nm PIN receiver
  • LC/SC connector
  • ROHS compliant products available
  • Operating temperature: -40°C~85°C

Application

  • Telecommunication
  • Data Communication

Standard

  • Compliant with Telcordia GR-468 reliability test criterion
  • Compliant with RoHS standard
  • Compliant with GR-326 connector qualification standard

Outline Drawing (Unit: mm)
