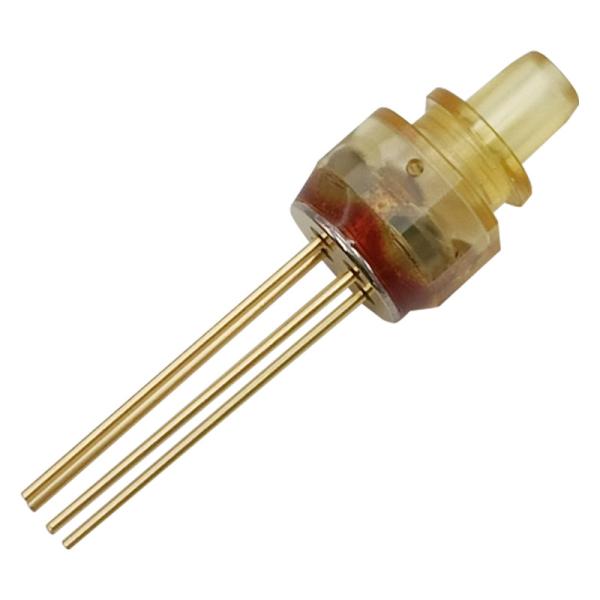

TIA APD Receiver Optical SubAssembly ROSA FC SC ST Single Mode SM 155M 1.25G 2.5G 10G
TIA APD Receiver Optical SubAssembly ROSA FC SC ST Single Mode SM 155M 1.25G 2.5G 10G
TIA APD Receiver Optical SubAssembly ROSA FC SC ST Single Mode SM 155M 1.25G 2.5G 10G
TIA APD Receiver Optical SubAssembly ROSA FC SC ST Single Mode SM 155M 1.25G 2.5G 10G
TIA APD Receiver Optical SubAssembly ROSA FC SC ST Single Mode SM 155M 1.25G 2.5G 10G
TIA APD Receiver Optical SubAssembly ROSA FC SC ST Single Mode SM 155M 1.25G 2.5G 10G
TIA APD Receiver Optical SubAssembly ROSA FC SC ST Single Mode SM 155M 1.25G 2.5G 10G
TIA APD Receiver Optical SubAssembly ROSA FC SC ST Single Mode SM 155M 1.25G 2.5G 10G
Specifications
Brand Name :
GIGAOPTO
Model Number :
ROSA-SM-APD-10G-LC
Certification :
CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Place of Origin :
Shenzhen, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500kpcs per month
Delivery Time :
1-5 working days
Packaging Details :
50pcs per Tray
TIA Supply Voltage :
2.97~3.46V
Supply Voltage :
3.3V
TIA Supply Current :
27mA
PD Responsivity :
＞0.65A/W
Sensitivity :
＜-26dBm
Overload Power :
＞-6dBm
Description

Single Mode SM 155M 1.25G 2.5G 10G PIN TIA APD Receiver Optical SubAssembly ROSA FC SC ST Receptacle

Features

◆ LC receptacle with fiber stub

◆ High sensitive APD-TIA

Applications

◆ 10 Gbps 1550nm 5pin LC ROSA

◆ Compliant the with ROHS (Restriction on Hazardous Substance) standard

Absolute Maximum Ratings

(Tc=25℃, unless otherwise noted)

Parameter Symbol Min. Max. Unit
Storage Temperature Tstg -40 85 ℃
Operating Case Temperature Top -40 85 ℃
TIA Supply Voltage Vcc 2.97 3.46 V
Hand Lead Soldering (Temperature)/(Time) --- --- 260/10 ℃/Sec

Receiver Optical and Electrical Characteristics

(Unless specified else,the specifications below are defined at TC=25±3℃ )

Parameter Symbol Min. Typ. Max. Unit Condition

Operating Wavelength

 λ 1270 --- 1610 nm
Breakdown Voltage VBR 27 33 45 V Id=10μA, Vcc off
Supply Voltage Vcc 2.97 3.3 3.6 V
TIA Supply Current Icc --- 27 43 mA DC
PD Responsivity R 0.65 --- --- A/W λ=1550nm,CW

Sensitivity

S

---

---

-26

dBm

NRZ, λ=1550nm,10.3125

Gbps ,PRBS231-1,

BER=10-12,ER=5dB,

Overload Power

P0

-6

---

---

dBm

NRZ, λ=1550nm,10.3125

Gbps ,PRBS231-1,

BER=10-12,ER=6dB,

ROSA Package Outline:

TIA APD Receiver Optical SubAssembly ROSA FC SC ST Single Mode SM 155M 1.25G 2.5G 10G
