Non MSA 12G SMPTE Video SFP BiDi Dual Transmitters Module LC 10Km DOM 2TX in BOSA 1-fiber solution

Functional Specification

Product Name 12G SFP+ BiDi 2Tx Data Rate (Gbps) up to 11.88Gbps
Module Type BiDi Dual Transmitter MSA/Non-MSA Non-MSA
Form Factor SFP+ 1 fiber Temperature 0 to 70°C (32 to 158°F)
Wavelength 1270nm-Tx1 / 1330nm-Tx2 Cable Transmission 10km
Fiber Connector Simplex LC Fibre Type Single-mode fiber
Transmitter Type DFB BiDi Receiver Type N/A
Supply Voltage 3.3V Supply Current 320mA
Average Output Power -5~1dBm Extinction-Ratio >3.5dB
DOM Yes Warranty 36 months
OEM/ODM Yes Weight 25gram
Protocols SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3GSDI), ST292-1(HD-SDI), and ST 259 (SD-SDI).

Products Description of 12G-SDI SFP+ BiDi Dual Transmitters Modules

Gigaopto's 12G-SDI SFP+ BiDi 2Tx dual-transmitter optical module is designed for 12G-SDI video broadcast network links reach up to 10km over Single-Mode Fiber (SMF), transmitting two lanes of 12G-SDI video signals.

The transmitter module is compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424 (3G SDI), ST 292-1 (HD-SDI), and ST259 (SD-SDI).

It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It uses two 1310 nm multiple quantum well DFB lasers and is a class 1 laser compliant according to International Safety Standard IEC-60825. A maximum distance of 10 km is achievable with 12Gbps pathological signals.

Features

  • SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI Compatible
  • Data rate up to 12Gb/s
  • Transmission up to 10 km for 12G-SDI
  • Re-clocker built-in
  • Support Video Pathological Patterns for HD-SDI,3G-SDI, 6G-SDI, and 12G-SDI
  • Dual Transmitter with Duplex LC
  • Based on Industry Standard SFP +
  • SFF-8472 Digital Diagnostic Function
  • Two Independent TTL Laser Disable Input
  • Single +3.3 V Power Supply
  • RoHS Compliant
  • Commercial Temperature Operation: 0 to +70°C
  • Hot-Pluggable
  • Class 1 Laser International Safety Standard IEC-60825 Compliant

Applications

  • Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
  • UHDTV/HDTV/SDTV Service Interfaces

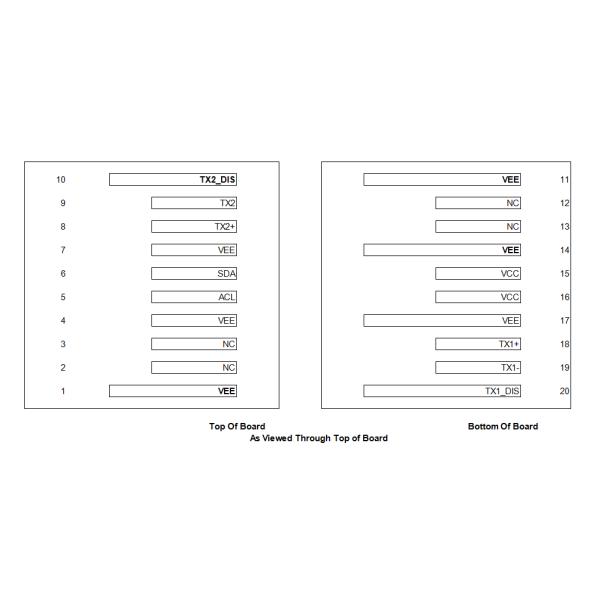

PIN Definition
