100BASE BX CSFP Dual BIDI 40km TX1550nm RX1310nm SM Transceiver LC DOM
100BASE BX CSFP Dual BIDI 40km TX1550nm RX1310nm SM Transceiver LC DOM
100BASE BX CSFP Dual BIDI 40km TX1550nm RX1310nm SM Transceiver LC DOM
100BASE BX CSFP Dual BIDI 40km TX1550nm RX1310nm SM Transceiver LC DOM
100BASE BX CSFP Dual BIDI 40km TX1550nm RX1310nm SM Transceiver LC DOM
100BASE BX CSFP Dual BIDI 40km TX1550nm RX1310nm SM Transceiver LC DOM
100BASE BX CSFP Dual BIDI 40km TX1550nm RX1310nm SM Transceiver LC DOM
100BASE BX CSFP Dual BIDI 40km TX1550nm RX1310nm SM Transceiver LC DOM
Specifications
Brand Name :
Gigaopto
Model Number :
GCS-B5303-B5303-40C
Certification :
CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50,000pcs/month
Delivery Time :
1-5 work days
Packaging Details :
Static bag, Plastic bag, Retail box or by required
Type :
2-fiber 100Base CSFP
Data-rate(Gbps) :
Dual 155Mbps
TX Wavelength :
2 x 1550nm
RX Wavelength :
2 x 1310nm
Component :
DFB+PIN
Distance :
40km
DOM/DDM :
Supported
Keywords :
100Base-BX CSFP transceiver
Description

155Mbps Compact SFP Transceiver 1550nm TX 1310nm RX 40km

Description

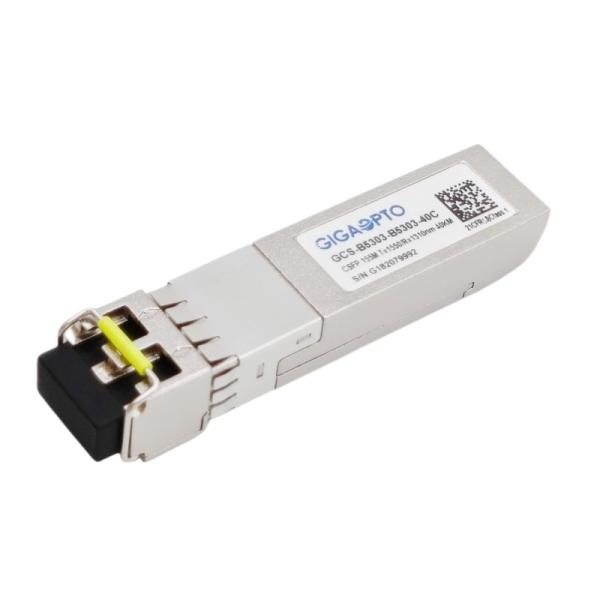

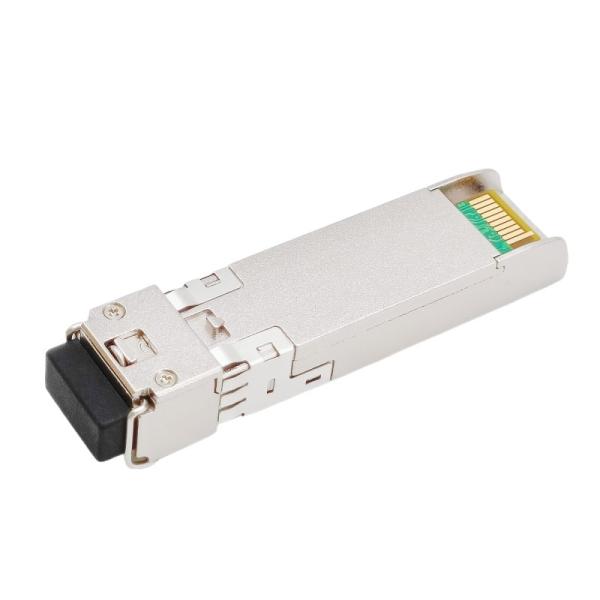

This GCS-B5303-B5303-40C CSFP Transceiver is high performance and high stability product operating in standard temperature,provides 100Base-BX 2-Channel throughput up to 40km over single-mode fiber (SMF) using a nominal wavelength of 1550nmTx/1310nmRx via an LC connector.

For each Channel, The transceiver consists of three sections: a highly reliable 1550nm DFB laser transmitter, a high quality 1310nm PIN photodetector integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C interface specified in the SFP MSA SFF-8472.

This 2-fiber 100Base Transceiver is fully compliant to compact Small Form-Factor Pluggable (CSFP) MSA option 2 and CE/RoHS certified.

Features

Product Series 2 Fiber 100Base CSFP Part No. GCS-B5303-B5303-40C
Package CSFP Type 2x BIDI per SFP port
Data-Rate (Ch1/Ch2) 155Mbps/155Mbps Lane Count 2x (Tx/Rx)
Transmission 40km @ G652 SMF Connector LC Duplex
Wavelength-Ch1 TX_1550nm/RX_1310nm Wavelength-Ch2 TX_1550nm/RX_1310nm
Power Voltage +3.3V Power Dissipation ≤ 1.3W
Transmitter Type DFB Laser Receiver Type PIN
Transmitter Power -1 ~ -4dBm Receiver Sensitivity < -39dBm
Extinction Ratio > 9dB Overload > -3dBm
Optical Budget (dB) 38dB Digital Diagnostic Support
Environment Operating: 0 to 70°C Warranty 3-year
Storage: -40°C to 85°C Unit Weight 25gram
Protocols Fast Ethernet, MSA Compliant

Features

  • Two Fiber dual Bi-directional CSFP transceiver
  • Support 155Mbps bi-directional data links
  • 1550nm DFB laser and 1310nm PIN photodiode
  • A max transmission 40km on 9/125µm SMF
  • Duplex LC Connector
  • +3.3V single power supply
  • Compliant with CSFP MSA Option 2 and SFF-8472
  • Compatible with SONET OC-3 system
  • Operating case temperature:0 to +70°C (Commercial)/ -20 ~ +80°C (Extended)/ -40°C to +85°C (Industrial)
  • RoHS Compliant and lead free
  • Class 1 Laser International Safety Standard IEC 60825 Compliant

Application

  • SONET OC-3 system
  • Fast Ethernet
  • Switch to Switch interface
  • Point to Point FTTH Application
  • Other optical transmission systems

Electrical and Optical Characteristics

Parameter Symbol Min Typical Max Unit Notes
Transmitter
Centre Wavelength λc 1530 1550 1570 nm
Spectral Width (-20dB) σ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Average Output Power Pout -4 -1 dBm 1
Extinction Ratio ER 9 dB
Optical Rise/Fall Time (20%~80%) tr/tf 0.26 ns
Data Input Swing Differential VIN 400 1800 mV 2
Input Differential Impedance ZIN 90 100 110 Ω

TX Disable

 Disable 2.0 Vcc V
Enable 0 0.8 V

TX Fault

 Fault 2.0 Vcc V
Normal 0 0.8 V
Receiver
Centre Wavelength λc 1290 1330 nm
Receiver Sensitivity -35 dBm 3
Receiver Overload -3 dBm 3
LOS De-Assert LOSD -35 dBm
LOS Assert LOSA -45 dBm
LOS Hysteresis 1 4 dB
Data Output Swing Differential Vout 400 1800 mV 4

LOS

 High 2.0 Vcc V
Low 0.8 V

Notes:

1. The optical power is launched into SMF.

2. PECL input, internally AC-coupled and terminated.

3. Measured with a PRBS 223-1 test pattern @155Mbps, BER ≤1×10-12.

4. Internally AC-coupled.
