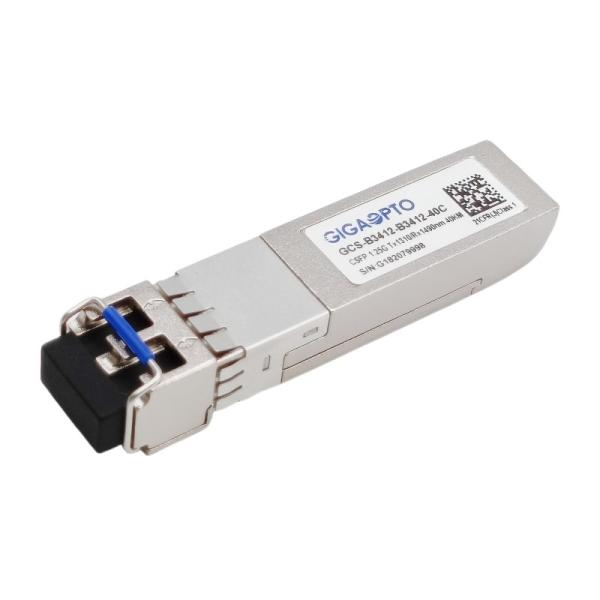

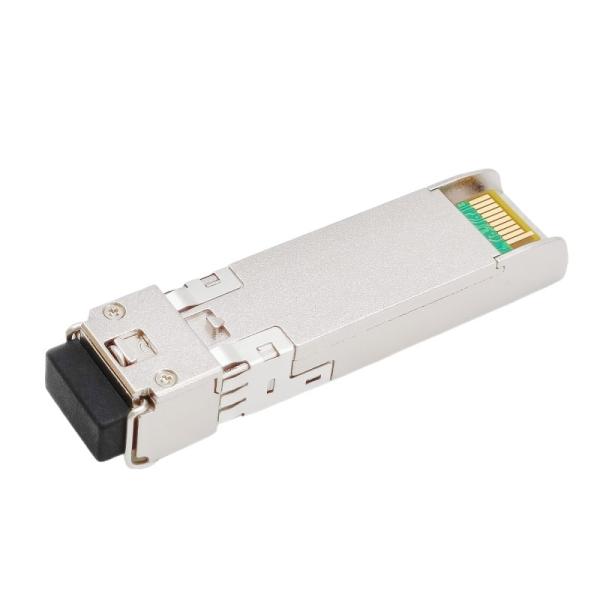

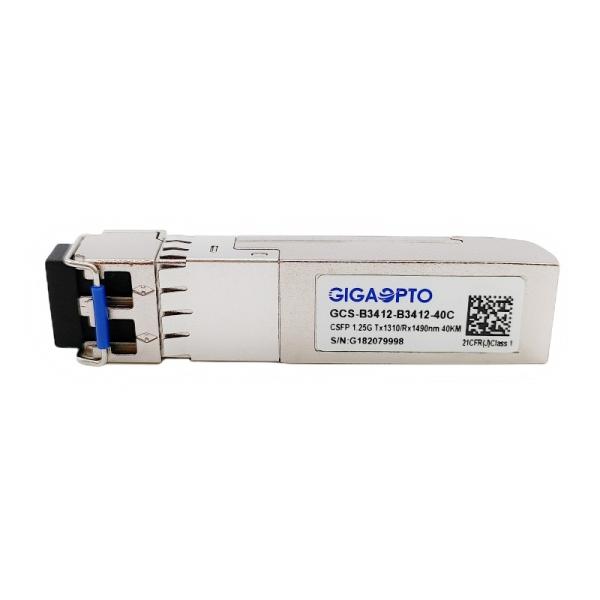

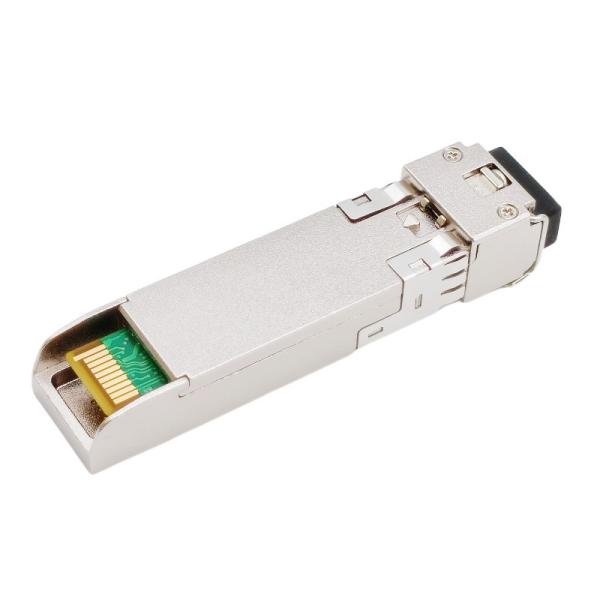

1.244G Dual Channel BIDI CSFP Transceiver Module TX1310nm RX1490nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1310nm RX1490nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1310nm RX1490nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1310nm RX1490nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1310nm RX1490nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1310nm RX1490nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1310nm RX1490nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1310nm RX1490nm SMF 40km
Specifications
Brand Name :
Gigaopto
Model Number :
GCS-B3412-B3412-40C
Certification :
CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50,000pcs/month
Delivery Time :
1-5 work days
Packaging Details :
Single Package，10 or 20pcs per Tray，30 or 50 or 100pcs per box, 400 or 600pcs per carton
Type :
Dual CSFP EX
Bit Rate :
Dual 1.244Gbps
TX Wavelength :
2 x 1310nm
RX Wavelength :
2 x 1490nm
Laser :
DFB
Transmission :
40km
Temperature :
Standard 0 to 70°C
Keywords :
1.244G CSFP BIDI Transceiver
Description

1.244G Dual Channel BIDI CSFP Transceiver Module TX1310nm RX1490nm SMF 40km

Description

This GCS-B3412-B3412-40C is a CSFP (Compact SFP) transceiver where both ports are bi-directional, i.e. providing

double capacity as compared to normal BiDi transceivers where one port is not used. This requires that the host equipment support CSFP transceivers.

It supports 1244Mbps throughput and 40km transmission distance with SMF. For each port, the transceiver unit consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Specifications

Product Series 1G CSFP Transceiver P/N GCS-B3412-B3412-40C
Packaging CSFP Type dual BiDi EX
Bit Rate (Gbps) 2x 1.244G Lane Count 2x ( Tx/Rx )
Cable Length 40km Connector LC/UPC duplex
TX Wavelength 2x 1310nm RX Wavelength 2x 1490nm
Power Voltage +3.3V (typical) Power Consumption ≤ 1.3W
Transmitter Part DFB Receiver Part PIN
Transmitter Power -5 ~ 0dBm RX Sensitivity < -25dBm
Extinction Ratio > 9dB Overload > 0dBm
Optical-budget (dB) 20dB DOM/DDM Support
Temperature Operating: Commercial 0 to 70°C Warranty 36-month
Storage: -40°C to 85°C Weight 25gram
Compliance Gigabit Ethernet, MSA Compliant

Features

  • Support up to 1.244Gbps Data Links
  • Single 3.3V Power supply and TTL Logic Interface
  • Dual Bi-directional transceivers in 1 Compact SFP transceiver package
  • 1310nm DFB laser and 1490nm PIN photodiode
  • Up to 40km on 9/125µm SMF
  • Digital Diagnostics Monitoring functions are available
  • Class 1 Laser International Safety Standard IEC 60825 Compliant
  • Operating Case Temperature Standard: 0~+70C and Industrial -40~+85C
  • Compliant with CSFP MSA Option 2 or Option 1
  • Compliant with Digital Diagnostic Monitor Interface SFF-8472
  • RoHS compliant and lead free

Application

  • SONET OC-24 system
  • Fast Ethernet
  • Switch to Switch interface
  • Point to Point FTTH Application
  • Other optical transmission systems

Optical and Electrical Characteristics

Parameter Symbol Min Typical Max Unit Notes
Transmitter
Centre Wavelength λc 1290 1310 1330 nm
Spectral Width (-20dB) σ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Average Output Power Pout -5 0 dBm 1
Extinction Ratio ER 9 dB
Optical Rise/Fall Time (20%~80%) tr/tf 0.26 ns
Data Input Swing Differential VIN 400 1800 mV 2
Input Differential Impedance ZIN 90 100 110 Ω

TX Disable

 Disable 2.0 Vcc V
Enable 0 0.8 V

TX Fault

 Fault 2.0 Vcc V
Normal 0 0.8 V
Receiver
Centre Wavelength λc 1470 1490 1510 nm
Receiver Sensitivity -25 dBm 3
Receiver Overload 0 dBm 3
LOS De-Assert LOSD -27 dBm
LOS Assert LOSA -40 dBm
LOS Hysteresis 1 4 dB
Data Output Swing Differential Vout 400 1800 mV 4

LOS

 High 2.0 Vcc V
Low 0.8 V

Notes:

1. The optical power is launched into SMF.

2. PECL input, internally AC-coupled and terminated.

3. Measured with a PRBS 223-1 test pattern @1244Mbps, BER ≤1×10-12.

4. Internally AC-coupled.

Package Outline

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)

1.244G Dual Channel BIDI CSFP Transceiver Module TX1310nm RX1490nm SMF 40km
