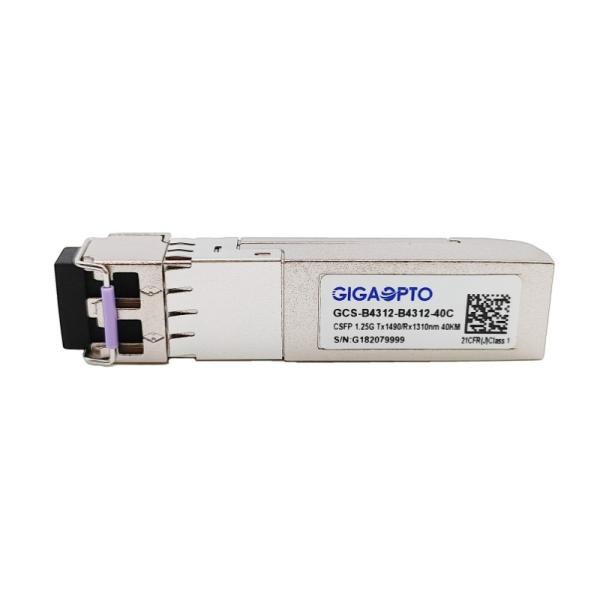

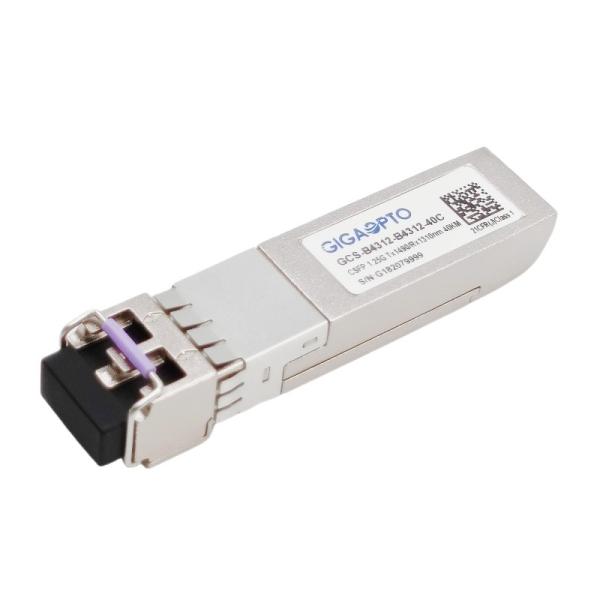

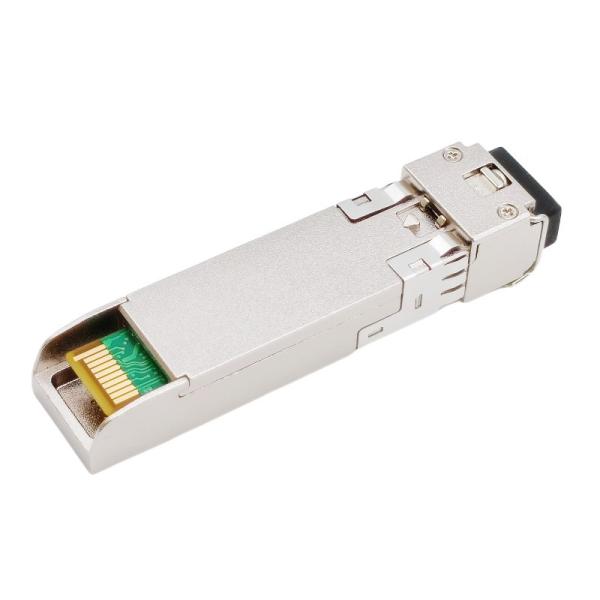

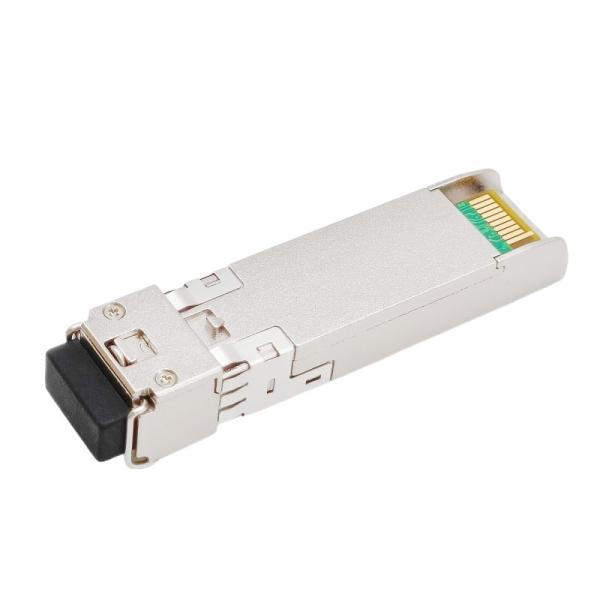

1.244G Dual Channel BIDI CSFP Transceiver Module TX1490nm RX1310nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1490nm RX1310nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1490nm RX1310nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1490nm RX1310nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1490nm RX1310nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1490nm RX1310nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1490nm RX1310nm SMF 40km
1.244G Dual Channel BIDI CSFP Transceiver Module TX1490nm RX1310nm SMF 40km
Specifications
Brand Name :
Gigaopto
Model Number :
GCS-B4312-B4312-40C
Certification :
CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50,000pcs/month
Delivery Time :
2-3days
Packaging Details :
Single Package，10 or 20pcs per Tray，30 or 50 or 100pcs per box, 400 or 600pcs per carton
Type :
CSFP 40km
Bit Rate :
Dual 1.244Gbps
TX Wavelength :
2 x 1490nm
RX Wavelength :
2 x 1310nm
Laser :
DFB
Transmission :
40km
Temperature :
0 to 70°C
Description

1.244G Dual Channel BIDI CSFP Transceiver Module TX1490nm RX1310nm SMF 40km

Description

This 2-fiber Bi-directional compact SFP Transceiver Module is designed for two separate Gigabit Ethernet links, supports network systems, especially those deploying single-fiber bidirectional transceivers in high density applications.

It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C series bus specified in the MSA SFF-8472. The transmitter section uses a multiple quantum well 1490nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1310nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

The CSFP transceiver is fully compliant to compact Small Form-Factor Pluggable (CSFP) MSA option 2 and SFF-8472.

Specifications

Product Series 1G CSFP Transceiver P/N GCS-B4312-B4312-40C
Form Factory CSFP Type dual BiDi EX
Data Rate (Gbps) 2x 1.244G Lane Count 2x ( Tx/Rx )
Max Link 40km Connector LC/UPC duplex
TX Wavelength 2x 1490nm RX Wavelength 2x 1310nm
Power Voltage +3.3V (typical) Power Consumption ≤ 1.3W
Transmitter Part DFB Receiver Part PIN
TX Power -5 ~ 0dBm RX Sensitivity < -25dBm
Extinction Ratio > 9dB Overload > 0dBm
Optical-budget (dB) 20dB DOM/DDM Support
Temperature Operating: Commercial 0 to 70°C Warranty 36-month
Storage: -40°C to 85°C Weight 25gram
Compliance Gigabit Ethernet, MSA Compliant

Features

  • 2-Fiber Bi-Directional CSFP Optical Transceiver
  • Up to 1.244 Gbps Bi-directional Data Links
  • Compliant with CSFP MSA 2.0 (Option2)
  • IEEE802.3ah 100BASE-BX, 1000BASE-BX, SONET OC-3 / SDH STM-1, Compliant
  • Compliant with Digital Diagnostic Monitor Interface SFF-8472
  • Duplex LC Connector
  • 1490nm DFB laser and 1310nm PIN photodiode
  • Up to 40km on 9/125µm SMF
  • AC/AC Coupling according to MSA
  • Single +3.3 V Power Supply
  • RoHS Compliant
  • Class 1 Laser International Safety Standard IEC 60825 Compliant

Application

  • SONET/SDH Equipment Interconnect
  • Fast Ethernet
  • Switch to Switch interface
  • Point to Point FTTH Application
  • Other optical transmission systems
