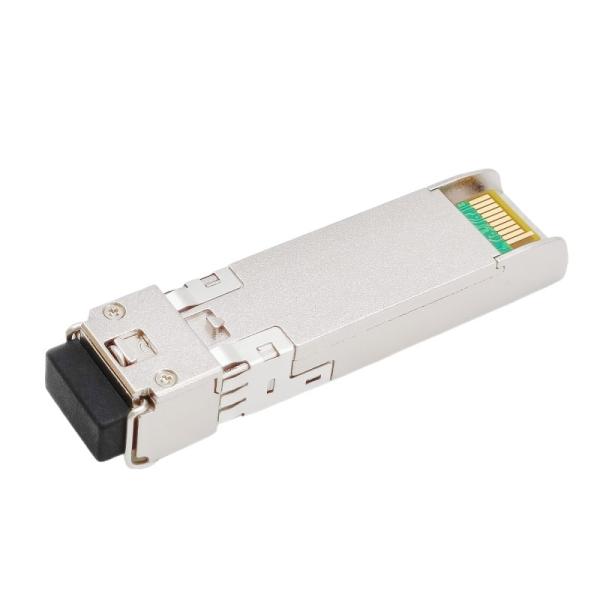

2.5Gbps CSFP Dual BIDI 20km TX1310 RX1490 Transceiver LC DOM

Description

The GCS-B3425-B3425-20C is compatible with the Compact Small Form- Factor Pluggable (CSFP) Multi-Source Agreement (MSA) option 2, provides 2.488Gbps and 20km transmission over single-mode fiber (SMF) using a wavelength of 1310nmTx/1490nmRx via an LC connector.It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C interface as specified in the MSA SFF-8472.

The transceiver consists of 2-channel bi-directional optical transceiver unit with five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, type of laser (the DFB laser) and the PIN photo-detector.

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access. Conventional SFP will function when plugged into a C-SFP socket, at the same time no damage to C-SFP and host board if C-SFP module is plugged into a conventional SFP socket

Specifications

Product Category 2.5G CSFP Transceiver P/N GCS-B3425-B3425-20C
Package Type CSFP Type Dual Fiber BIDI
Bit-Rate (Gbps) 2.488G/2.488G Lane Count 2x ( Tx/Rx )
Max Cable Length 20km Connector Dual LC
TX Wavelength 2x 1310nm RX Wavelength 2x 1490nm
Power Supply Voltage +3.3V (typical) Power Dissipation ≤ 1.8W
TX Type DFB RX Type PIN
TX Output Power -5 ~ 0dBm RX Sensitivity < -19dBm
Extinction Ratio > 9dB Saturation > 0dBm
Optical-budget (dB) 14dB Digital Diagnostic Build-in
Environment Operating: 0 to 70°C Warranty 36-month
Storage: -40°C to 85°C MTBF 1,000,000Hours
Compliance Gigabit Ethernet, MSA Compliant

Features

  • Dual Fiber Bi-Directional CSFP Optical Transceiver
  • Supports 2.488Gbps Bi-directional Data Links
  • 2xBi-directional transceivers in 1 SFP transceiver package
  • Compliant with CSFP MSA 2.0 (Option2)
  • Compliant with Digital Diagnostic Monitor Interface SFF-8472
  • Duplex LC Connector
  • 1310nm DFB laser and 1490nm PIN photodetector
  • Up to 20km on 9/125µm SMF
  • Single +3.3 V Power Supply
  • RoHS Compliant
  • Class 1 Laser International Safety Standard IEC 60825 Compliant

Application

  • SDH STM-16 and SONET OC-48 system
  • Fiber Channel
  • Switch to Switch interface
  • Point to Point FTTH Application
  • Other optical transmission systems

Electrical and Optical Characteristics

Parameter Symbol Min Typical Max Unit Notes
Transmitter
Centre Wavelength λc 1260 1310 1360 nm
Spectral Width (-20dB) σ 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Average Output Power Pout -5 0 dBm 1
Extinction Ratio ER 9 dB
Optical Rise/Fall Time (20%~80%) tr/tf 0.16 ns
Data Input Swing Differential VIN 400 1800 mV 2
Input Differential Impedance ZIN 90 100 110 Ω

TX Disable

 Disable 2.0 Vcc V
Enable 0 0.8 V

TX Fault

 Fault 2.0 Vcc V
Normal 0 0.8 V
Receiver
Centre Wavelength λc 1470 1510 nm
Receiver Sensitivity -19 dBm 3
Receiver Overload 0 dBm 3
LOS De-Assert LOSD -19 dBm
LOS Assert LOSA -30 dBm
LOS Hysteresis 1 4 dB
Data Output Swing Differential Vout 400 1800 mV 4

LOS

 High 2.0 Vcc V
Low 0.8 V

Notes:

1. The optical power is launched into SMF.

2. PECL input, internally AC-coupled and terminated.

3. Measured with a PRBS 223-1 test pattern @2488Mbps, BER ≤1×10-12.

4. Internally AC-coupled.

Product tags
