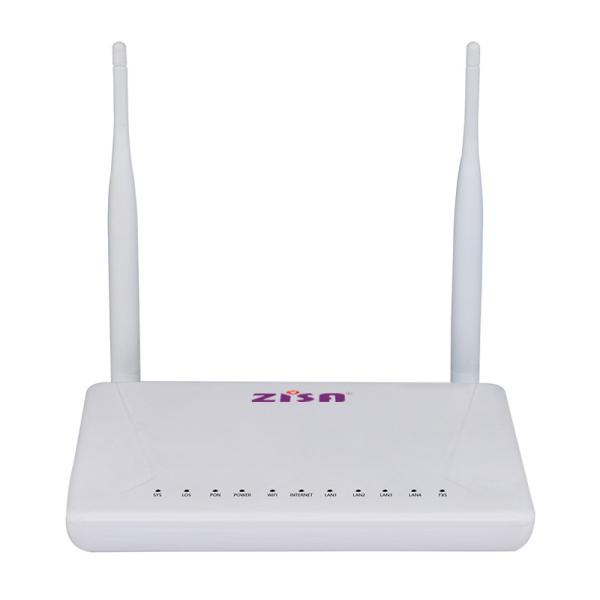

1GE 3FE WIFI VOIP GPON ONU 1GE GEPON ONU OP258WV White 4W 12V 1A
1GE 3FE WIFI VOIP GPON ONU 1GE GEPON ONU OP258WV White 4W 12V 1A
Specifications
Brand Name :
ZISA
Model Number :
OP258WV
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
34-38USD
Payment Terms :
T/T
Supply Ability :
10000PCS
Delivery Time :
5-8weeks
Packaging Details :
box 0.5kg
Name :
1GE+3FE+WIFI+VOIP Gpon ONU
OEM :
yes
Power consumption :
4W
Type :
ONU
Warranty :
1 YEAR
Power supply :
12V 1A
Weight :
0.2kg
Description

1GE+3FE WIFI+VOIP Onu 1GE GPON GEPON ONU With OP258WV White ONU

Product Specifications

Parameter Nominal
Connector style SC/PC
PON quantity 1
Fiber style Single mode
Wavelength

TX:1310 +/-20nm

RX:1490 +/-10nm
PON interface standard ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
PON interface receiving rate 2.488Gpbs
PON interface transmitting rate 1.244Gpbs
Output optical power Min: 0.5dBm Max: +5dBm
Opticalreceiver sensitivity Precede -29dBm
The length of the optical link Max 20km
Parameter Nominal
Dimension 180mm×148mm×30mm(L×W×H)
Net weight 0.25kg
Typical power consumption <7W
Noise None
Cooling style Naturally cooling
Power supply 12V DC(By external AC/DC adapter)
Installation style Support PC, wall mount or put inside of information box.
Environment -5~50℃
Atmospheric pressure 70~106Kpa
MTBF 50,000hours
MTTR 30minutes
Parameter Nominal

Software Feature Support on OP258WV

Standard IEEE 802.11b/g/n

WiFi

parameter

 Frequency 2.4~2.4835GHz
Transmission speed

2.4GHz Frequency:

IEEE 802.11b :11/5.5/2/1M(Auto)

IEEE 802.11g:54/48/36/24/18/12/9/6(Auto)

IEEE 802.11n:270/243/216/162/108/81/54/27Mbps,up to 300Mbps
Channel number 2.4GHz :13
Spread-spectrum Technique DSSS(Direct sequence spread spectrum)
Data Modulation DBPSK,DQPSK,CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM)

Sensitivity@PER

(Package error rate)

270M:-68dBm@10% PER；130M: -68dBm@10% PER；

108M:-68dBm@10% PER；54M:-68dBm@10% PER

11M:-85dBm@8% PER；6M:-88dBm@10% PER

1M:-90dBm@8% PER；
Transmission distance Indoor Maximum 120 meters；Outdoor Maximum 360 meters(The distance depends on the environment)
RF power 20dBm EIRP
Antenna 5dBi Antennas

Product Overview

OP258WV terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. The box is based on the mature Gigabit GPON technology, which have high ratio of performance to price, and the technology of 802.11 ac/n WiFi(2T2R) , Layer 2/3, and high quality VoIP as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom.

FAQ

Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.

Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
