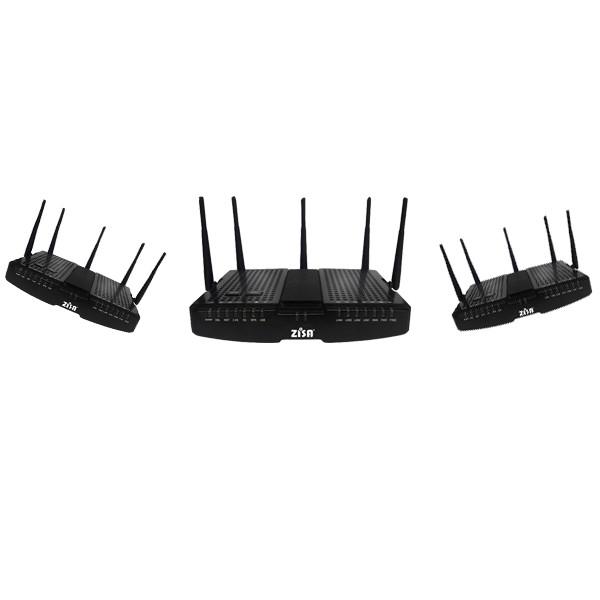

Dual Band Vdsl2 Modem 1600mbps 4 Lan 1 Wan Port Wireless Wifi Router
Dual Band Vdsl2 Modem 1600mbps 4 Lan 1 Wan Port Wireless Wifi Router
Specifications
Brand Name :
ZISA
Model Number :
V800VWL-AC
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
58-76USD
Payment Terms :
T/T
Supply Ability :
10000PCS
Delivery Time :
5-8weeks
Packaging Details :
box 1kg
Product name :
VDSL2 voip Router
Port :
1*DSL+1FXS+4LAN
WIFI :
802.11AC 1600M
OEM :
can do
Type :
VDSL2 voip MODEM
Power supply :
12V 2000mA
Chipset :
BCM63167+BCM43602
Description

Dual Band 1600Mbps 4 LAN 1 WAN Port Wireless WiFi VDSL 2+ Modem Router

Description

OTHERS
Operation System Windows 7,8,XP, VISTA/Macintosh/Linux
Package Content

Power Adapter x 1, InstallationManual x 1,RJ11 Cable x 1

RJ45 Cable x 1, External Splitter x 1
Environment

Operating Temperature: 0°C~40°C(32~104℉)

Storage Temperature: -30°C~60°C(-22~140℉)

Operating Humidity: 10%~95% non-condensing

Storage Humidity: 5%~90% non-condensing
Warranty One year
Dimension 9.65*7.17*2.36 in(245*182*60 mm)
Weight 500g

Features:

  • Dual WAN: One of the LAN ports can be configured as WAN port to make the Modem Router work as Wireless Router mode
  • WPS Button: Instant connection to wireless network safely
  • TR-069: Manage settings and updates remotely from any end equipment
  • Compatibility: Interoperable with all major DSLAM equipments
  • QOS: Quality of Service control for tra­ffic prioritization and bandwidth management
  • Simple set up with GUI: GUI makes installation easier and faster

Specifications

BASIC
IEEE Standards IEEE 802.3, 802.3u, 802.3ab
VDSL/VDSL2 Standards

ITU-TG.993.1(VDSL)

ITU-T G.993.2(VDSL2) (Profile 8a, 8b, 8c, 8d, 12a,12b,17a)
ADSL Standards

Full-rate ANSI T1.413 issue 2

ITU-T G.992.1 (G.dmt), supporting Annex A or B

ITU -TG.992.2 (G.lite), supporting Annex A or B
ADSL2 Standards

ITU-T G.992.3 (G. dmt.bis), supporting Annex A or B, Annex L and Annex M

ITU-T G.992.4 (G.lite.bis), supporting Annex A or B
ADSL2+ Standards ITU-T G.992.5,supporting Annex A or B, Annex L and Annex M
Speed

Downstream: up to 100Mbps;

Upstream: up to 50Mbps
Operation Modes VDSL/ADSL Modem, Wireless Router, 5 Ports Switch, VoIP Gateway
WAN Connection Types PPPoE, PPPoA, IPoE, Bridge, IPoA
WIRELESS
Wireless Standards IEEE 802.11b/g/n/ac
Frequency Range 2.4GHz, 5GHz
Wireless Speed

11n speed up to 300Mbps

11ac speed up to 1300Mbps
Wireless Security 64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES
Transmit Power <20dBm (EIRP)
Wireless Features

Multi-SSID

Access Control List

WDS ,WMM, WMF

Hide Access Point

Clients Isolation

Disable WMM Advertise

MAC filter
DSL Features

PTM and ATM mode including dual latency

Both Annex A and Annex B including dual latency

US0

Diagnostics mode/DELT

Bitswaps, SRA and SOS/ROC,Virtual Noise

FEXT equalized UPBO

Dying gasp

INM

PhyR and G.INP (framing type 1)

G.vector

FAQ

Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.

Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.

Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.

Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.

Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.

Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
