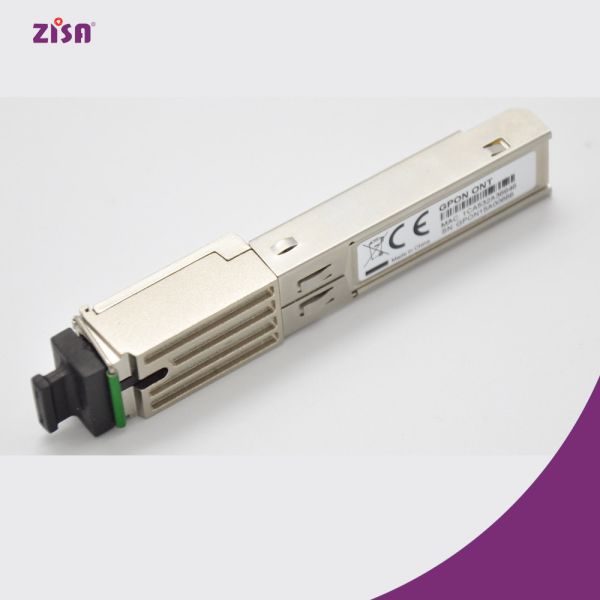

ZISA OP151S 1GE GPON SFU SFP stick module Gpon splitter FTTH solution

Description

The OP151S SFP GPON ONU stick module has been designed for FTTx applications. OP151S is an GPON ONU device designed with the ITU-T G984 standard . It is a cost-effective GPON customer premise system and can provide 1244Mbps upstream / 2488Mbps downstream Broad-band services by connecting subscriber’s switches or routers. As compared to other broadband access technologies such as xDSL and cable modem, Passive Optical Network (PON) technology offers some competitive advantages, including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, greater distance support between equipment nodes, and most importantly, much greater bandwidth. Well satisfying the high speed access demand, GPON has a more prosperous perspective.

OP151S provides the core functionality of an ITU-T G984.5 GPON Optical Network Terminal (ONT) . In addition, the device also offers some advanced functions such as DBA,AES, FEC, PLOAM,OMCI. A powerful Network Processor is provided to allow for traffic prioritiza-tion, local address filtering, and statistics gathering. A dedicated processor provides management control and responds to in-band OAM commands and Host Interface messages for configuration and statistics gathering. By means of configuring personal variables accordingly, the customer can get a device that will fit various application very well.

Specifications

• Single fiber Bi-directional with 2488Mb/s Downstream.
• Single fiber Bi-directional with 1244Mb/s Upstream
• 1310nm DFB Burst Mode Laser
• 1490nm CW Mode Receiver
• Optical link measurement and diagnosis
• Downstream AES decryption
• Highly flexible 802.1Q VLAN support
• Single 3.3V DC supply
• SFP Package Outline
• Single Fiber, Full Duplex Operation
• SC/UPC or SC/APC Optical Connector
• 2X10 Electrical SFP Connector
• Operating Temperature Range:

Industrial : -40 to 85 ºC

Commercial : 0 to 70 ℃

• Power Consumption ＜ 2w
• RoHs Compliance
• Supporting 1000BASE-X/2500BASE-X /SGMII/HSGMII interface

Performance

Application

• Home Gateway
• Network switch,router and MDU

Providing pluggable GPON ONU function for Ethernet Switch, Router, Home gateway & other customer premises equipment

FAQ

Q1. ZISA product the quality of products.
A: As the top class total solution provider and productive service provider, we provide high quality of service to Tier1 Telco customer and Vendors. With the genius design and software customization expertise, we can leverage the best service to our customers. ZISA Product quality is same as Huawei and ZTE, and ZISA has complete product line.
Flexible , Smart and selective producing system, the top manufacture in vertical career choose our team, with decade of global market and professional experience.

Q2. ZISA after-sales service.
A:ZISA has complete software and hardware research and development. Provide reqiurment development, bug modify and 24h on-line support. For significant customers, ZISA can send technician to support.
Q3. Ways of cooperation with ZISA.
A :ZISA welcome integrator or agent to agent ZISA product. If agent has enough advantages in the market, ZISA appoint you ZISA sole agent.
Q4. About factory visit.
A :ZISA welcome significant customers to visit ZISA factory. Please make an appointment in two weeks.
Q5. About product pricing.
A :ZISA only publish sample price. The price of different agent and OEM customer is secret. ZISA gives specific price for significant projects and customers. Besides, ZISA only provide goods to agent in agent area.
