Product Description:

The product is designed for various fields such as base station, power, communication positioning field, and area measurement, distance measurement, and surveying products. Additionally, it is suitable for positioning and measurement in complex environments and high-speed motion scenarios such as intelligent Internet of Things, intelligent driving, drones, and other fields.

• Supports BDS B1I/B2a/B1C, GPS L1C/A/L5, GAL E1/E5a, GLONASS L1 four-system dual frequency
• Built-in dual-frequency RTK algorithm
• Ultra-high precision, can achieve centimeter-level positioning
• Low cost, low power consumption
• Fast positioning

With the ability to support four-system dual frequency, the product provides precise positioning and measurement in complex environments. The built-in dual-frequency RTK algorithm ensures high accuracy positioning up to centimeter-level. Additionally, the product is low-cost and low power consumption, which makes it more efficient and economical for consumers. Furthermore, the fast positioning feature allows for quick and accurate results in time-sensitive scenarios.

Features:

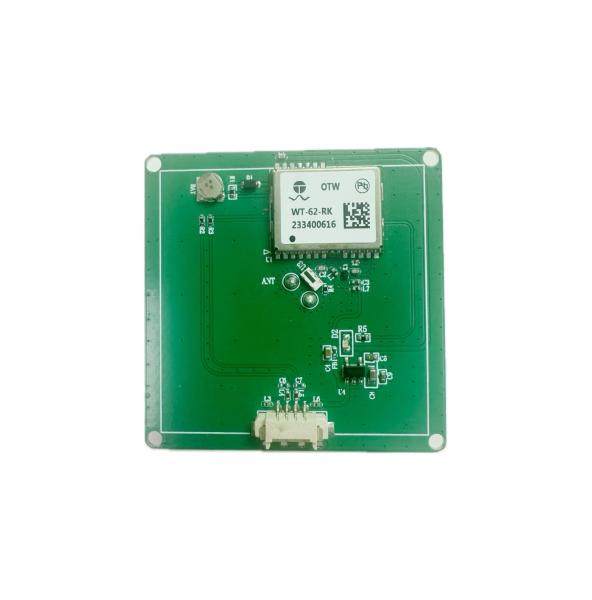

• Product Name: GPS Module Development board
• Algorithm: Integrated Dual Frequency RTK Algorithm
• Humidity range: 5% To 95% Non-condensing
• Available baud rate: 4800bps~921600bps(default 115200bps)
• Receiver type: BDS:B1I/B1C & B2a GPS/QZSS:L1C/A & L5 GLONASS:L1 Galileo:E1 & E5a
• Voltage: 3.6V~6.0V(typical 5V)
• Description: GNSS/GPS Receiver Evaluation Board with SM A USB
• Type: Development board

Technical Parameters:

GNSS/GPS Receiver Evaluation Board with SM A USB, development board, development board

Applications:

The OTW WT-45-62-RK development board is a versatile and powerful tool for hardware developers and makers. It is designed and manufactured in China with a minimum order quantity of just 1 piece and a price of USD 28.38 per piece. The packaging details include a paper box and the delivery time is between 5-8 working days.

The OTW development board is equipped with a GPS module development board, which makes it an ideal choice for a wide range of applications. Here are some of the product application occasions and scenarios:

The GPS module on the development board makes it an ideal choice for location-based services. Whether you're developing a tracking device or a navigation system, the OTW development board can help you get started quickly and easily.

The OTW development board can be used to control and monitor robots. Its small size and powerful capabilities make it an ideal choice for robotics projects of all sizes.

The OTW development board can be used to connect devices to the internet, making it an ideal choice for Internet of Things (IoT) projects. Whether you're developing a smart home device or a wearable, the OTW development board can help you get started quickly and easily.

The OTW development board is a great choice for developing embedded systems. Its small size and powerful capabilities make it an ideal choice for a wide range of applications, including medical devices, industrial automation, and more.

The OTW development board has a supply ability of 10000 pcs/day and a humidity range of 5% to 95% non-condensing. Its size is 43.11mm * 43.1mm * 8.2mm and it has a maximum speed of 515 M/s. The voltage range is 3.6V~6.0V (typical 5V).

Payment terms for the OTW development board include T/T, AliPay, and PayPal. Whether you're a professional developer or a hobbyist, the OTW development board is a powerful and versatile tool that can help you bring your ideas to life.
