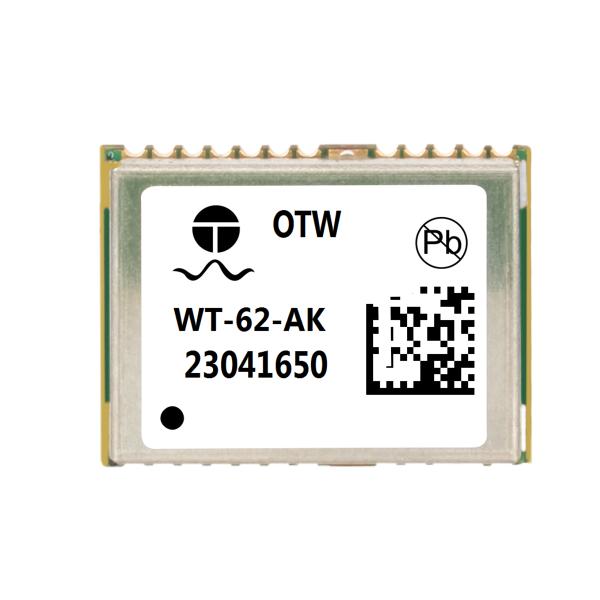

WT-62-AK Small Size GPS Module For Portable Devices Like Mobile Phones
WT-62-AK Small Size GPS Module For Portable Devices Like Mobile Phones
Specifications
Brand Name :
OTW
Model Number :
WT-62-AK
Place of Origin :
China
MOQ :
10pcs
Price :
NA
Payment Terms :
T/T, Western Union
Supply Ability :
Above US$100 Million
Delivery Time :
7-10working days after receiving the payment
Type :
GNSS Module
Country of Origin :
CHINA
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Voltage :
1.8V to 3.6V
Power consumption :
23 mA , @3.3V
Size :
12.2mm*16mm*2.4mm
Description

WT-62-AK Small Size GPS Module for Portable Devices like Mobile Phones

Product descriptions from the supplier

Overview

WT-62-AK Small Size GPS Module For Portable Devices Like Mobile Phones
Application:
● Vehicle and ship positioning and navigation
● Time Service
● Wearable devices
● Mobile phones, tablets and other portable devices
WT-62-AK Small Size GPS Module For Portable Devices Like Mobile Phones
Features:
● Support BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning.
● With antenna detection circuit and short circuit protection
● Low power consumption, high sensitivity

Bottom view
Module pin allocation
Module performance
Model WT-62-AK
Receiver type

BDS:B1I+B1C
GPS/QZSS/SBAS:L1C/A
GALILEO:E1
GLONASS:L1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps(default 9600bps)
Channel 56
Sensitivity Tracking: -162dbm Capture: -160dbm Cold start -148dbm
Cold start Average 29seconds
Hot start Average 1 seconds
Accuracy Horizontal Position : average, SBAS < 2.5m
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -10 Hz
Positioning mode A-GNSS
Port
Port

2 URAT
1 I2C
2 SPI
Physical property
Type 24 pin stamp holes
Size 16.0mm*12.2mm*2.4mm(+/- 0.5mm)
Power supply
Voltage 1.8V~3.6V
Power Consume

Maximum performance: Capture :23mA, tracking (power saving mode /1HZ) : 5mA
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
