Specifications
Brand Name :
TBIT
Model Number :
WD-100
Certification :
CE, Rohs, CCC, ISO9001
Place of Origin :
China
MOQ :
20pcs
Price :
negotiate
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
30000pcs/Month
Delivery Time :
3-7 days after payment done
Packaging Details :
Carton size: 49*27*19CM 20pcs/ Carton
Type :
GPS Tracker device
Model :
WD - 100
Vehicle :
Car / motorcycle / electric motorcycle and so on
Platform :
Web and Mobile
Application :
Android and IOS
Waterproof :
Yes
Install :
Easy
Function :
Multiple alarms / ACC detection / Oil cut
Description

4G LTE Easy Installation GPS Tracker With Multiple Functional Platform

Summary:


TBIT WD-100 is a 4G-LTE GPS/GNSS combined tracking device with ACC detection and Oil cut-off function for car and motorcycles.

The position service can be run on the mobile APP and has same functions as webbed system to make customer using. Through platform, the user could know the vehicle’s speed data record, over-speed record, mileage statistics. These history date will keep in 90 days. Also, Geo-fence could be setting in platform. If the movement across the border of Geo-fence, the webbed platform and mobile APP will receive the alarm.

As a professional security and positioning company, we offer personalized customization.


Functions:

  • 4G LET wireless network

  • GPS+GSM
  • History data record
  • Geo-fence setting and alarm
  • Web and mobile platform
  • Waterproof
  • Oil cut-off
  • Easy installation
  • Vehicle’s speed data record
  • Over-speed record


More Details:

  1. Accurate location: high level of receive sensitivity and very short time for positioning. Assisted GPS to short cold-start in 35 seconds
  2. Dual mode coverage: GPS and LBS based on mobile wireless network support seamless coverage of positioning in special area such as indoor, channel and basement
  3. Backup battery: Standby in 8-12 hours in full-load mode, and 5 days in normal situation
  4. Tracking method: There are three way for tracking, PC platform, mobile APP both IOS and Android, you can click this link to choose any one by yourself http://www.gpssky.net/

Dimension 78.5*52*20mm Weight Net: 57g, Gross: 176g
Working voltage 9-85V Power consumption 30-35 mA working mode and 3-5mA sleepmode

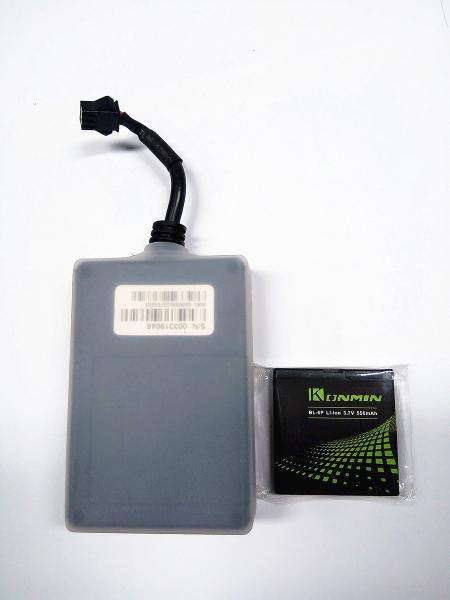

Battery 550 mAh/3.7 V rechargeable and replaceable lithium-ion battery Operating temperature -20°C to 65°C
Humidity 5%–95% Standby time 4-6 days hours in power-saving mode and 8-10 hours in tracking mode
LED indicator 3 indicators showing power, GSM, SIMCARD and GPS status Other Functions Acc detective oil cut-off
GPS Support AGPS Positioning accuracy 5m
Sensor 3D acceleration sensor GSM frequency band 4GLTE B1/B3/B5/B7/B8/B20@FDD LTE B38/B40/B41@TDD LTE B1/B5/B8@WCDMA B3/B8@GSM


Our service:

-- Direct factory and strong R&D team
-- Over 10 years specialize in gps tracker
-- Support Android/ IOS APP
-- Certificate:CE, ROHS, CTA, CCC
-- Support multi languages customized

Platform service:

-- Platform fee is free all life
-- Vehicle Monitoring, Safety Tracking and management
-- Agency Management center
-- Open API to integrate your server or platform
Equipped with ACC detection and oil cut-off easy-to-use GPS tracking system, you can implement real-time tracking anywhere through a mobile phone or laptop.

FAQ:


Q: What is the minimum order quantity?
A: No limit, standard 20pcs/ctn, better to fill up one full carton, also accept sample order. For OEM, with your logo and platform, MOQ 2000pcs.


Q: What is the guarantee of the device?
A: We supply one year warranty.


Q: What payment method do you accept?
A: T/T, L/C, Western Union ect.


Q: How will you deliver goods to me?
A: We always send sample order by Express, ship mass order by Air, Sea, Express, according to clients’choice.


Q: Sometimes location is not accuracy?
A: There are two way location, GPS outdoor, more accuracy, LBS indoor, less accuracy, since LBS bases station location, location accuracy is involved in satellite signals and network intensity.


Q: How about the lead time?
A: Standard sample always in stock, 3-5 working days for regular order less than 2000pcs, 10-15 working days for mass production order(based on different quantity.
