Pre-Sell 4G-LTE Network IOT For The Sharing E-Bike and Scooter With Real-Time Tracking
Pre-Sell 4G-LTE Network IOT For The Sharing E-Bike and Scooter With Real-Time Tracking
Pre-Sell 4G-LTE Network IOT For The Sharing E-Bike and Scooter With Real-Time Tracking
Pre-Sell 4G-LTE Network IOT For The Sharing E-Bike and Scooter With Real-Time Tracking
Specifications
Brand Name :
TBIT
Model Number :
WD-215
Certification :
CE, Rohs, CCC, ISO9001
Place of Origin :
China
MOQ :
20pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs/Month
Delivery Time :
3-7 days after payment done
Size :
(111.3±0.15)mm × (66.8±0.15)mm × (25.9±0.15)mm
Material :
PC+ABS
Working voltage :
DC12V-72V
Waterproof level :
IP67
Tracking sensitivity :
< -162dBm
AGPS :
Support
Accuracy :
0.3m/s
Description

Pre-Sell 4G-LTE Network IOT For The Sharing E-Bike&Scooter With Real-Time Tracking

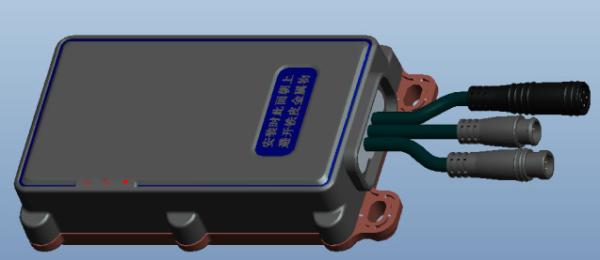

WD-105 is one of the lastest products of TBIT in 2020. It is a IOT for the e-bike&scooter sharing. The terminal is equipped with 4G-LTE network remote control, GPS real-time positioning, Bluetooth communication, vibration detection, anti-theft alarm and other functions.

Through 4G-LTE and Bluetooth, the IOT interacts with the background and mobile APP respectively to complete the vehicle control and upload the real-time status of the vehicle to the server.

Parameters:
Size
(111.3±0.15)mm × (66.8±0.15)mm × (25.9±0.15)mm
Working voltage
DC12V-72V
Backup battery
2000mAh
Waterproof
IP67
Material
PC+ABS
Working temperature
-20 ℃ ～ +65 ℃
Humidity
20 ～ 95%
SIMCARD
Micro-SIM


Bluetooth:

BLE version
BLE4.1
Sensitivity
-90dBm
Maximum receiving distance
≤30m, Open area
Inside E-bike
10-20 meters, depending on the installation environment


Network Frequency:

Frequency
LTE-FDD/LTE-TDD/WCDMA/GSM
Maximum Power
LTE-FDD/LTE-TDD:23dBm; WCDMA:24dBm;EGSM900:33dBm;DCS1800:30dBm
LBS
Support, positioning accuracy of 200 meters (related to base station density)


GPS:

Tracking sensitivity
< -162dBm
Start time
Cold start:35S, Hot start: 2S
Positioning accuracy
10M
Speed accuracy
0.3m/s
AGPS
Support


Indicators:

Pre-Sell 4G-LTE Network IOT For The Sharing E-Bike and Scooter With Real-Time Tracking

Pre-Sell 4G-LTE Network IOT For The Sharing E-Bike and Scooter With Real-Time Tracking
