Cuttable GPS Fuel Sensor for Truck Fuel Monitoring And All The Vehicles
Cuttable GPS Fuel Sensor for Truck Fuel Monitoring And All The Vehicles
Cuttable GPS Fuel Sensor for Truck Fuel Monitoring And All The Vehicles
Cuttable GPS Fuel Sensor for Truck Fuel Monitoring And All The Vehicles
Cuttable GPS Fuel Sensor for Truck Fuel Monitoring And All The Vehicles
Cuttable GPS Fuel Sensor for Truck Fuel Monitoring And All The Vehicles
Specifications
Brand Name :
caxtrack
Model Number :
CA-F2
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Product Name :
Fuel Sensor GPS Tracker
Application :
mixer truck
Work Voltage :
9-36V
Weight :
0.3kg
shell :
Protective
15CM cable tie :
Used to fix the extention wire
1.2M cable tie :
Used to fix the probe
Abrasive paper :
Used to clean the bottom of the tank
Working Temperature :
-30℃~+75℃
Measurement accuracy :
±0.5%;
Maximum power consumption :
0.4W/12VDC
Measurement resolution :
0.1mm
Probe explosion-proof grade :
Exia Ⅱ CT6 / Exd Ⅱ CT5
Inbreaking Protection :
IP66
Liquid level value unit :
Millimeter
Peripheral interface :
RS232 / RS485 / Analog transmission
Working humidity :
5%~90%.
Description

Cuttable Fuel Level Sensor for Truck Fuel Monitoring And All The Vehicles

Product Description

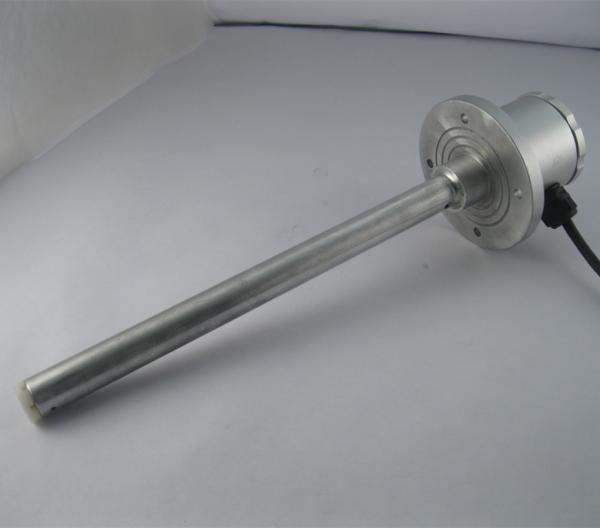

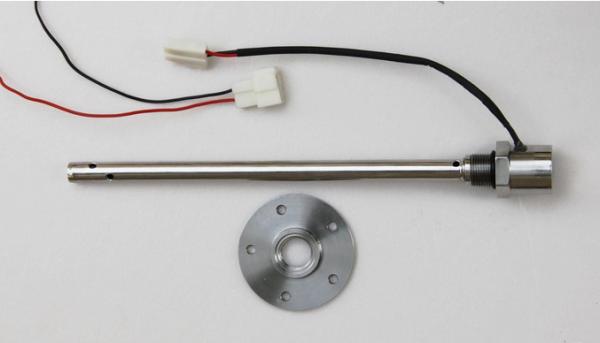

Capacitive Fuel Level Sensor
Cuttable GPS Fuel Sensor for Truck Fuel Monitoring And All The Vehicles
Introduction
Fuel and Oil level sensor Traclogis TL800 is intended for precision fuel and oil level measurement in containers and fuel tanks of vehicles, road tanker monitoring systems, fuel storages, generators, GSM station etc, with capacitive technology and unique assembly, which enable convenient operation in harsh environments steadily.

The sensor can be integrated with any professional control units and equipment of GPS tracking.


Features


Simple Installation
With the unique installation technology of Traclogis, the sensor can be mounted with one hole drilled, which will save more time for the installation compared with the traditional fuel level sensor.

Multi-signal Outputs
Voltage Signal Output:(0-5v)
Digital Signal Output: RS232
Digital Signal Output: RS485

High Precision Measurement
High resolution of the sensor(1 mm)

Can Be Truncated
Probe can be cut down in the filed to suit for proper height of the tank

Key Features:
Accuracy: 0.5%
Resolution: 1mm
Output Signal: Voltage, Current, RS232, RS485
Output Voltage: 0- 5V
Output Current: 4- 20mA
Size: 10- 1500cm
Easy Installation
Easy Calibration

Parameters

Index Parameter
Acquisition Principle Capacitive
Power Input 5-70V
Power Consumption 0.13W/5V,0.19W/12V,0.38W/24V
Accuracy Resolution: <1mm, Accuracy: <0.5%
Communication Interface RS-232, RS-485, CAN (Customizable)
Baud Rate 2400,4800,9600,57600,115200 (or customized by users)
Output Voltage : 0-5V, Current: 4-20mA
Measuring Range 10CM-150CM
Protection Grade IP67
Housing Material Aluminum alloy
Operating Temperature -40°C ~~+85°C
Storage Temperature -40°C ~~+105°C
Weight 400g (500mm)
Size 550mm, 750mm, 1000mm (Customizable)



Application

With years of research of real-time remote fuel-level monitoring solution, Traclogis accumulated rich experience in the field of fuel monitoring field, A real-time remote fuel-level monitoring solution is an option for managers who need to know exactly when and where fuel losses are occurring.

In addition to notification of a sudden change in fuel-level, a well-designed remote monitoring solution is able to provide other valuable information, such as how much fuel is lost, as well as the fuel cost management with driver's behavior, which will make fleet managers to save more cost and manage the fleet efficiently.


Benefits

increase vehicle or special machinery effectiveness;
minimize non-productive expenses;
supervise fuel usage;
optimize drivers working effectiveness
prevent (or minimize) fuel theft;


APPLICATION:

The ultrasonic fuel level sensor is used for digital recording vehicle refueling, to prevent driver stealing oil , avoid the waste of resources, improve operational efficiency, and improve the traffic safety, strengthen the operation and management level.

This sensor is applicable to various types of vehicles such as trailers, taxis, buses, concrete mixer truck, engineering machinery, sanitation trucks and other.

Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not be returned.

Product Configuration:

1. Standard configuration

1) main device 1 pcs

2) power line 1 pcs

3) sensor

5) Installation cables 1 set

6) Usage instructions

7) Warranty card
