Mini GPS Tracker Device Support Movement Alert And Power Off Alert
Mini GPS Tracker Device Support Movement Alert And Power Off Alert
Mini GPS Tracker Device Support Movement Alert And Power Off Alert
Mini GPS Tracker Device Support Movement Alert And Power Off Alert
Specifications
Brand Name :
caxtrack
Model Number :
CA-V2F
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Product Name :
GPS Tracker Device
Functions1 :
DC12V Or 24V Relay
Functions2 :
Power Off Alert
Working currency :
20mA / 12V
GSM Chip :
MTK
Application :
Car Motorcycle E - Bike
Work Voltage :
DC9V To 60V
Weight :
0.045kg
Power Off Alarm :
Yes
Geo Fence Alarm :
Yes
Network :
GPRS GSM 2G
Dim :
90*45*10mm
Description

Mini GPS Tracker Device Support Movement Alert And Power Off Alert

Performance Parameters:

Content

Specs.
Production Name GPS Tracker Device

Functions1

 DC12V Or 24V Relay

Functions2

Remote Cut Off Engine

GSM Chip

MTK Chip

Band

850/900/1800/1900Mhz

GPS chip

MTK

GPS sensitivity

-159dBm

GPS accuracy

5-30m

voltage input

Power : DC9.5－60V

Working currency

20mA/12V

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

20%--80% RH
Weight 0.045KG
Network GPRS GPS 2G GSM
Dim. 90*45*10mm


Features:

GSM Quad-band frequency (Global use);

Wide input voltage range: DC12-60V;

External Microphone, used in voice monitoring case (Optional);

Build-in vibration sensor and Vibration alarm, Smart Anti-theft function;

Support OBD easy installation (Optional)need one OBD Line;

External SOS button, used in immergence case use;

External Relay, used to cut off engine power or oil remotely via DC12V Relay;

ACC ignition detection, vehicle status notification;

Build-in back-up battery, support illegal main power cut-off alarms (Optional);

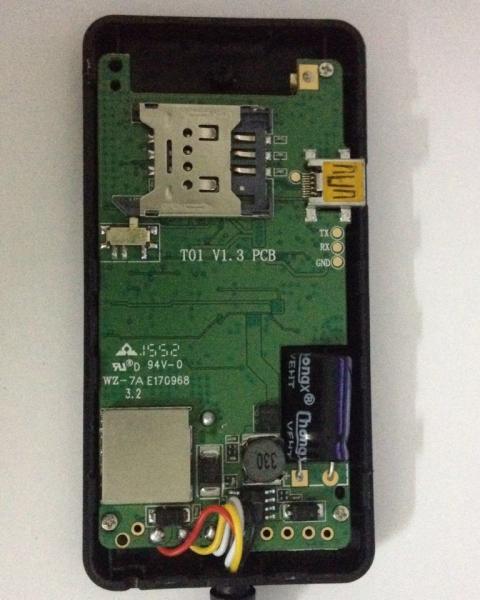

Picture:

Mini GPS Tracker Device Support Movement Alert And Power Off Alert

1. Red LED (Power status indication)

LED Status Indication
Quick flashing, On 0.1s, off 0.1s Low power warming
Constantly on Charging
Slow flashing, On 0.1s, off 2s Battery Charged/Working Normal
Constantly off Voltage too low/ Shut down

2. Yellow LED (GSM status indication)

LED Status Indication
Slow flashing, On 15s GSM initialization
Quick flashing, On 0.1s,off 2s GSM signal normal
Constantly on GSM calls/GPRS start
Constantly off No GSM signal received

3. Blue LED (GPS status indication)

LED Status Indication
Flashing, On 0.1s, off 0.1s GPS normal
Constantly on GPS signal searching
Constantly off GPS shut down

Applications :

4S shop , car company , truck company , motorcycle company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .

Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not be returned.

Product Configuration:

1. Standard configuration

  1. Mini CA-V2F Device
  2. Power cable With fuse
  3. Manual

2. Optional accessories

1. Relay DC 12V

2. Li-Battery(Built-in)
