Capacitor Fuel Sensor For GPS Tracker Or Mobile DVR And Detect Fuel Level

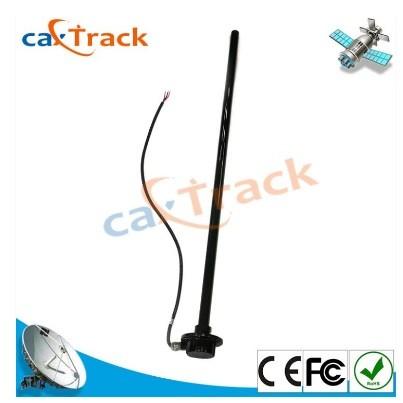

CLS2-700 Capacitor motor oil level combined capacitor sensor and liquid level sensor. The product not

only contain the features of high precision measurement and maintenance free. At the same time it doesn't

influenced by temperature and medium. It can be automatically measuring error caused by different

temperature or medium for precise compensation, achieving the purpose of accurate measurement.

The equipment can be used cooperatively with GPS Vehicle positioning terminal and other terminal to make

vehicle positioning and fuel consumption management system. It can evaluate the usage of the vehicle

and the driver's driving level, monitor gas up situation of vehicle, presise calculate hundred kilometers fuel

consumption, completely eradicate the phenomenon of oil stolen, oil spilling, detouring, make extra money,

Private use of government vehicles, falsely making receive.

CLS2-700 Fuel Sensor Parameters:

1. Voltage supply: DC7 to DC42V

2. Heat-resistant: -40 to 150

3. Resolution ratio: 0.1%

4. Measuring accuracy: 0.1%

5. Examination area: 100 to 1000mm

6. Output signal: 4 to 20mA, 0 to 5V

7. Fixed type: Screw installation M20X1.5 Or Flange mounting

8. Pressure range: -0.1MPa to 0.1MPa

9. Ambient temperature: -40 to 85 degrees

CLS2-700 Fuel Sensor Instruction:

0 to 5V output [CLS2 - 700A]:

1. Black line : connect to GND

2. Red Line: connect to Positive power

3. White line: 0 to 5V voltage signal output, connect voltage signal wire

4. Yellow line: empty fuel tank use only

5. Green line: full fuel tank use only

4 to 20mA output [CLS2-700B]:

Black line : connect to GND

Red Line: connect to Positive power

White Line: 4 to 20mA ampere signal output, connect to ampere signal line

Yellow Line: empty fuel tank use only

Green Line: Full fuel tank use only

Fuel Sensor Application:

1. Truck:

2. Car

Remark:

1. 4 to 20mA output supply voltage DC20 to 28V, current is 4 to 20mA except communication output.

2. Check the tank oil level is float or not, if become regular after recharge, check the interference and the

Power.

3. It usually can be functional while executing the 2.2.2 process

4. It usually occur on 0 to 5V signal.
