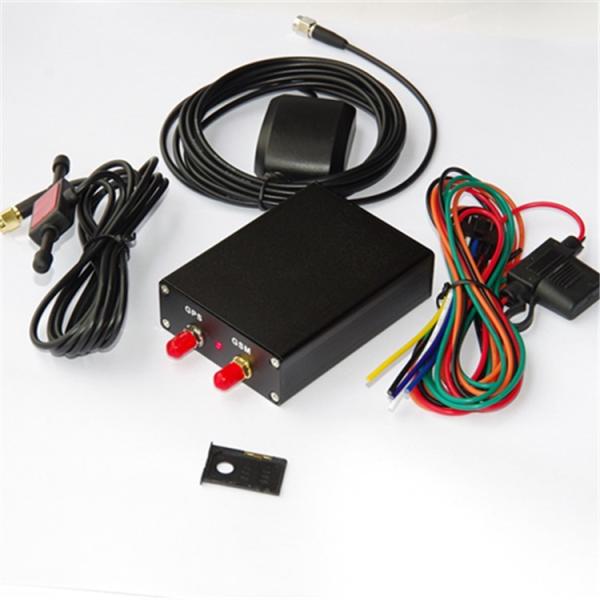

High Accuracy External GPS 3G Tracker WCDMA Network GPS Tracker Device

Description:

3G GPS Tracker is one external GPS antenna Tracker Device with WCDMA or CDMA2000 3G Module And

Ublox GPS Module. And it can be used in any countries. The input voltage range is DC9V to 100V.

It supports control engine on or off and mileage statistics. 3G GPS Tracker contains 450mAh built in

rechargeable Li-ion battery. It also has some optional functions for example: SOS Alarm,

Voice monitoring,temperature sensor and fuel sensor.

Specification:

Product Type: 3G GPS Tracker

Antenna: External GPS GSM Antenna

Module: Seperate 3G And GPS Module

Model Name: CA-V1-3G

Size: 87*57*25mm

Shell: Black or White Metal

Location Accuracy: Less than 5 meters

Wide Input voltage: DC9V to 40V

Weight: 230g

Main Features descriptions:

1. Real time track the location, when the igniton is on, the GPS Antenna receives GPS Signal and upload

the GPS Data to server via 3G module network. Then user can track the real time position.

2. Control engine on or off, 3G GPS Tracker device supports 12V and 24V relay. User can install it as below

then you can control engine on or off.

3. SOS alarm function, when you install the SOS Button for more than three seconds, the SOS message

will upload to server and send alart SMS Message to adminstrator's mobile phone number.

4. Voice monitoring, when customers open voice monitoring function, the administrator can dial the SIM

number of the 3G GPS Tracker device. then you can listen the voice around the device.

5. Temperature sensor and fuel sensor are the optional functions.

Installation:

Generally 3G GPS Tracker with four lines power cables, Red and black color lines are for power

Supply lines. Yellow line is for relay and green line is for igntion line of vehicle.

And there are two LEDs, blue LED is for GPS signal and red LED is for 3G signal status.

the best place you can install:

3G GPS Tracker Certificate:

GPS Tracker 3G device applications:

3G GPS Tracker Production Line:

FAQ:

Question 1: Can i pay it via paypal?

Answer: Of course ,but there will be 7% transfer fee.

Question 2: Can i check your demo account ?

Answer: Yes, our platform website is www.zcbgps.com, and the demo is test06, password is

123456, if you have any questions, you can contact me. my skype is gpstrackerzhao
