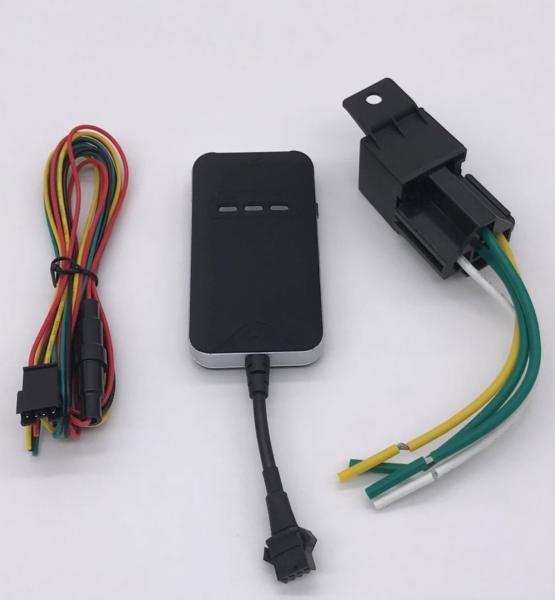

4 Wires Car GPS Tracker G17H Support ACC Ignition Checking And Relay

1. Specification:

• Start Bit

For details see Data Packet Format section 4.1.

• Packet Length

For details see Data Packet Format section 4.2.

• Protocol Number

For details see Data Packet Format section 4.3.

• Date Time

Example: 2010-03-23 15:30:23

Calculated as follows: 10(Decimal)=0A(Hexadecimal)

3 (Decimal)=03(Hexadecimal)

23(Decimal)=17(Hexadecimal)

15(Decimal)=0F(Hexadecimal)

50(Decimal)=32(Hexadecimal)

23(Decimal)=17(Hexadecimal)

Then the value is: 0x0A 0x03 0x17 0x0F 0x32 0x17

• Length of GPS information, quantity of positioning satellites

The field is 1 Byte displayed by two hex digits, wherein the first one is for the length of GPS information and the second one for the number of the satellites join in positioning.

Example: if the value is 0xCB, it means the length of GPS information is 12 and the number of the positioning satellites is 11.

(C = 12Bit Lenght ,B = 11 satellites)

• Latitude

Four bytes are consumed, defining the latitude value of location data. The range of the value is 0-162000000, indicating a range of 0°-90°. The conversion method thereof is as follow:

converting the value of latitude and longitude output by GPS module into a decimal based on minute; multiplying the converted decimal by 30000; and converting the multiplied result into hexadecimal.

Example: 22º32.7658’=(22X60+32.7658)X30000=40582974, then converted into a hexadecimal number

40582974(Decimal)= 26B3F3E(Hexadecimal)

at last the value is 0x02 0x6B 0x3F 0x3E.

Applications:

1. Bus/Police Car/Taxi
2. Container/cargo/asset tracking

4 Wires Car GPS Tracker G17H Support ACC Ignition Checking And Relay

Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.


Product Configuration:

1. Standard configuration

1) Portable GPS Device 1 pcs
2) Power lines 1 pcs
