Mini Motorcycle GPS Tracker Device for Fleet Management System , Truck GPS GSM Tracker
Mini Motorcycle GPS Tracker Device for Fleet Management System , Truck GPS GSM Tracker
Mini Motorcycle GPS Tracker Device for Fleet Management System , Truck GPS GSM Tracker
Mini Motorcycle GPS Tracker Device for Fleet Management System , Truck GPS GSM Tracker
Specifications
Brand Name :
CAX
Model Number :
CA-V2C
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
100000 PCS Per month
Delivery Time :
1-10 work days
Packaging Details :
Packed in carton firstly
Model Name :
GPS Tracker Device
Function1 :
Fleet Management System
Application :
Motorbike Truck Rental Car
Function2 :
Power Saving Mode
Network :
GPRS GSM GPS
Band :
850MHz/900MHz/1800MHz/1900MHz
Color :
Black
Weight :
34g
Size :
6.7*3.38*1.15cm
Function3 :
Remote control engine
Tracking Way :
APP Or PC Client
Description


Mini Motorcycle GPS Tracker Device for Fleet Management System , Truck GPS GSM Tracker

Main Functions:

NO.Function
1Real time Tracking
2ACC Status Display/Mileage statistics
3Remote Control Oil/Circuit on or off via relay
4History Track Report


Feature Description:

NO.FeatureDescrption
1GPS PositioningYou can track your car and check the speed,routes,acc status and detailed position and so on through your mobile phone or computer.
2Playback Routesyou can check your car's history routes , speed and so on in recent 3 months.
3Setting Function Via SMS Our device supports sms functions. so you can set many commands via sms.
4Ignition Detection this device can detect your car's ignition status and display on our platform.
5Vibration Alarmthis unit have vibration sensor.
6Overspeed Alarm this gps tracker device supports overspeed alarm function when the speed is more than value you set. it will alert.
7Cut Off Engineyou need to connect the yellow line to one relay. then we can control the engine on or off via sms command or send command via platform( For safety considering, it will not cut engine while speed is above 20km/h)
8Built-in AntennaBuilt-in high tech of GPS/GSM antenna for easy installation.


Application:
1. Fleet management
2. Motorbike Truck
3. Rental Car Company
4. Taxi Company
5. Insurance company

Parameters:

Dimension67(L) x 33.8(W) x 11.5(H) mm
Weight31g
GPRSClass12,TCP/IP
GPS Sensitivity-159dBm
GSM Frequency850/900/1800/1900Mhz
Operation Voltage9-100VDC
Position Accuracy10m
GSM/GPS AntennaBuilt-in Design
Data TransmitTCP,SMS
Non-movement DetectionMovement Alert based on built-in 3D
Mileage ReportTrack by time/distance interval power off



LED:

GPS LED Green( Flashing stands for GPS IS OK)
GSM LED Blue( Flashing stands for GSM Signal is ok)
Power LED Red (Flashing stands for unit works with built-in battery



Steps of installation:

1. Open the back cover,insert a SIM card to SIM Card Slot.
2. Switch power button up(Power on).
3. Connect the power cable with the interface of device. Now theree LED lights will lighting. Make sure the
receiving side face up, without any metal object shelter. The LED lights will glashing after 1 to 5mins.
It shows working normally.
4. Close the back cover.
5. Please ask professional technical to connect wires and install to the vehicle. After correct installation.
the REd LED will falshing, 1 min. Later the Blue Led will falshing too. That shows installing completely.


SMS Commands:

Add Administrator No.1 #6666#AAD#1#Cell No#
Cut Engine #6666#CF#
Restore Engine #6666#OF#
Check Status CS
Restart device #6666#reset#

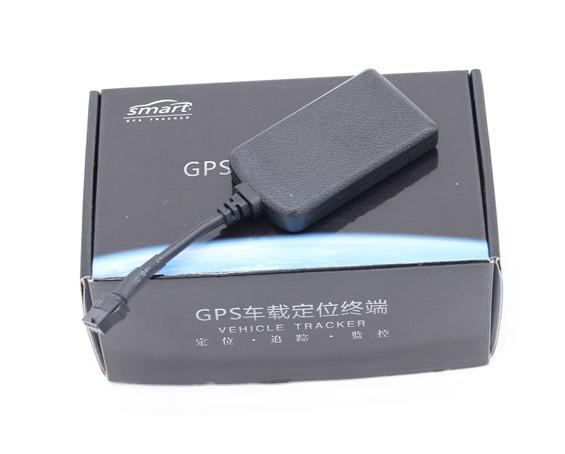

Picture:

Mini Motorcycle GPS Tracker Device for Fleet Management System , Truck GPS GSM Tracker

Mini Motorcycle GPS Tracker Device for Fleet Management System , Truck GPS GSM Tracker

Mini Motorcycle GPS Tracker Device for Fleet Management System , Truck GPS GSM Tracker
