Quad Band Motorcycle GPS Tracker Support Wide Voltage DC 9V To 100V Input
Quad Band Motorcycle GPS Tracker Support Wide Voltage DC 9V To 100V Input
Quad Band Motorcycle GPS Tracker Support Wide Voltage DC 9V To 100V Input
Quad Band Motorcycle GPS Tracker Support Wide Voltage DC 9V To 100V Input
Specifications
Brand Name :
CAX
Model Number :
CA-V2C
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
100000 PCS Per month
Delivery Time :
1-10 work days
Packaging Details :
Packed in carton firstly
Product Type :
Motorcycle GPS Tracker
Input Voltage :
DC 9V To 100V
Application :
E-bike and motorcycle
Function1 :
Real Time Tracking
Shell :
Plastic
Band :
Quad Band
Color :
Black
Weight :
0.035kg
Box Size :
14.5mm*9.2mm*3.6mm
Function2 :
Control Engine or or off
Tracking Way :
Mobile phone APP
Description

Quad Band Motorcycle GPS Tracker Support Wide Voltage DC 9V To 100V Input

Main Functions:

1. GPS Tracking

2. Mileage statistics

3. Power off alarm

4. Check the voltage value of power supply

5. Control the engine on or off via relay

Feature Description:

NO. Feature Descrption
1 GPS Tracking

Device contains GPS module and Antenna, it can receive position data and send to server via GSM module.Then user can check the route
2 Track History Routes All position data will be stored in server, user can check the route via history track function.
3 Setting Function Via SMS Our device supports sms functions. so you can set many commands via sms.
4 ACC Status

when you install it, connect the green line to iginition line of the car. All the status of ACC will be stored in server.
5 Vibration Alarm this device contains one vibration sensor for vibration alarm function.
6 Overspeed Alarm

when it moves more than the speed you set, there will be alarm message on the platform.
7 Cut Off Engine

you can control the engine on or off via relay. send SMS command or send command via platform.
8 Built-in Antenna Built-in high tech of GPS/GSM antenna for easy installation.


Application:
1. Fleet management
2. Motorbike or Ebike Anti-theft
3. Rental Car Company
4. Taxi Company
5. Insurance company

Parameters:

1. Box Size: 14.5mm*9.2mm*3.6mm

2. Net weight: 0.03gkg

3. Gross weight: 0.15kg

4. Shell: Plastic

5. Input Voltage: DC9V To 100V

6. GPS Sensitivity: -159dBm

7. GPS Accuracy: 5meters to 10meters

8. Band: Quad band

9. GPRS: TCP/IP,Class12

10. GPS Antenna: Ceramic Antenna

11. Alarm: power off alarm

12. Geo-fence: Optional

13. Color: Black

LED:

GPS LED

Green LED Flashing stands for GPS signal IS normal.
Green LED always is on stands for no GPS signal.
Green LED is dark stands for sleeping mode or no power.
GSM LED

Blue( Flashing stands for GSM Signal is ok)
Blue LED always is on stands for can not search GSM signal
Blue LED is dark stands for no power or sleeping mode
Power LED Red (Flashing stands for unit works with built-in battery



Steps of installation:

1. Please buy one 2G GSM SIM Card and open GPRS function
2. Open the back cover,insert a SIM card to SIM Card Slot.
2. Turn on battery switch the device starts to work.
3. Connect the power cable with the interface of device. Now theree LED lights will lighting. Make sure the
receiving side face up, without any metal object shelter. The LED lights will glashing after 1 to 5mins.
It shows working normally.
4. Close the back cover. Set the IP address and APN, if APN has user name and password, you have to send APN setting command.
5. Please ask professional technical to connect wires and install to the vehicle. After correct installation.
the REd LED will falshing, 1 min. Later the Blue Led will falshing too. That shows installing completely.


SMS Commands:

Change the IP and Port #6666#IP#119.147.42.206#9891#
Cut off Engine #6666#CF#
Restore Engine #6666#OF#
Check Status of device STATUS#
Restart device #6666#reset#




Picture:

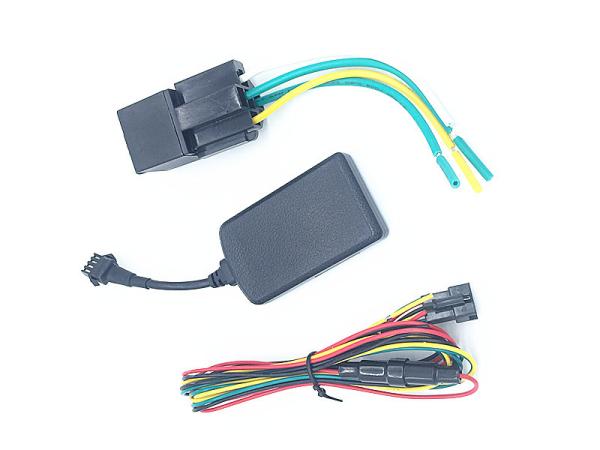

Quad Band Motorcycle GPS Tracker Support Wide Voltage DC 9V To 100V Input

DC12V Or 24V Relay

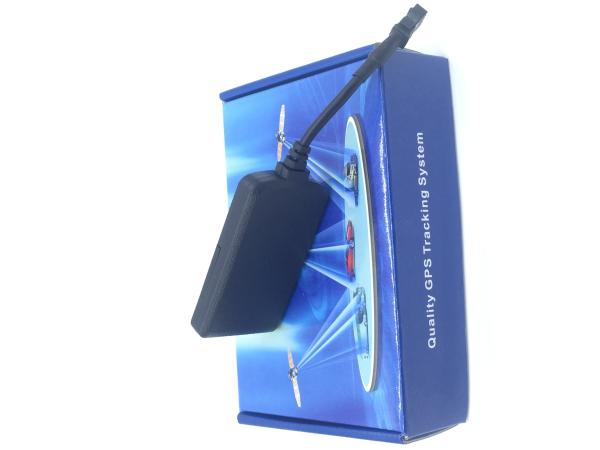

Quad Band Motorcycle GPS Tracker Support Wide Voltage DC 9V To 100V Input

Product Box

Quad Band Motorcycle GPS Tracker Support Wide Voltage DC 9V To 100V Input
