Micro Smart Gps Tracking Device For Cars , Full Band Mini Auto Gps Tracker

Overview:

Type: GPS Tracker Use: Automotive

Function: Real time track Brand name: CAX

Model Name: V2C Band: quad-band

Color:Black Weight: 0.04kg

Protocol: TCP IP GT06 Battery: 120mAh rechargeable

Warranty: 15 months Work mode: SMS GPRS

V2C GPS Tracker Product Functions Description:

1. Power input voltage is DC9V to 100V for car,truck,taxi,bus and motorcycle

2. Full band for 850MHz/900MHz/1800MHz/1900MHz

3. Built-in GPS And GSM Antenna and easy to install

4. Overspeed alarm,Power off alarm and Geo fence alarm

5. ACC detection and remote control engineer on or off

6. Via SMS Command and get Google position link

How dose V2C GPS Tracker Product Work:

V2C GPS Tracker is one real time tracking product. it contains GPS and GSM module and supports GPS and GSM antenna. you need to use 2G GSM SIM Card and open GPRS function. There is also one rechargeable battery, when the power cable is cut off, it can work via built-in battery and there will be power off alarm function. you can also connect yellow line to one relay and control the engineer line on or off.

Specification:

1. Box Size: 14.5mm*9.2mm*3.6mm

2. Net weight: 0.03gkg

3. Gross weight: 0.15kg

4. Shell: Plastic

5. Input Voltage: DC9V To 100V

6. GPS Sensitivity: -159dBm

7. GPS Accuracy: 5meters to 10meters

8. Band: Quad band

9. GPRS: TCP/IP,Class12

10. GPS Antenna: Ceramic Antenna

11. Alarm: power off alarm

12. Geo-fence: Optional

13. Color: Black

Steps of installation:

1. Please buy one 2G GSM SIM Card and open GPRS function
2. Open the back cover,insert a SIM card to SIM Card Slot.
2. Turn on battery switch the device starts to work.
3. Connect the power cable with the interface of device. Now theree LED lights will lighting. Make sure the
receiving side face up, without any metal object shelter. The LED lights will glashing after 1 to 5mins.
It shows working normally.
4. Close the back cover. Set the IP address and APN, if APN has user name and password, you have to send APN setting command.
5. Please ask professional technical to connect wires and install to the vehicle. After correct installation.
the REd LED will falshing, 1 min. Later the Blue Led will falshing too. That shows installing completely.

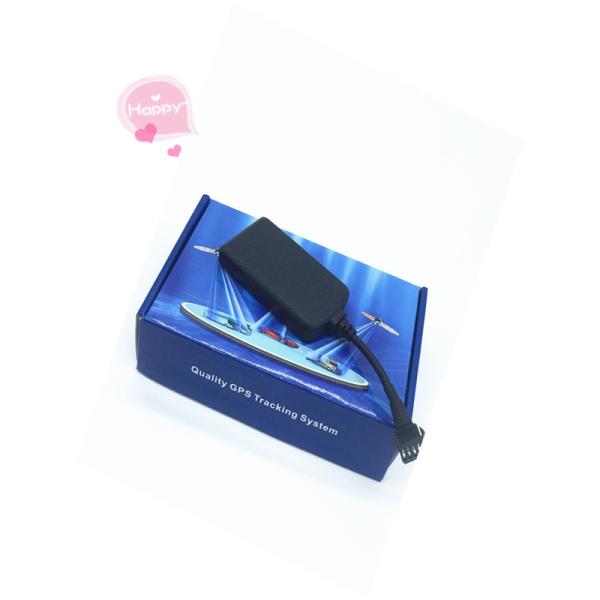

V2C GPS Tracker Product Picture:

Place you install:
