Small Waterproof Tracking Device , Shock Sensor Control GPS Vehicle Tracker

Performance Parameters:

Product Functions:

1. Its compact shape, Easy to install
2. Waterproof design IP67
3. GSM 850/900/1800/1900MHZ Quad-band
4. GPRS/GSM wireless network
5. Built-in acceleration sensor for vibration alarm and power saving
6. Built-in battery,power disconnection alarm function
7. Super wide working voltage input range:9-80V
8. Suitable for Vehicles/Cars/Motorcycles etc
9. Support SMS query location information
10. High sensitive GPS chipset
11. Corner correction function
12. The ACC ignition signal detection, vehicle status indicators
13. Arm / Disarm
14. Web-based online tracking platform
15. Watch dog function,reboot automatically after breakdown

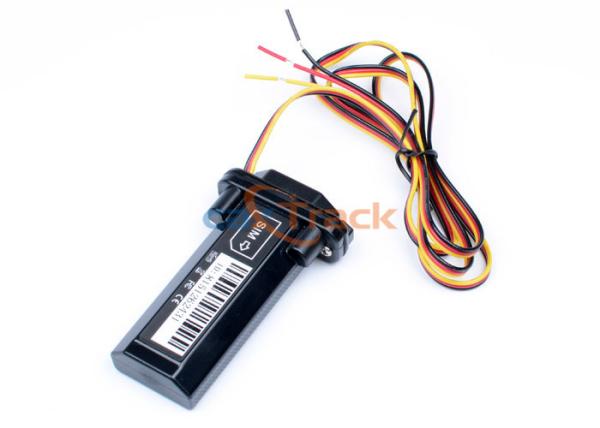

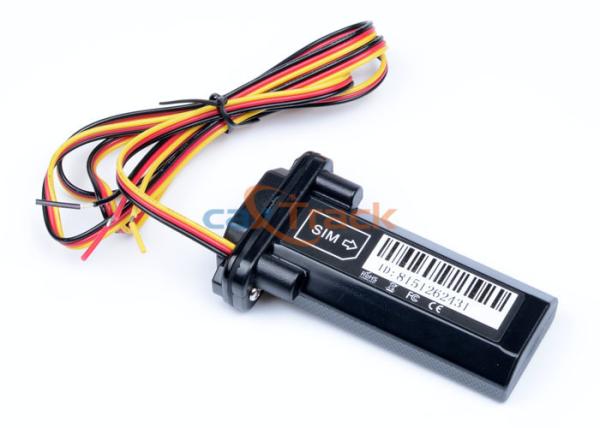

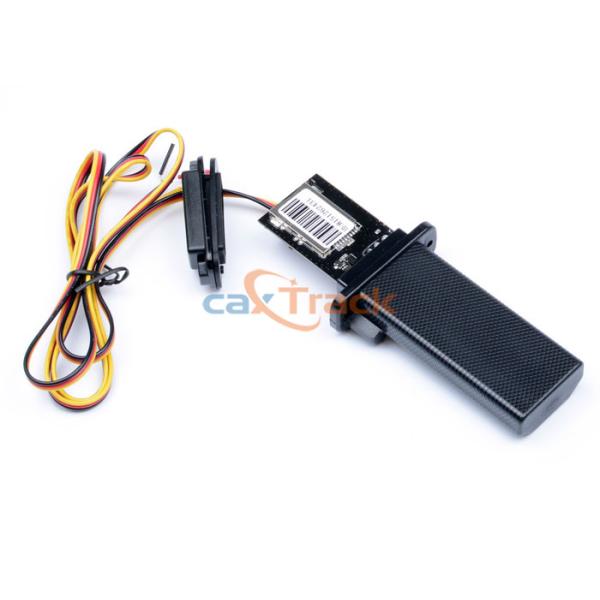

Detail Pictures:

Device wire

1. The red wire to connect power positive.
2. The black wire to connect power negative.
3. The yellow wire to connect the ACC.

Installation:

Please find the professional and technical personnel for installation. Pay attention to the following items:

• In order to avoid thieves damage, please select a hidden place to install.
• Not place with other emission source, such as reverse sensor, car alarm, and other vehicle communication device.
• Use cable tie to fixed or use a wide strong double-sided tape to stick;
• Device with built-in GSM antenna and GPS antenna, so make sure the front of device face to the air, and without metal cover above the device.

Recommended installation location:

1. The decorating plate below the front windshield of the car
2. Around the car dashboard (skin for non-metallic material)
3. The decorating plate below the back windshield of the car
4. In the car door or in the column.
5. In the dashboard of motorcycle or electric bike, or below the back seat

Note:

If there is metal insulation layer or heat layer paste with the windshield, it will cause GPS signal weak and make device work abnormal. So please replace the device installation location.

Five types Tracking way

1. SMS + PC software;
2. PDA Cell Phone;
3. IOS and Android APP
4. Real time tracking, and track via your computer;
5. simple & useful real time tracking via our website;

Applications :

• Motorcycles / Cars / E-bike real-time tracking , Anti-theft
• Vehicle rental / Fleet management / Heavy equipment etc.

Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not be returned.

Product Configuration:

1. Standard configuration

1 power cord 1pc
2 device 1 set
3 User manual 1pc
