Obdii GPS Tracker g Device OBD2 DIY No Installation GPS Car

Technical Parameters:

1. GSM: 850/900/1800/1900 Quad band.

2. GPRS: Class12. TCP/IP

3. Working Voltage: DC12V

4. Working Current: about 22mA( DC12V)

5. GPS Locating Time: Cold start about 38s,Warm start about 32s, Hot start about 2s

6. GPS Precision: 10m

7. Working temperature: -20 degree to +70 degree

8. Working humidity: 20%-80%RH

9. Measurement: 67mm*45mm*25mm

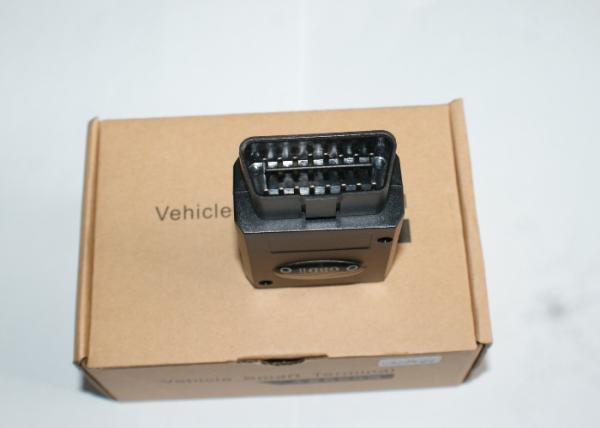

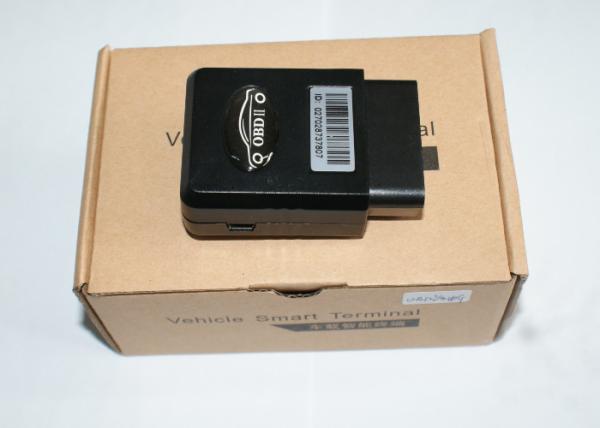

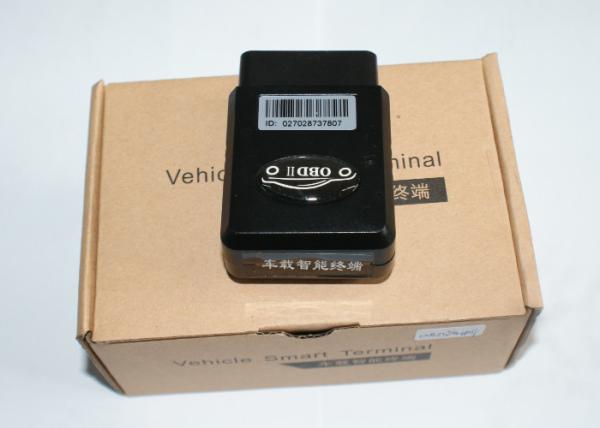

Picture:

pecifications

GSM Module: SIMCOM GPS Module: U-Blox or MTK
GSM Frequency: 850/900/1800/1900MHz (4 Band) GPS channel: 24 channels
GSM / GPS Antenna: Built in Locate precision: 10-20 Meters
GPS Cold Start Time: 36 seconds GPS Hot Start Time: 1 second
Working Voltage: 9-40V DC Recharging Current: < 5V/100mA
Standby Current: < 10 mA Uploading Current: <100mA / 12V
Battery: 180mAh Working Temperature: -20 0C to +55 0C
Absolute Temperature: -35 0C to +70 0C Storage Temperature: -40 0C to +80 0C
Main functions:
OBD II interface, DIY no installation Online diagnostic, SMS reply car DTC & car status Online software GPRS air upgrade, Built in microphone for listen sound in car
Cell ID locate (base station locate) without GPS, Built in memory to record track without GSM network
Built in GSM & GPS high sensitive antenna, Built in rechargeable battery for power down alarm & tracker removed
Working Method: GPS located + upload with GPRS GSM network, Personal domain name & login page with customer logo can be applied
Upload current location to internet server, Shock alarm (calling alarm & SMS sending) can be used as car alarm
Power down alarm & shock alarm can be sent by SMS or calling, Wide working voltage (9-40V), Car, & truck all can be used
Sending SMS to set GPS tracker, easy to use, GPS operating need password to protect user privacy
Use high sensitivity GSM & GPS module, Stop uploading after stop moving 2 minutes to save car battery life
Built in move sensor, begin uploading immediately if car begin to move, Compatible with IE / Fire fox / Chrome / Safari, not necessary download software
Device can be located by SMS or calling without platform server, Muli-Level user for Agent / distributor / fleet / single user etc.
If the object enters no GPS area, it will report the last position tracked, Open GPRS protocol to client for adding protocol to platform
Upload IP address can be set by SMS, APN name can be set by SMS, History tracking data keep 6-12 months
Device serial ID and setting can be checked by SMS, GPS Tracker manual can be download and reading online from platform
Life time free platform Service charge (Our free platform www.999gps.net ), Support iPhone & Android APP / WeChat / SMS / Calling locate
Platform user password can be changed by user to protect user privacy, Over speed alarm / Geo-fence break alarm can be set on platform
Running report can be read & export by month and day, Distributor can apply charging GPS tracking service with our assistance
Suit for cars / bus / truck / taxi / rent cars etc., Tracking platform: www.999gps.net, Demo user: 123456, Password: 123456
Primary Competitive Advantages:
OBD II interface, DIY no installation, Online diagnostic, SMS reply car DTC & car status
Online software GPRS air upgrade, Built in microphone for listen sound in car
Cell ID locate (base station locate) without GPS, Built in memory to record track without GSM network

Command:

Applications :

4S shop , car company , truck company , motorcycle company , GPS producer , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , car repair shop,taxi company .

Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day

2. All of our product there is a 2 year quanlity assurance.

3. Sample fee will not be returned.

Product Configuration:

1. Standard configuration

1. GPS Tracker Device
2. User manual
