Specifications
Brand Name :
YTWL
Model Number :
CA100F
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Product Name :
CA100F speed limiter
Processing Chip :
ARM
Network :
GSM/GPRS/GPS
Anti-jamming :
Strengthened Anti-jamming
Real-time monitoring :
Support
GPS accuracy :
5 m
the power indicator :
red light
GPS indicator :
Blue
Time To First Fix :
Reacquisition 0.1s
Description

Car Speed Limiter State Speed Limit with Solenoid Valve Sole IMEI and ID Number

1 Speed Limiter GPS Product Specifications

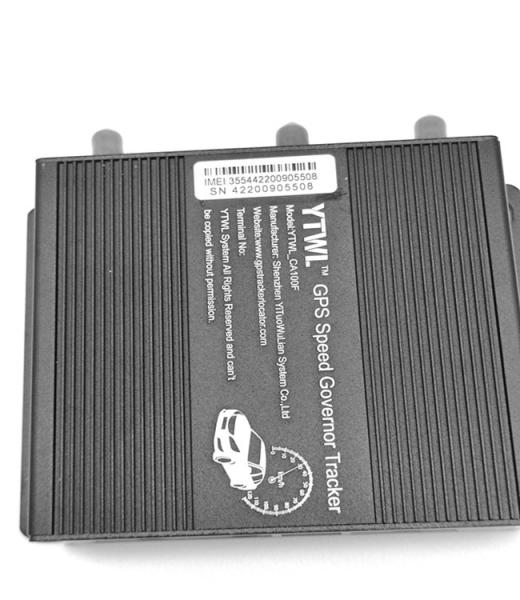

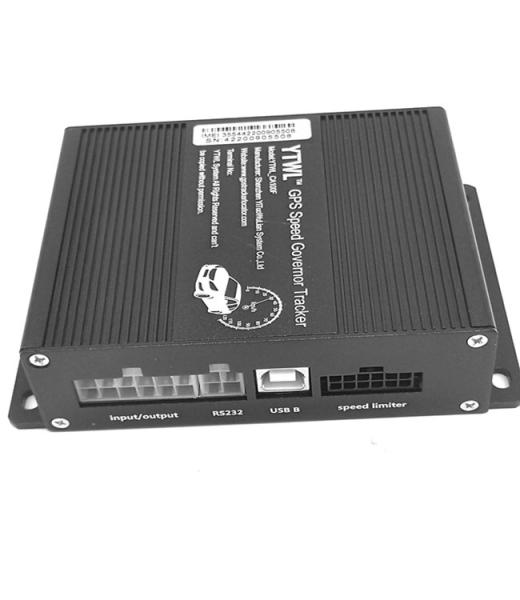

Vehicle speed limiter CA100F is an intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.Speed control precision is very high and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable. It only limits the maximum speed and the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.

Dim. 117*92*31 (mm)
Band 850/900/1800/1900MHz
GPS chip U-blox
Bluetooth Module BT360I
Work Voltage DC 9V－36V
Battery Rechargeable 3.7V
Standby work current < 40mA
Operation Temp. -20°C to +70°C
Humidity 5%--95% non-condensing
CPU STM32F105RBT6

2. Speed Limiter Requirement

Car Speed Limiter State Speed Limit with Solenoid Valve Sole IMEI and ID Number

  1. No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance;
  2. The speed limiter function shall be obtained once the vehicle speed reaches the set maximum speed regardless of the position action on the accelerator a driver may apply.
  3. The speed limiter function shall be independent of the condition or soundness of the speedometer;
  4. The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.
  5. When the vehicle, running at its set speed and with the driver's accelerator at its position of maximum travel, is subject to an accelerating force due to a down gradient, the limiter shall control speed by restricting the engine power to the limiter's minimum
    engine power control setting.
  6. The speed limiting function shall be performed progressively in such a mariner that excessive juddering or discomfort is not caused

3.Speed Limiter Analysis of the content of tcp reply​:

Car Speed Limiter State Speed Limit with Solenoid Valve Sole IMEI and ID Number

1 FACTORY*123456 Setting back to factory default
2 CHANGEPW*123456*138138 New Password:138138
3 SPEED*123456*080 Set Speed OK: 80
4 RESET*123456 Cancel all alarm setting and re-power on
5 INTERVAL*123456*030 Set Interval 30 s OK
6 IP*123456*S121.201.110.106,5300 IP SET OK
7 NUMBER*123456*13612345678 NEW ID: 13612345678
8 TIMEZONE*123456*+08 TIMEZONE: +08
9 UPGRADE *123456*39.108.130.237,2332 Upgrade Main Starting!!!
10 ACCON*123456*30 Set Acc On Interval 30s OK
11 ACCOFF*123456*60 Set Acc Off Interval 60s OK
12 TCP Device Info
13 PULSE*123456*450 Set PULSE parameter 450 OK
14 BTprint*123456 Bluetooth printer start to print
15 print*123456*010 change the Bluetooth print time is 10 minutes
16 Supplyoil*123456 Supply fuel remotely
17 Cutoil*123456 Cut off the fuel remotely
18 ALARMPHONE*123456 Send alarm to admin phone number
19 openpulse*123456 Open limp mode
20 Tcp TP121.201.110.106
P7000DD000019171223244F0000S0014R0000O
N30OFF60VJun 12 2020A:CMNET,p450,s80,c15,
0.360V, 0.720V,12.43V,a0,G00,-59 dbm

(TP121.201.110.106P7000DD000019171223244F0000S0014R0000ON30OFF60VJ
un 12 2020A:CMNET,p450,s80,c15, 0.360V, 0.720V,12.43V,a0,G00,-59 dbm)
TP121.201.110.106 P7000: IP and port
DD000019171223244: device ID number
F0000S0014: upload data fail 0 times, successful 14 times
R0000: memory data is 0
ON30OFF60: interval of acc on is 30 seconds, and acc off is 60 seconds
VJun 12 2020: firmware of the devices is JUN 12 2020
A:CMNET: the APN is CMNET
p450: Pulse coefficient is 450 (If the pulse coefficient is larger, the speed will be
smaller)
s80: speed limiter max =80km/h
c15: For mechanical throttle, the time to disconnect the fuel line is 15 seconds
0.360V, 0.720V: Two throttle voltage values for electronic throttle vehicles
12.43V: vehicle voltage values
a0: a0 is acc off, a1 is acc on
G00: G00 means GPS not fixed, G10 means 10 satellites found
-59 dbm: GSM signal

4.Speed Limiter FAQ
  • How to connect the relay?

Answer:Relay have 4 lines:87A and 30PIN are respectively connected to the two ends of the cut oil pump line;86 connects 12V or 24V power line in series;85PIN connects to the white line of the GPS speed limiter.Note: Control the speed of the speed limiter with above way, the delay of the speed limit will be relatively large. For example, if the speed limit is set to 40km/h, the car can also run up to 50km/h during acceleration. So, find the car pulse speed line and calibrate the pulse speed, the delay will be much smaller.For vehicles with mechanical throttle, if want to limit the speed without delay, need connect a solenoid valve and use a relay to control the solenoid valve to achieve the purpose of real-time speed limit.

  • Does the speed limiter have the managment fleet platform?

Answer: Yes.the paltform is www.gps-go.com

  • How to calibrate the pulse coefficient

Answer:You can find the original car speed pulse line to be connected with the device’s pulse line.Then you can make the car run at a constant speed of 30km/h, then press the button twice to calibrate the current pulse coefficient.Please be noted with: same vehicles have the same pulse coefficient.The default pulse coefficient is 450.If you already know the pulse coefficient of the vehicle, you can set it directly by SMS.PULSE*123456*26 (Note: this command sets the pulse coefficient to 26).

5. Speed Limiter Parts list:

  • Power wire
  • Speed limit wire
  • Buzzer

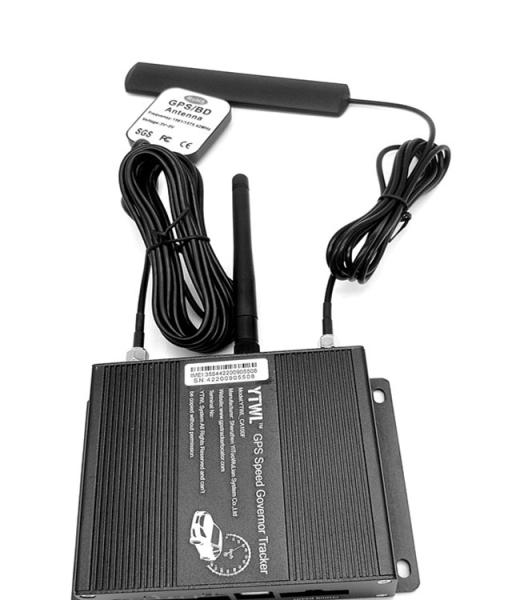

  • GPS Antenna, GSM Antenna, SIM Card Slot
  • Bluetooth printer (optional)
  • Bluetooth antenna

Car Speed Limiter State Speed Limit with Solenoid Valve Sole IMEI and ID NumberCar Speed Limiter State Speed Limit with Solenoid Valve Sole IMEI and ID Number
