4 Channels 1080P SD Card Mobile DVR 3G 4G WIFI For School Bus​

Model Name: SD210

Brand Name: CAX

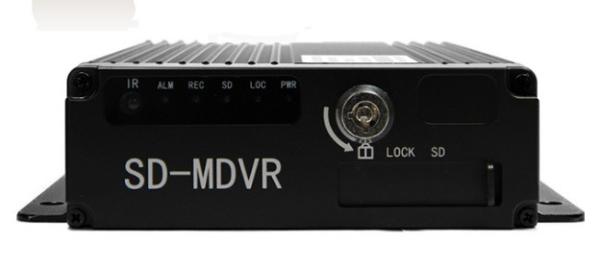

PWR: Power Indicator LED, LED on means powered has connected.

ARM: Alarm Indicator LED,LED on means alarm event is happening.

REC: Video recording indicator LED, LED means in the recording.

SD1: SD card 1 indicator LED,

LED On- Card exists but not recording LED.

LED Flash- card 1 is recording.

LED OFF- Card does not exist

SD2: SD card 2 indicator LED

LED on- Card 2 exists but not recording.

LED Flash- Card 2 is recording

LED Off - Card does not exist

LOC: SD lock indicator LED, LED on stands for SD Lock is open.

IR Remote Receiver:

IR : Infrared remote control receiving hole.

SD Lock: Lock - It's used for unload hard disk. Device will power off automatically if power on when HDD

lock is open.

SD Card Slot: SD, It's used for unload SD card or SIM card.

Video and Audio Input interface: 1 to 4 channels with DC 12V output.

Video and Audio Input interface: Video and Audio output interface with DC 12V Output.

3G Antenna Port: connect 3G Antenna interface

I/O: With alarm input and output, serial port etc.

USD Interface: It's used to import or export data or upgrade

Power Input interface: Input Voltage DC 8V to 33V

Red cable connect power positive.

Black cable connect power negative.

Yellow line is ACC signal cable.

GPS Antenna Port: connect GPS Antenna interface.

AV input PIN description:

SD Card Application:

Video Online Checking:

MDVR Factory:

Installation Picture:

MDVR Certificate:

MDVR FAQ:

Question 1: How can we buy your mobile DVR product?

Answer 1 : You can pay it via T/T, paypal,western union,After we receive your payment, we will send

goods to you as soon as possible.

Question 2: Can we use our own server?

Answer 2: Yes,we can provide platform software to you. you only need to buy one server.

Question 3: Can we use 128G SD Card?

Answer 3: Yes, of course.

Question 4: Can we use 1080P camera?

Answer 4: Yes, but first you also need to buy 1080P SD card mobile product.
