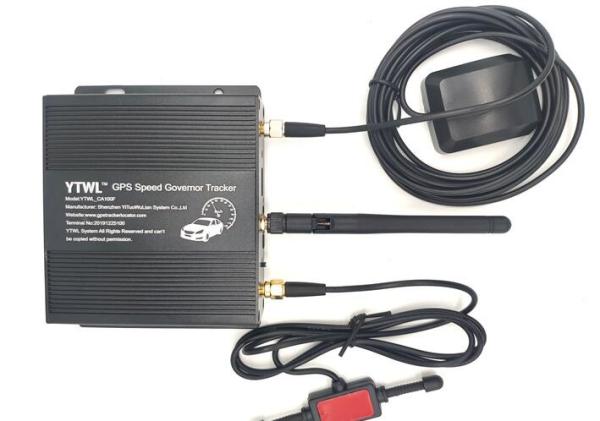

200mA Electronic Engine Governor Speed Limiting Device Real Time Online Tracking
200mA Electronic Engine Governor Speed Limiting Device Real Time Online Tracking
200mA Electronic Engine Governor Speed Limiting Device Real Time Online Tracking
200mA Electronic Engine Governor Speed Limiting Device Real Time Online Tracking
Specifications
Brand Name :
cartrack
Model Number :
CA100F
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Product Name :
CA100F speed limiter
Processing Chip :
ARM
Alert :
Overspeed Alert
Network :
GSM GPRS 3G 4G WCDMA LTE
Product Accessory: :
Extension wire
engine cut off :
Control engine remotely
OEM :
Accept
Function :
Controlling Speed, Vehicle Speed Limiter
Working Voltage :
9V-36V
Working Current :
<200mA
Description

Ethiopia Standard Speed Limiting Device Speed Limiter Real-time Online Tracking​

1 Product Specifications

Color Black Application free android and IOS app
Input Fuse 5A CPU TI:MSP430F5419(100MHz)
Battery Lithium battery :400mA( working time is about 3.5 hours) Warranty 2 years
Item Name Top selling shine Function camera gps fleet tracker
Working Temperature Anna Shi MOQ 10 Pieces
GSM Module GSM Module:SIM5320
Band:850/900/1800/1900/2100MHz,
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg		 GPS Module GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
Current Not working Current 16mA
working Current:60~150mA
Current of opening infrared of Camera at night :100~200mA
Charging current: Max<500mA		 Input I/O 8 I/O input/output Port
1 main power check
1 port use to check the engine ( ACC check)
1 port use to SOS
1 analog Input port( Fuel sensor)
1 Output port ( Car engine control )
3 Extend ports ( Input/Output control by software)

2. Speed Limiter Requirement

Ethiopia Standard Speed Limiting Device Speed Limiter Real-time Online Tracking​

  1. The road speed limiting device shall be designed and constructed in such a way that it can be fitted in a place not easily accessible;
  2. The road speed limiting device shall have in built features that allow functionality checks and shall have special inspection devices for this purpose to facilitate the checking when the vehicle is not in motion;
  3. The actuation force of the controls should not have a detrimental effect on the driver's efficiency or impose fatigue on the driver;
  4. Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal, when the vehicle is running at its set speed;
  5. Speed limiter device shall remotely communicate through telecom infrastructure;
  6. Speed limiter device shall have geo-fence management feature.
  7. The input speed signal shall be obtained from global navigating system (GNS) or speedometer vehicle speed signal or a converted speed signal from vehicle gearbox or from other separately installed sensor as deemed appropriate

Ethiopia Standard Speed Limiting Device Speed Limiter Real-time Online Tracking​

  1. The speed limiter devices shall be of industrial grade and designed for automotive application ;
  2. All components necessary for full function of the speed limiter or the Speed limiter device shall be energized whenever the vehicle is being driven ;
  3. The device should provide functional check facility by which the set speed and functioning can be checked by the field and other concerned authorities;
  4. The speed limiter device system shall be equipped with a system which shall accept an external device for testing the speed limiter and verifying its functionality.

3 Application Field:

  1. For School Bus ;
  2. For tour bus and passenger car management ;
  3. For logistics vehicle monitoring and management ;
  4. For tank truck monitoring and management.
  5. For limit the speed of vehicles
