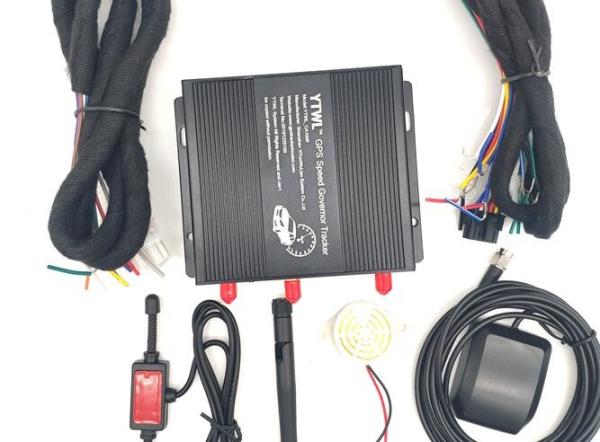

30KM/H Speed Governor Overspeed Alert Extension Wire ES6413/2019 YTWL_CA100F
30KM/H Speed Governor Overspeed Alert Extension Wire ES6413/2019 YTWL_CA100F
30KM/H Speed Governor Overspeed Alert Extension Wire ES6413/2019 YTWL_CA100F
30KM/H Speed Governor Overspeed Alert Extension Wire ES6413/2019 YTWL_CA100F
30KM/H Speed Governor Overspeed Alert Extension Wire ES6413/2019 YTWL_CA100F
30KM/H Speed Governor Overspeed Alert Extension Wire ES6413/2019 YTWL_CA100F
Specifications
Brand Name :
cartrack
Model Number :
CA100F
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Product Name :
Vehicle Speed Limiter
Processing Chip :
ARM
Alert :
Overspeed Alert
Product Accessory: :
Extension wire
Speed range :
1 to 200km/h
Material :
Steel
OEM :
Accept
Function :
Controlling Speed, Vehicle Speed Limiter
Description

YTWL_CA100F Electrical Speed Limiter Speed Limiting 30KM/H ES6413/2019

1. Safety Requirement

All the four samples shall be tested for performance as prescribed in clauses below.

  1. All cable or harness connectors in the speedometer circuit shall be wired and sealed. All connections shall be soldered and insulated with a flame proof insulation tape of adequate length of such a color as to blend well with the rest of the vehicle
    wiring..
  2. The speed limiter function or the Speed limiter device shall operate satisfactorily in its electromagnetic environment without unacceptable electromagnetic disturbance for any other device in the environment
  3. The speed limiter device shall pre-warn the driver, by way of a high frequency buzzer, optionally flashing light signal can be used that the set speed is being reached. This warming shall occur at 5% prior to the set speed and shall continue buzzing once
    the set speed is achieved/ exceeded.
  4. When the set speed is reached, the speed limiter device shall temporarily cause the engine to lose power.Engine power shall be reinstated at a speed not less than the pre-warning switch point,which is 5% below the set speed.
  5. A second (critical) set point should activate a retarder device (where legislated) when this set point is reached. This set point should be no more than 5% above the standard set point and shall, automatically, activate the retarder to ensure that the vehicle cannot exceed the preset limit.

2 Product Specifications

Color Black Application free android and IOS app
Input Fuse 5A CPU TI:MSP430F5419(100MHz)
Battery Lithium battery :400mA( working time is about 3.5 hours) Warranty 2 years
Item Name Top selling shine Function camera gps fleet tracker
Working Temperature Anna Shi MOQ 5 Pieces
GSM Module GSM Module:SIM5320
Band:850/900/1800/1900/2100MHz,
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg		 GPS Module GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s
TESTS

Five samples of speed limiter device shall be provided - four samples for the
performance and endurance test described in clause 8.3 and 8.4

and one sample as fitted on the vehicle for carrying out.the tests prescribed in clause 8.5. In the case of add-on or on-board system built in the vehicle, the involved system and its components should be provided separately for the performance and endurance tests

 Input I/O 8 I/O input/output Port
1 main power check
1 port use to check the engine ( ACC check)
1 port use to SOS
1 analog Input port( Fuel sensor)
1 Output port ( Car engine control )
3 Extend ports ( Input/Output control by software)

3. Speed Limiter GPRS requirement

YTWL_CA100F Electrical Speed Limiter Speed Limiting 30KM/H ES6413/2019

  1. GPRS Of speed limiter shall have a minimum of Multi-slot Class 8 (4Rx, 1Tx, 5slot Max.);
  2. GPRS Of speed limiter shall Support at minimum four coding schemes (CS-1, CS2, CS-3 and CS-4) download speed at least speed 85.6kbps upload speed is at least 21.4kbps;
  3. The speed limiter function or road speed limiter shall be EMCcompatible or shall have Anti-Jammer mechanism;
  4. Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal, when the vehicle is running at its set speed;
  5. Positioning Accuracy of GPS shall be Less than 5 meters at 20 RMS;
  6. GSM Frequency of the speed limiter GPS shall be based on national telecommunication requirement.

Ethiopia Standard Electronic Speed Governor GSM GPS Vehicle Speed Limiter

  1. Fixed maximum speed limiting: Set a maximum speed according to the actual needs of vehicles. For example: if you require the vehicle speed does not exceed 60Km/h (or other appointed speed), the product will strictly control the vehicle speed does not exceed 60 Km/h (or other appointed speed) ;
  2. GPS speed data collection data collection ;
  3. Vehicle pulse speed ;
  4. Digital display controller adjustment.

4. Technical Parameters:

Ethiopia Standard Electronic Speed Governor GSM GPS Vehicle Speed Limiter

Item Parameters
Overall Size 20.0 X 9.2 X 4.5 CM
Host Net Weight 0.4 KG
Processing chip STC
Speed Limiting Zone 20-200 Km/H
Speed Limiting Deviation ±5Km/H
Mechanical Bearing Capacity 400N
Working Voltage 9-36 V
Rated Power Consumption <0.3 W
Working Current <60 mA

5 Application Field:

  1. For large vehicle management and dispatching system ;
  2. For tour bus and passenger car management ;
  3. For logistics vehicle monitoring and management ;
  4. For tank truck monitoring and management.
  5. For limit the speed of vehicles

30KM/H Speed Governor Overspeed Alert Extension Wire ES6413/2019 YTWL_CA100F30KM/H Speed Governor Overspeed Alert Extension Wire ES6413/2019 YTWL_CA100F
