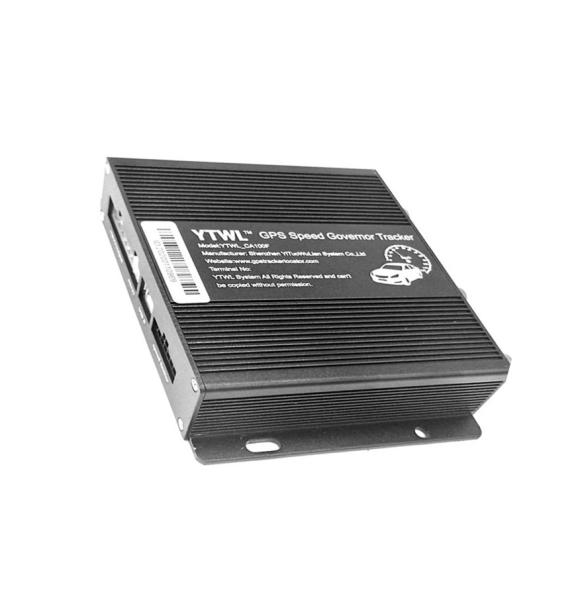

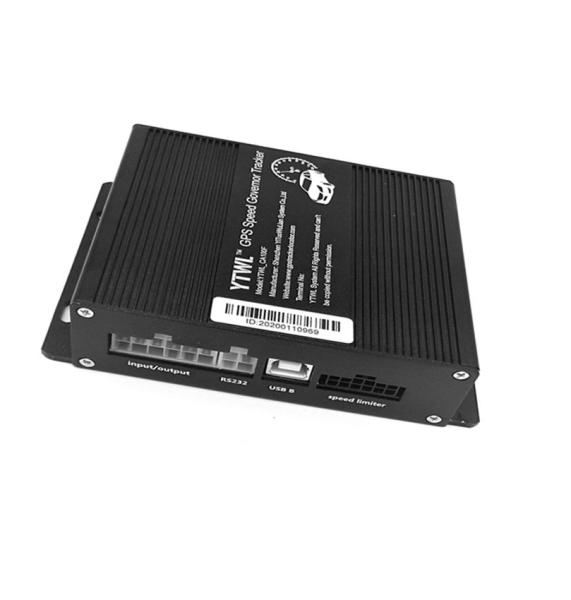

Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption
Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption
Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption
Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption
Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption
Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption
Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption
Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption
Specifications
Brand Name :
cartrack
Model Number :
CA100F
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
10 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
100,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Product Name :
CA100F speed limiter
Processing Chip :
ARM
GPRS :
Class12, TCP/IP
GPS :
Built in
Product Accessory: :
Extension wire
engine cut off :
Control engine remotely
Geo-fence :
Support
GPS Precision :
10m（2D RM）
Remote Monitoring :
5m
Description

Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption

1 Speed Limiter GPS Product Specifications

Color Black
Input Fuse 5A
Battery Lithium battery :400mA( working time is about 3.5 hours)
Item Name Top selling shine
Working Temperature Anna Shi
GSM Module GSM Module:SIM5320
Band:850/900/1800/1900/2100MHz,
Tally with: GSM phase 2/2+
-Class 4 (2W @ 850/900MHz)
-Class 1 (1W @ 1800/1900MHz)
Max RF Output: 33.0dBm±2dBm
Dynamic Input Range: -15 ~ -102dBm
Receiving delicacy: Class RBER≤2%(-102dBm)
Frequency Stability: > 2.5ppm
Max Frequency Deviation: ±0.1ppm
RMS Deviation: ≤5deg
GPS SMS Command list
  1. Check Device Status :STATUS#
  2. Check Device parameters :PARAM#
  3. Check GPRS Parameters :GPRSSET#
  4. Check Device Lat. And Log. :WHERE#
  5. Check Server parameters :SERVER#
  6. Reset Device :RESET#
  7. Add SOS Number :SOS,A, Number 1,Number 2,Number 3#
Application free android and IOS app
CPU TI:MSP430F5419(100MHz)
Warranty 2 years
Function camera gps fleet tracker
MOQ 10 Pieces
GPS Module GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
Number of Channel: 20
Reacquisition: 0.1 sec, average
Hot boot: 2 sec., average
Warm boot: 38 sec., average
Cold boot: 44 sec., average
Altitude limit: 18000 m
Velocity limit: 515 m/s

2. Speed Limiter Requirement

Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption

  1. The road speed limiting device shall be designed and constructed in such a way that it can be fitted in a place not easily accessible;
  2. The road speed limiting device shall have in built features that allow functionality checks and shall have special inspection devices for this purpose to facilitate the checking when the vehicle is not in motion;
  3. The actuation force of the controls should not have a detrimental effect on the driver's efficiency or impose fatigue on the driver;
  4. No malfunction or unauthorized interference shall result in an increase in engine power above the demanded by the position of the driver's accelerator. The malfunction of the speed limiter devices shall not affect the normal vehicular performance
  5. The speed limiter function shall be obtained once the vehicle speed reaches the set maximum speed regardless of the position action on the accelerator a driver may apply.
  6. Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal,when the vehicle is running at its set speed.
  7. The speed limiting device shall be so designed, constructed and assembled so as to resist vibrations, corrosion, dust, humidity, petrochemicals and aging phenomena to which it may be exposed.

3.Speed Limiter Geo-fence

Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption

Set up a geo-fence for the unit speed limiter to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.Set up: The user can Send SMS “stockade + password + space + MinLatitude, MinLongitude; MaxLatitude, MaxLongitude” to unit to set the restricted district. In case of breach, it will send SMS “stockade! + geo-info” to the authorized numbers.For example send SMS “stockade123456 22.548123, 114.081234; 22.549123, 114.082234” to the unit. Remark: The first latitude & longitude is coordinate of min of the Geo-fence, while the second latitude & longitude is the coordinate of the max. It will alarm one time in each setting.Cancel: Send SMS “nostockade + password” to deactivate this function. This function will be out of effect after the unit moves outside the district.
4.Speed Limiter GPS GPRS GSM Main functions
  1. Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
  2. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district
  3. Remote Monitoring: In anywhere and anytime, call the phone number in the unit, when it connects, you can monitor the sound around 5 meter.
  4. Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.
  5. Mileage statistics; ACC checking; cutting off power and alarm.

5 Application Field:

  1. For School Bus ;
  2. For tour bus and passenger car management ;
  3. For logistics vehicle monitoring and management ;
  4. For tank truck monitoring and management.
  5. For limit the speed of vehicles

Vehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel ConsumptionVehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel ConsumptionVehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel ConsumptionVehicle Motor Car GPS Speed Limiter Tracking Managment System Fuel Consumption
