Specifications
Brand Name :
Cartracker
Model Number :
C003-01-4G
Certification :
ISO CE
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
10,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Type :
Gps Tracker
Warranty :
1 Years, 1 Year
Material :
Engineering plastic
Weight :
0.05 KG
Placement :
Windshield
Function :
GPS anti-jammer tracker,Cut-off engine
Connection :
4G 3G
Description

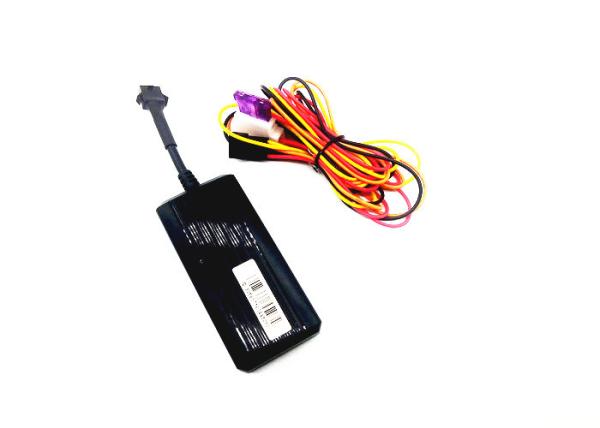

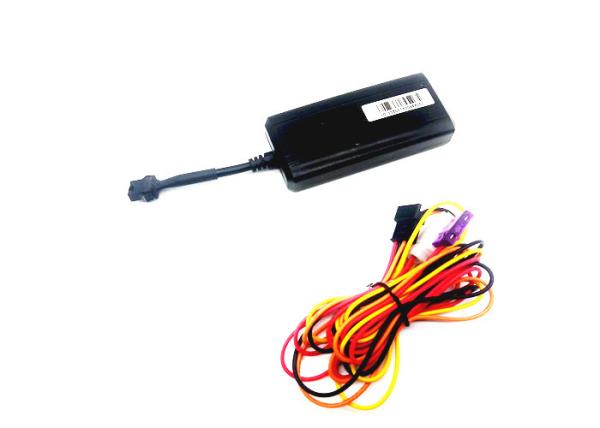

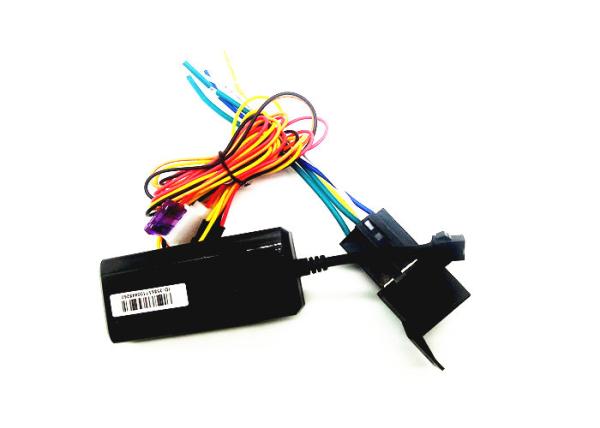

MINI LTE 4G GPS Tracker, Vehicle/Motorcycles, Hardwired, Optional Relay Tracking Device

C003-01-4G Mini GPS Tracker Features
1.LBS+GPS Positioning
2. Portable and Multi-purpose:
3. Geo-fence Protection: An alarm will be sent to your phone
when it goes beyond the fence range.
4. How to Use: All you need is a working SIM card (NOT included) to insert into the device,then you can track and map in real-time over the Internet.
5. No Monthly Fee: Car GPS tracker app (supports iOS and Android ) is user-friendly with no monthly fee, you can refresh the location immediately and view the movements as it happens.

MINI LTE 4G GPS Tracker, Vehicle/Motorcycles, Hardwired, Optional Relay Tracking Device

MINI LTE 4G GPS Tracker, Vehicle/Motorcycles, Hardwired, Optional Relay Tracking Device

Application:
♦ Rental car solutions
♦ Fleet management
♦ Public transport tracking solutions
♦ Taxi tracking and management solutions
♦ Car/vehicle/motorcycle/E-bike anti-theft


Main Features:
∗Support 9-100V working voltages
∗ACC Anti-theft alarm
∗Cut off engine and oil
∗Vibration alarm
∗Geo-fence
∗Over speed alarm
MINI LTE 4G GPS Tracker, Vehicle/Motorcycles, Hardwired, Optional Relay Tracking Device

MINI LTE 4G GPS Tracker, Vehicle/Motorcycles, Hardwired, Optional Relay Tracking Device

Hardware Specification:

Content Specs.
Net weight 50g
4G frequencies LTE TDD B40
LTE FDD B1/B2/B3/B4/B5/B6/B7/B8/B28
UMITS/HSPA+B1/B2/B5/B8
chipset MT6261
GPS locating time cold start=38s warm start=32s hot start=2s
GPS Sensitivity -159dB
GPS Accuracy ≤ 10m
Work environment temperature -40℃+80℃
Work environment humidity 20%-80%RH
Operating voltage DC9-100V
Operating current 22mA(12V)
Specifications L90mm*W40mm*H15mm
Positioning mode GPS, LBS and positioning
Positioning error < 10 m
Support WCDMA Yes
Communication TCP/IP

MINI LTE 4G GPS Tracker, Vehicle/Motorcycles, Hardwired, Optional Relay Tracking Device

MINI LTE 4G GPS Tracker, Vehicle/Motorcycles, Hardwired, Optional Relay Tracking Device

Platform Application

The dealer platforms are different, please consult your dealer internet website

1 Real-time monitoring, network / phone search vehicles

GPS + LBS dual-mode positioning, GPS positioning accuracy of 2 meters, when GPS has signal use GPS positioning, in a place with no GPS signal use LBS base station to locate, dual-mode automatic switching, let your GPS vehicle positioning terminal communication always online, make sure you monitoring 365 days x 24 hours always online.

Real-time phone monitoring: mobile login domain.

Real-time platform monitoring: computer login domain.

2 Track Playback

Login platform, click on the historical track playback function.

3 Statistics Report

Logistics companies can be set by the software to monitor the goods is notified of the departure time, route point, line alarm, warning area, heavy hit the alarm, rollover warning, driving speed, etc., we will comprehensive analysis of goods in transit situation and issue reports.

Login platform, click statistics report

4 Windows, Android, Ipad, Iphone, Wechat client please go to auto download service platform, each client application please contact customer service.

FAQ
Warranty:
1. One year warranty is provided for all models.
2. All products have been strictly checked in house before packing.
3. All products have been well packed before shipping.
OEM & ODM Service:
1.Customized logo and brand print on the device or box
2.Offer firmware modification service
3.Customized design for bulk order
