4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker
4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker
4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker
4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker
4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker
4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker
Specifications
Brand Name :
Cartracker
Model Number :
GT06 4G GPS Tracker
Certification :
CE ISO9000
Place of Origin :
Shenzhen China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
10,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Item :
Mini GPS Tracker
Positioning mode :
GPS+LBS Mode
Battery :
200mAH
APP :
IOS Android
SOS panic button :
Supported
Size :
90*40*15MM
Description

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker

Feature:

GSM two-way 850/900/1800/1900 MHz
GPS positioning GPS sensitivity: -162dBm
GPS positioning accuracy: 2 meters (under open conditions)
Speed ​​accuracy: 0.1 m/s
Cold start time: <38 seconds
Warm start time: <32 seconds
Hot start time: <2 seconds
Base station positioning Support base station positioning, positioning accuracy: 10~200 meters
Vandalism Support anti-counterfeiting base station, anti-detection function
Working current Average current <30mA (12VDC), maximum current <100mA (12VDC)
Operating temperature -20~+65℃
Material Engineering plastics
Weight 50G
Network 4G LTE/3G/2G
Dim. 90*40*15mm
Storage Temp. -40°C to +85°C
Accuracy 5-20m
Operation Temp. -20°C to +55°C
Humidity 5%--95% non-condensing
Working Voltage 9-80V
CPU MTK6261
RAM 32MB
ROM 32MB
Waterproof Optional

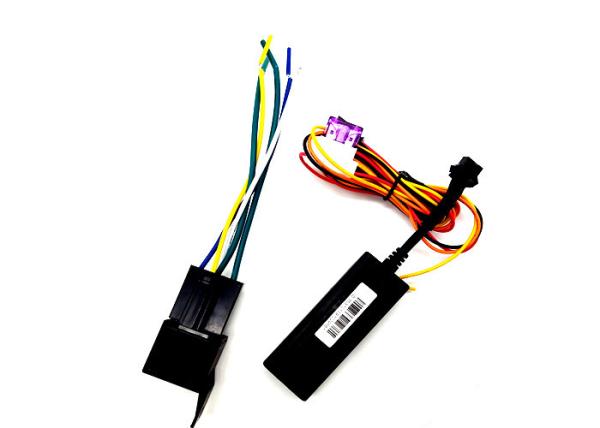

Exterior&Accessories

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker

Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker

Product Specification

Frequency North America EC25-A
EC25-V:LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13
Nerworks 4G/3G/2G
Battery 200mah
Operating Voltage 9-100v
Location time Hot start≈2s(Open sky)
Location accuracy 5-10M
Operating temperature -20℃～+70℃
Dimension 90*40*15mm
Weight 0.05kg

Europe / Middle East / Africa / South
Korea / Thailand EC25-E:

LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8

North America EC25-A
EC25-V		 LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13

Australia/New Zealand/Taiwan/Brazil
EC25-AU		 LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8

Japan
EC25-J		 LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker

Product Features
.1 Support global gsm850/900/1800/1900mhz, wcdma850/900/1900/2100 Mhz network
frequency band;
.2 Wide operating input voltage range: 9-80VDC;
.3 GPS / LBS real-time positioning, support the computer to track the car, mobile search
vehicles and wechat search vehicles;
.4 Support SMS text query location information;
.5 ACC ignition signal is detected, the vehicle prompted the state;
.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;
.7 Able to set a specific number for SOS alarm and burglar alarm;
.8 SOS switch button for emergency call for help;
.9 Internal / external microphone and speakers, remote audio monitoring and voice
intercom function (optional);

Platform

up to 180 days historical route track electronic fence, out of the regional alarm
deviate planning route alarm serious collision warning (optional);
rollover warning (optional); overspeed alarm
report output

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker

4G TK003 GPS Locator Romote Monitoring Vibration Alarm Car Vehicle 4G GPS Tracker

FAQ:

1. Where is your factory?

Answer: Our factory is in Shenzhen City China.

2. Do you test all your products when your product them?

Answer: Yes, of course, we test all before ship them.

3. Do it contain built-in battery for your GPS Tracker product?

Answer: Yes,this model contains one 180mAh Li-ion battery.

4. What kinds of GPS Chip you use?

Answer: we used Ulbox Chip.
