4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker
4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker
4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker
4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker
4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker
4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker
Specifications
Brand Name :
Cartracker
Model Number :
C003-01-4G
Certification :
CE,ISO9000
Place of Origin :
Shenzhen China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T western Union
Supply Ability :
10,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Placement :
Windshield
Feature :
real-time positioning
Warranty: :
2years
Connection :
4G 3G
Size :
90*40*15MM
Model No :
GT06
Product Name: :
4G GPS Tracking Device
Description

4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker

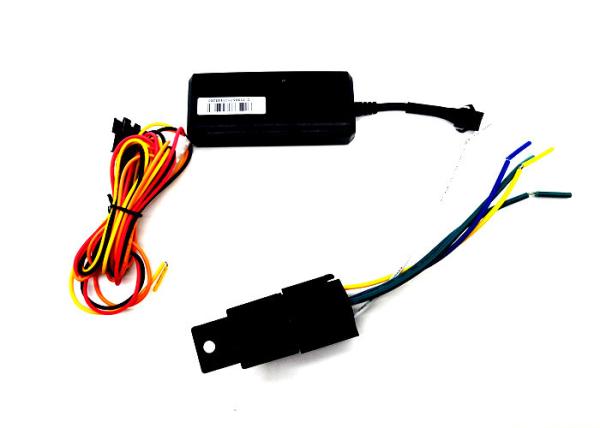

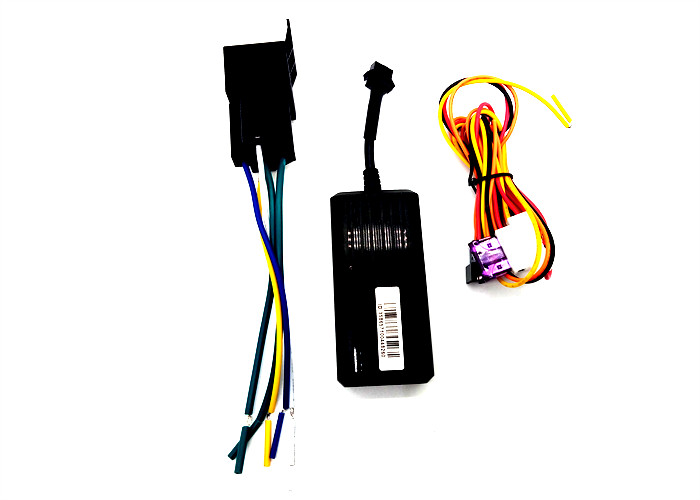

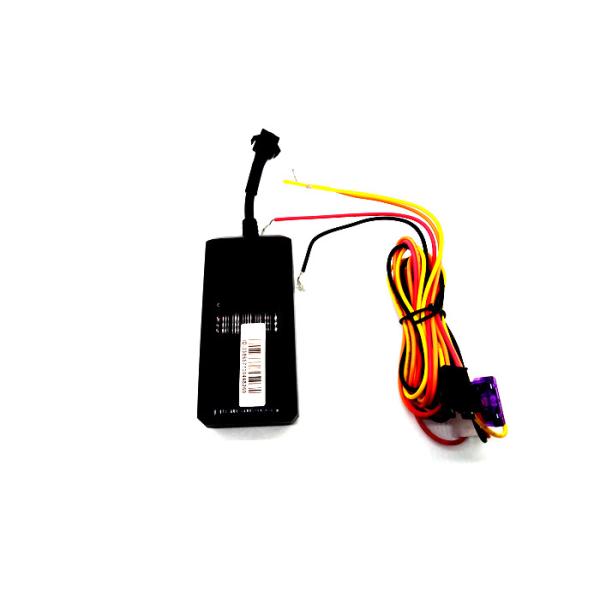

Product Accessories:

4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker

Red＆black cable for power

Orange cable for ACC/ignition

Yellow cable for Relay

Indicators :

LIGHT Functions
Red LED Connect DC 9-100V power supply and will light continuously.
The red LED is the power signal,
It is always on when the external DC is connected.
blue LED It is he GSM signal indicator.
It is always on when there is no GSM;
It flashes when GSM is normal;
It flashes quickly when transmitting data.
yellow LED It is the GPS signal indicator:
It is always on when there is no positioning;
It flashes after positioning.

4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker

Technical parameter:

Europe / Middle East / Africa / South
Korea / Thailand EC25-E:		 LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
North America EC25-A
EC25-V		 LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13
Australia/New Zealand/Taiwan/Brazil
EC25-AU		 LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
EC25-AUTL: LTE FDD: B3/87/828
Japan
EC25-J		 LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19

2G GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G FDD-LTE 800/850/900/1800/2100/2600MHz

Content Specs.
Dim. 90 mm x40 mm x 15 mm
Weight 50g
Network GSM/GPRS/GPS
Band 850/900/1800/1900 MHz
GPS chip U-B
GSM module MTK6261
GPS accuracy 10m
GPS locating time Cold start≈38s(Open sky)
Warm start≈32s(Open sky)
Hot start≈2s(Open sky)
Work voltage DC9V-100V
Storage Temp. -40°C to +85°C
Humidity 20%--80%

4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker

4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker

Main components:

GPS functions:
protocol: GT06 1)support ACC ignition checking
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6) platform /APP supported

Installation for SIM of device

1 Preparation for the installation

1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.

1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.

1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.

1.4 Put back the front cover and screw it up.

1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)

1.6 Install the device in the hidden place of the car；

The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.

4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker

4G GPS Tracker FDD-LTE ACC supported Car Motorcycle E-bike GSM GPS Tracker

Installation for the Car/Motorcycle/E-bike

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as followings:

Under Front windshield；

In the front instrument panel；

Under back windshield；

2) Avoid being placed with signal radiators like reverse sensor ；

3) The device has GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without metal cover.

Note:The metal cover will lessen the receiving of GPS signals.

FAQ:

Q:Haw can i buy it?
A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment.

Q:Can we put into my motorcycle?
A:Yes,of course!it support DC9-100V voltage input for any vehicles.

Q:Can we use your platform?
A:yes,you can use our platform.And it is free to use.

Q:What is the lead time if we place order to get the parcel?
A:It needs 1-10 working days after received your payment

What is your cell phone number?

My mobile phone number / WhatsApp is +8613717161241. Wechat is 008613717161241
