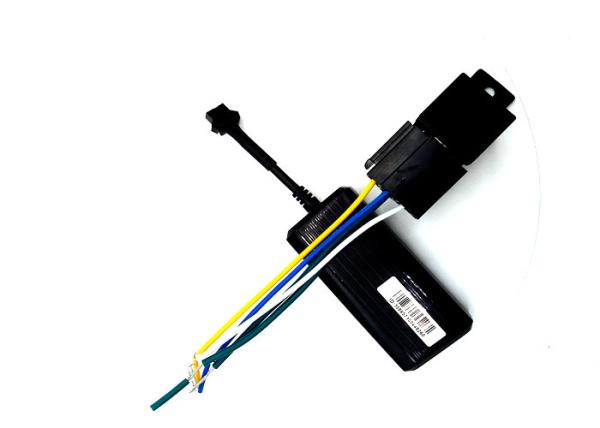

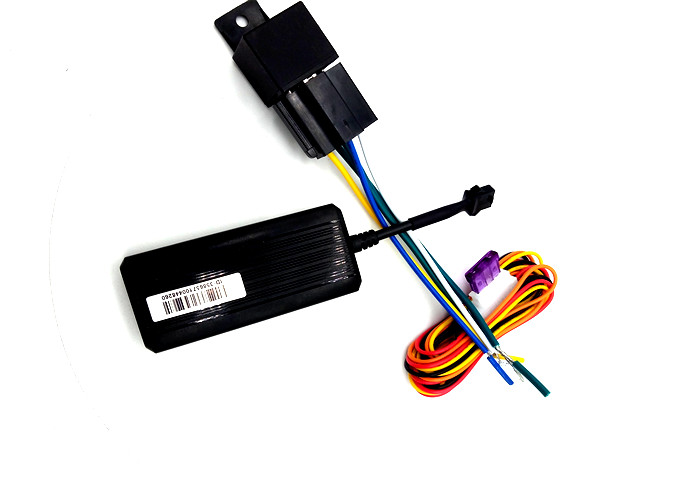

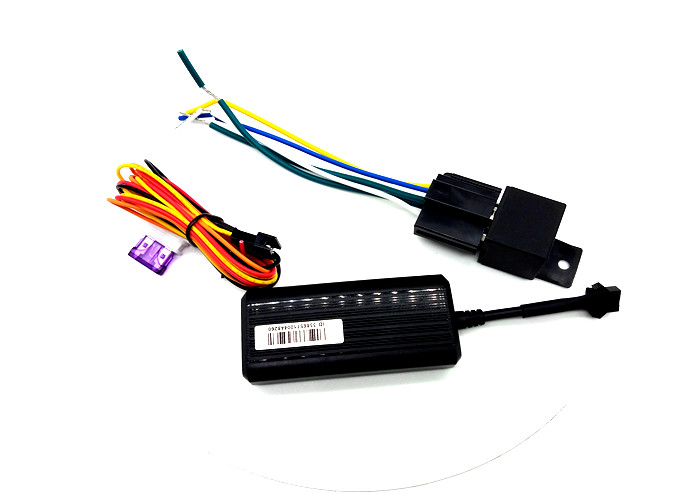

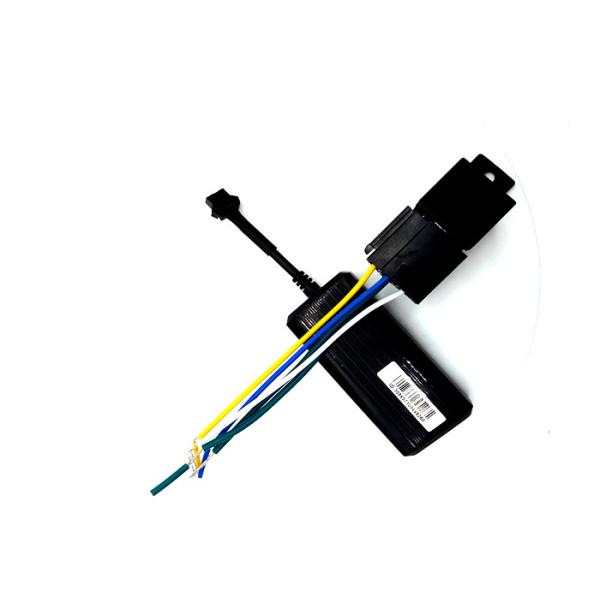

TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker
TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker
TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker
TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker
TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker
TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker
Specifications
Brand Name :
Cartracker
Model Number :
GT06
Certification :
CE/ROHS/FCC/SGS ISO9000
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
10,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Brand Name: :
TK003 4G Tracker
Use :
Motorcycle, Other, Automotive
Network :
GSM/GPRS/GPS
Application :
Web Platform Android APP IOS
Placement :
Windshield, Instument Panel
Built-in Battery :
200mAH
GPS Accuracy :
5M
Description

TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker

Product description

2G:GSM 850MHz,900MHz,1800MHz,1900MHz

3G WCDMA 2100/1900/900/850MHz

4G:FDD-LTE 800/850/900/1800/2100/2600MHz

Cut oil or circuit (relay is optional )

Over speed alarm

moving alarm

Vibration alarm

power cutoff alarm

Acc ignition detection

built-in battery is 200Mah

Microphone (optional)

SOS button (optional)

Relay (optional)

Product Paramenters

GSM Frequency
GSM 850/900/1800/1900MHz
Dimension
90*40*15mm
Weight
50g
Built-in Battery
200mAh
Colors
Black
Operating Voltage
9-36VDC
Working mode
Normal mode
Antenna
Built-in GPS and GSM antenna
Location Accuracy
10meters
Location time
Hot start:≤2sec(open sky)
　
Cold start:≤38sec(open sky)
Operating Temperature
-20℃~70℃
Operating Humidity
20%~80%

TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker

TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker

Technical parameter:

1).GSM:850/900/1800/1900 Quad band

2).GPRS: Class12, TCP/IP

3).Working Voltage:9-100V DC

4).Working current:≈22mA (12vDC)

5).Working current:≈12mA (24vDC)

6).GPS locating time:Cold start≈38s(Open sky)

Warm start≈32s Hot start≈2s(Open sky)

7).GPS Precision:10m(2D RM)

8).Working temperature:-20℃～+70℃

9).Working humidity:20%～80%RH

Main componets:

GPS functions:
protocol: GT06 1)support ACC ignition checking
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6) platform /APP supported

Device status indicators

LIGHT Functions
Red LED Connect DC 9-100V power supply and will light continuously.
The red LED is the power signal,
It is always on when the external DC is connected.
blue LED It is he GSM signal indicator.
It is always on when there is no GSM;
It flashes when GSM is normal;
It flashes quickly when transmitting data.
yellow LED It is the GPS signal indicator:
It is always on when there is no positioning;
It flashes after positioning.

TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker

TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker

Terminal Outlet Defined


(1) Red line connects positive power;
(2) Black line connects negative power;
(3) Orange connects ACC;
(4) Yellow connects relay
Please use the original supplied power cord, the red line is the positive power supply,
black for negative power, negative power installation, choose a separate grounding or
connect metal, do not connect with the other ground wire together. If need ACC
automatic anti-theft function, ensure to connect the ACC line, the device will detect the
ACC state to decide whether to enter the security mode; If not connect to ACC line, the
vehicle will enter the security mode, vibration occurs under the security mode, vibration
alarm will be triggered.

Proper Use of The Product


Install→Power on→Settings→Register
Installation: GPS antenna should be facing toward the sky, above the mounting location
must be no material (such as metal, window film) absorption of electromagnetic waves
sheltered place.

Boot: Insert the SIM card correctly, connect the wire according to diagram, then turn on
the power.


Setting: Must be done, or can not do other operations, mobile phone owners send text
messages to set the owner number and a specific number to the terminal SIM card.


Registration: Registration method is different subject to dealer platforms, please consult
your dealer.

TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker

TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker

Red light - Power Indicator / OBD Work Lights

LED Status Meaning
Flash once in 2 seconds Normal operation / OBD working properly
No light Shutdown / OBD sleep

Yellow indicator light -GSM

LED Status Meaning
Flash once in 2 seconds GSM initialization
Light Always GPRS is normal / already online
No light GSM sleep

Blue LED light -GPS

LED Status Meaning
Flash once in 2 seconds GPS signal searching
Light Always GPS targeted
No light GPS sleep

FAQ:

Q:Haw can i buy it?
A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment.

Q:Can we put into my motorcycle?
A:Yes,of course!it support DC9-100V voltage input for any vehicles.

Q:Can we use your platform?
A:yes,you can use our platform.And it is free to use.

Q:What is the lead time if we place order to get the parcel?
A:It needs 1-10 working days after received your payment

What is your cell phone number?

My mobile phone number / WhatsApp is +8613717161241. Wechat is 008613717161241
