Specifications
Brand Name :
Cartracker
Model Number :
C003-01-4G
Certification :
CE ISO9000
Place of Origin :
Shenzhen China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
10,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Function :
Over speed alarm
Place of Origin: :
Shenzhen China
Working voltage range :
DC 9V-100V
Current: :
22mA(12V DC)
Material :
Engineering plastic
Storage temperature range: :
- 40°C ~80°C
Built-in battery capacity :
200mAH
Working humidity range: :
20-80%RH
Description

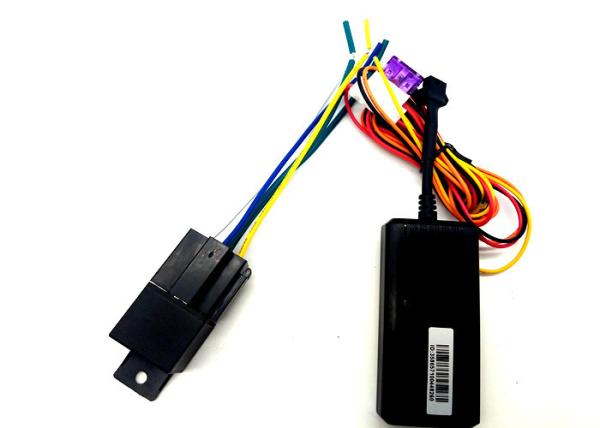

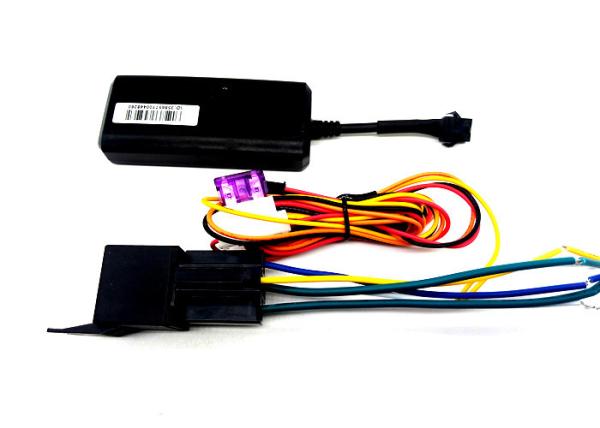

Relay Optional Cut off Power FDD Band 2G 3G 4G Vehicle Tracker with GPS / GSM / GPRS

Product Parameters:

Model GT06
Features Vehicle malfunction diagnostics
Device Dimension 90mm(L)*40mm(W)*15mm(H)
Weight 50g
Quad Band 850/1900/900/1800MHz
GPS Accuracy 5-10m
Voltage Input 9-100v
  Hot Start<2S(Open Sky)
Positioning Time Warm Start<15S
  Cold Start<32S(Open Sky)
Tracking Sensitivity -162dBm
GPS chip MTK6261
GSM/GPS Antenna Built-in Design

Relay Optional Cut off Power FDD Band 2G 3G 4G Vehicle Tracker with GPS / GSM / GPRS

Relay Optional Cut off Power FDD Band 2G 3G 4G Vehicle Tracker with GPS / GSM / GPRS

Main function

Relay Optional Cut off Power FDD Band 2G 3G 4G Vehicle Tracker with GPS / GSM / GPRS

Product features:
Accurate positioning, accuracy up to 5 meters.
GPS+ beidou +LBS three-mode positioning.
Functions: ACC detection, remote power off, DC detection, power off alarm, overspeed alarm, language intercom, electronic fence, remote photography, etc.
Industrial design, working voltage 9V - 100V.

Relay Optional Cut off Power FDD Band 2G 3G 4G Vehicle Tracker with GPS / GSM / GPRS

Relay Optional Cut off Power FDD Band 2G 3G 4G Vehicle Tracker with GPS / GSM / GPRS

4G Frequency bands

Europe / Middle East / Africa / South
Korea / Thailand
EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
North America EC25-A
EC25-V
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13
Australia/New Zealand/Taiwan/Brazil
EC25-AU
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
Japan
EC25-J
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19

2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz

Relay Optional Cut off Power FDD Band 2G 3G 4G Vehicle Tracker with GPS / GSM / GPRS

Relay Optional Cut off Power FDD Band 2G 3G 4G Vehicle Tracker with GPS / GSM / GPRS

Main components: (V1.0)

GPS functions:

protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,

GPS module: Ublox 6)platform /APP supported

Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM network, and enable GPRS flow;

Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our offering GPRS protocol, if you want our help to build a independent platform, it will cost technical fee, details you can contact us directly;

Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a distributor, please share all your IMEIs of devices, and then we can
make a distributor account for you, Available to manage your devices.

Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here, www.19gps.net,www.dyegoo.net and it support android and IOS, no Windows OS;

Q5: How about your platform cost?
Re: Free for lifetime;
