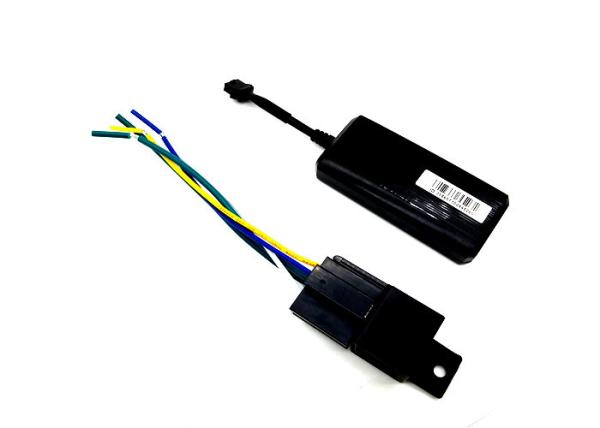

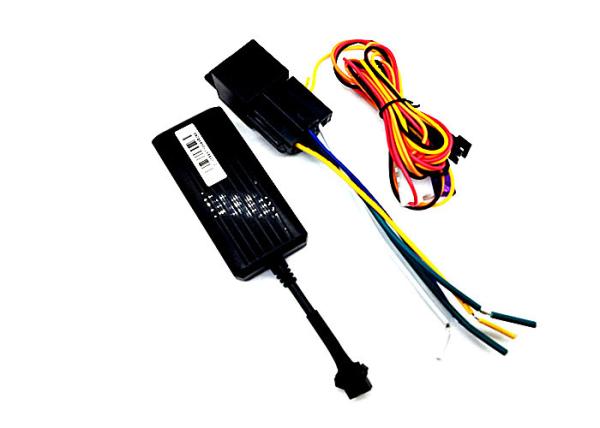

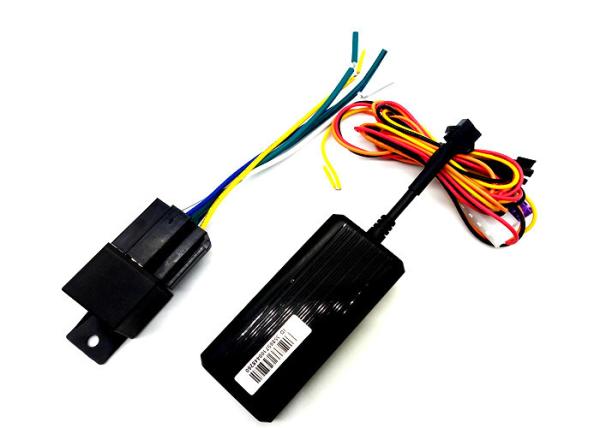

GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker
GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker
GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker
GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker
GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker
GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker
Specifications
Brand Name :
Cartracker
Model Number :
C003-01-4G
Certification :
CE ISO9000
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
10,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Function :
Realtime Tracking
Place of Origin: :
Shenzhen China
Application :
Real-time Tracking
Battery :
200mAH
Model No: :
C003-01-4G
Color :
Black
Keyword :
4G/3G/2G GPS Tracker
Feature :
Car Anti-theft
Description

GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

Product description

Working voltage
DC 9～40 V
Working temperature
-20℃～+70℃
Storage temperature
-40℃～+85℃
Working humidity
20%～80%RH
Main Chip
MT 6261
GPRS Module
MTK high sensitivity chip
Tracking sensitivity
-160dbm
Location accuracy
<10m
GSM frequency
2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz
Device weight
50g
Device dimension
90mm*40mm*15mm

GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

Equipment parameters:

Electric Speicifications
Power supply mode: Battery power supply
Working voltage range: DC 9V - 100V
Working current: 12mA (24vDC)
Built-in battery capacity: 200mAH

Environmental Features
Working temperature range -20℃ - 70℃
Storage temperature range, low - 30 ℃ -80 ℃
Working humidity range - 20%-80%RH

Communication frequency band
LTE FDD-LTE :B1/B3
　 TDD-LTE :B38/ B39/ B40/ B41
3G WCDMA:B1
　 TD-SCDMA:B34/B39
　 EVDO/CDMA2000 1x :BC0
GSM/EDGE B3/B8

Communication antenna - built-in antenna
GPS/LBS Positioning Characteristics
Cold start time - average 34 seconds
Hot start time - average 2 second
Sensitivity (tracking) -162DBM
Positioning antenna - built-in antenna

GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

4G Band

Europe / Middle East / Africa / South
Korea / Thailand EC25-E:		 LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
North America EC25-A
EC25-V		 LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13
Australia/New Zealand/Taiwan/Brazil
EC25-AU		 LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
Japan
EC25-J		 LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19

GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

GT06 Mini Vehicle GPS Tracker Real Time Tracking Device SMS+LBS Locator 4G GPS Tracker

Installation for SIM of device
Preparation for the installation
1.1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.
1.2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.
1.3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.
1.4 Put back the front cover and screw it up.
1.5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)
1.6 Install the device in the hidden place of the car；

The SIM card must be with GPRS function and enough deposit. If your SIM card need input PIN when power on, please cancel it.

How to tracking ?

The GPS devices support phone tracking.

Four types Tracking way:

A>: SMS + Map software;

B>: PDA Cell Phone;

C>: Real time tracking, and track via your computer;

D >: IOS and Android APP

What is your cell phone number?

My mobile phone number / WhatsApp is +8613717161241. Wechat is 008613717161241
