Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker
Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker
Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker
Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker
Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker
Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker
Specifications
Brand Name :
Cartracker
Model Number :
C003-01-4G
Certification :
ISO9000 CE
Place of Origin :
Shenzhen China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
10,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Band Support: :
2G, 3G, 4G B1/B3/B38/ B39/ B40/ B41
Battery :
200mAH Builit-in
SOS :
Support SOS Button
Weight :
50g
Support SIM Card :
2G, 3G and 4G
Dimension :
90mm*40mm*15mm
Use :
Automotive
Function :
Anti-theft
Description

Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker

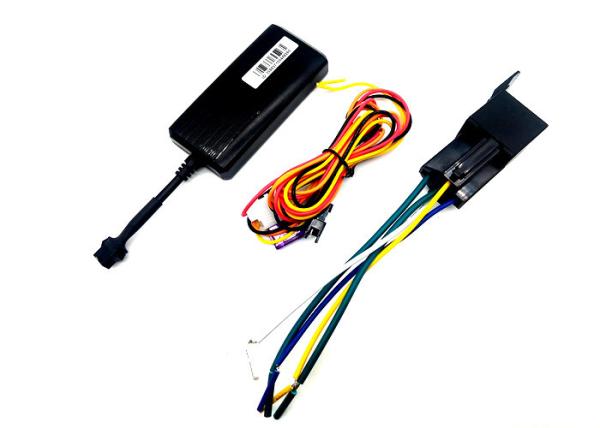

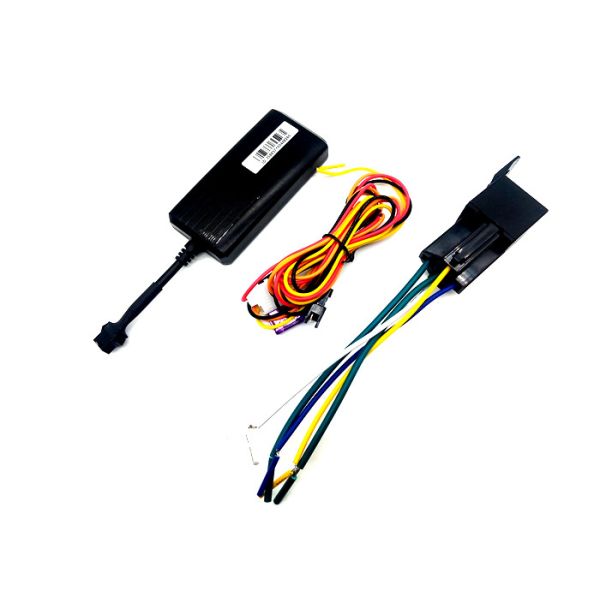

Accessories

Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker

Red＆black cable for power

Orange cable for ACC/ignition

Yellow cable for Relay

Product features:
Accurate positioning, accuracy up to 5 meters.
GPS+ beidou +LBS three-mode positioning.
Functions: ACC detection, remote power off, DC detection, power off alarm, overspeed alarm, language intercom, electronic fence, remote photography, etc.
Industrial design, working voltage 9V - 100V.

Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker

Application:
Rental vehicles, credit vehicles, passenger vehicles, taxis, freight vehicles and so on.

Equipment parameters:

Electric Speicifications
Power supply mode: Battery power supply
Working voltage range: DC 9V - 100V
Working current: 12mA (24vDC)
Built-in battery capacity: 200mAH

Environmental Features
Working temperature range -20℃ - 70℃
Storage temperature range, low - 30 ℃ -80 ℃
Working humidity range - 20%-80%RH

Communication frequency band -
LTE FDD-LTE :B1/B3
TDD-LTE :B38/ B39/ B40/ B41
3G WCDMA:B1
TD-SCDMA:B34/B39
EVDO/CDMA2000 1x :BC0
GSM/EDGE B3/B8
Communication antenna - built-in antenna
GPS/LBS Positioning Characteristics
Cold start time - average 34 seconds
Hot start time - average 2 second
Sensitivity (tracking) -162DBM
Positioning antenna - built-in antenna

Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker

Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker

Description:

Remote cut-off (petrol/power) Light and compact
Compel the vehicle to stop by breaking off the fuel connection Small size allowing covert & easy mounting

ACC detection GPS + LBS Positioning
Be aware of the ignition status where you need Allow the location to be pinpointed in real time

Tracked by: SMS, APP, Web voltage range:9-100V
Reports location in real time through different interfaces Voltage adaptation up to 100v

Frequency

Europe / Middle East / Africa / South
Korea / Thailand EC25-E:		 LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
North America EC25-A
EC25-V		 LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13
Australia/New Zealand/Taiwan/Brazil
EC25-AU		 LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
Japan
EC25-J		 LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19

Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker

Dual-mode positioning 4G GPS Tracker Realy Optional Anti-theft 2G 3G 4G FDD Tracker

GPS Tracker Main Functions:

【Real Time Tracking】 GPS tracker offers real-time tracking and 30 days of tracking history. Track from any smart intellectual Product such as a computer, tablet, phone, etc. Support platform lifetime. Just login or download APP, track any location anywhere and anytime. The car GPS tracker for vehicle work in almost every country in the world


【Free to Use】Real time tracking route playback history check via our platform lifetime. But this mini GPS tracker device only supports GSM 4G network. Not include a GSM SIM card, please buy a GSM card, Speed Talk is perfect. If you have any problems please feel free to contact us

FAQ:

1. Where is your factory?

Answer: Our factory is in Shenzhen City China.

2. Do you test all your products when your product them?

Answer: Yes, of course, we test all before ship them.

3. Do it contain built-in battery for your GPS Tracker product?

Answer: Yes,this model contains one 180mAh Li-ion battery.

4. What kinds of GPS Chip you use?

Answer: we used Ulbox Chip.
