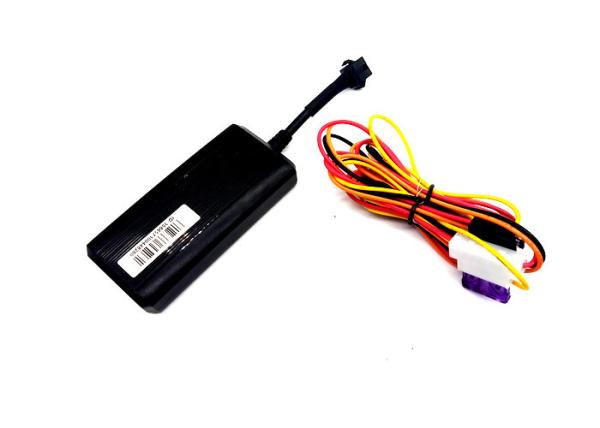

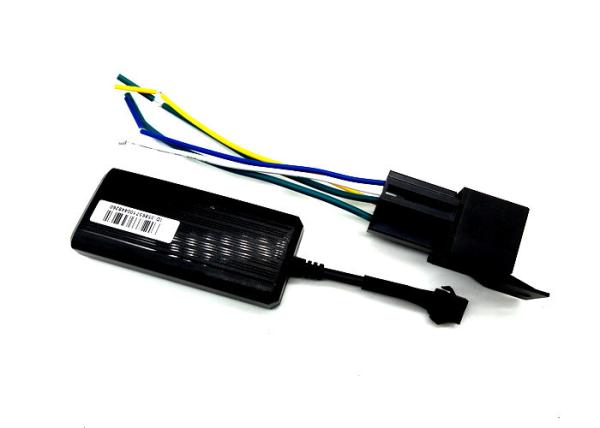

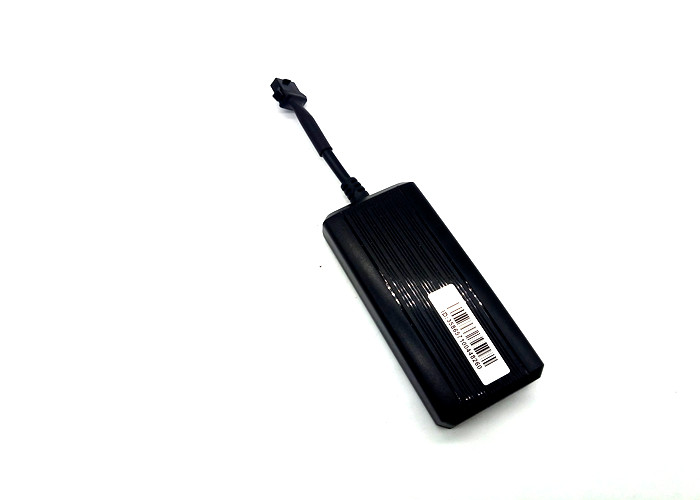

Real Time Mini GPS Tracking Chip Mini GPS Receiver Tracker/Car GPS Locator With Remote Control
C003-01-4G model is a 4G real-time positioning terminal device that can realize functions such as electronic fences, remote tracking, and
one-key car lock.
The C003-01-4G model is small in size and easy to install and fix. The product has a built-in 200mAh battery.
Real Time Mini GPS Tracking Chip Mini GPS Receiver Tracker/Car GPS Locator With Remote Control
Project Note
Communications | Support TCP/IP |
support TCP ,SMS , | |
Location | Real-time monitoring |
Report by configuration interval | |
Support corner reporting (during wake-up call) | |
General | Support vibration detection trigger |
Support rollover warning (optional); | |
gsensor for mandatory closure |
Real Time Mini GPS Tracking Chip Mini GPS Receiver Tracker/Car GPS Locator With Remote Control
Specifications
Project | Specifications |
Size | 90*40*15mm |
Working voltage | 9-80V |
Working temperature | -20℃ -- 70℃ |
Working humidity | 20%-80% non-condensed water |
Battery capacity | 200 mah |
Working current | 22ma(12VDC),12MA(24VDC) |
Standby time | More than 180 days (2 records per day) |
Net weight | 0.05kg |
Communications frequency | Please refer to the distribution table |
GPS sensitivity | 159 bdm |
Positioning accuracy | <10 m |
Cold start | <38 s (average) |
Hot start | <2 s (average) |
Proposed hidden place:
(1) Below the windshield inside the decorative panel;
(2) Car meter (surface of non-metallic materials) around the shelter;
(3) Rear windshield below the decorative panel;
(4) Inside car door or pillar;
(5) Within the dashboard or under back seat hidden
Note:
(1) If below the windshield there is metal insulation or heating layer will reduce the GPS signal reception, causing the GPS malfunction, please change the installation position;
(2) Some models are built-in 3D sensor, and it needs to detect acceleration, deceleration and rollover, equipment must be installed according to the mounting direction front and rear direction of the vehicle can not be mounted transversely.
Real Time Mini GPS Tracking Chip Mini GPS Receiver Tracker/Car GPS Locator With Remote Control
Frequently asked questions
Q: Can the customer`s location monitoring systerm be used?
A: Of course.we will send you the communication protocol,and you can modify the communication protocol according to our protocol.
Q: Can the appearance be defined? Can product functions be customized?
A: Of course.The appearance and functions can be customized.
Our services:
1.Reply Time: All inquiries will be answered within 24 hours.
2. Payment Times: We accept payment by T/T or western Union or paypal.
3. Shipment Times: All orders can be shipped out within 1-3 working days normally. Once the order is shipped out, we will send an email to you include the track number and the package photos.
4. MOQ Limitation: No MOQ limit, 1 pc for sample checking is available.
