Specifications
Brand Name :
Cartracker
Model Number :
C003-01-4G
Certification :
CE ISO9000
Place of Origin :
Shenzhen China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or western Union or paypal
Supply Ability :
10,000pcs per month
Delivery Time :
1-10 working days after received your payment
Packaging Details :
Packed in carton firstly
Type :
4G GPS Tracker
Positioning Mode :
GSM, GPS, LBS, Beidou
Application :
Web Platform/APP
Color :
Black
size :
90*40*15mm
Placement :
Windshield, Instument Panel
Function :
Real Time Tracking
Warranty :
12 month
Description

Real Time Tracking Gps Tracker Monitoring For Cars Vehicle Anti Theft Tracking With Free Platform

This car gps tracker have 2G/ 3G /4G version, they are same function,if your country can use 2G network,this product is not recommended.if not, then can choose 3G or 4G version, they are great ! Have gps tracker platform,see all your trackers on one account. Free to use our platform in first year !

Different Tracking Methods

Option 1

Track by sms command or phone call

Option 2

Track by website on Computer

Option 3

Track by APP on mobile phone(IOS and Android)

Real Time Tracking Gps Tracker Monitoring For Cars Vehicle Anti Theft Tracking With Free Platform

Features :

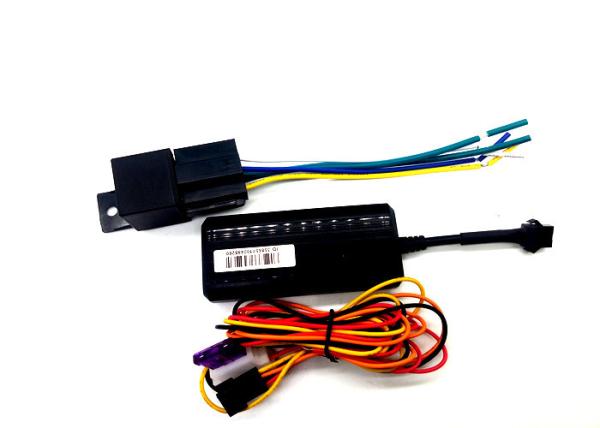

Cut power remotely with relay(optional)/built-in switching power supply
ACC the ignition signal detection- vehicle status alert by SMS
emergency power backup in case power is cut
3G Support WCDMA - 2100/900/850/1900Mhz
Free Web site and APP tracking
Motion Detection/Vibration Alerts on by SMS
Location by SMS, Phone on APP, PC
Internet Website account Tracking
Geo Fence

Multiple device support

1.Various alarm

2.Geo-fence

3.SMS tracking

4.History tracking

5.Remotely cut off power/fuel

6.Accuracy 5M

Realtime tracking

Remotely real-time tracking via mobile APP and website platform

History playback

6 mohths history route playback, easy checked by APP and website

Geo-fence

Out/in geo-fence,APP has alarms and SMS alarms send to admin number.

Can download reports in website platform

Working voltage

Wide working input voltage range DC9-100V

A wide range voltage suit for taxi, bus,vehicle,motorcycle,truck.

Real Time Tracking Gps Tracker Monitoring For Cars Vehicle Anti Theft Tracking With Free Platform

Description

Parameter
Size 90(L)×40(W)×15(H)mm
Working temperature -20℃~+70℃
Working Voltage DC9-100V
Weight 50g
Built-in Battery 200MAH

Hardware Specification
Location Accouracy 10M
GPS Chip MT6261
FDD-LTE Frequency 800/850/900/1800/2100/2600MHz
GPS antenna Built-in,18*18*4 mm
GPRS Class12 TCP/IP
Software Specification
ACC Detection support
GEO-fence support
Cut power support
Vibration support
Movement support

Real Time Gps Tracker Monitoring For Cars Vehicle Anti Theft Tracking With Free Platform

Real Time Tracking Gps Tracker Monitoring For Cars Vehicle Anti Theft Tracking With Free Platform

Solutions to common problems of GPS locator
(1) Question: What else should I prepare after I buy it? Can it be used directly?

Answer: To prepare a mobile phone card, this card must be activated with GRPS CMNET Internet access function.

(2) Q: Why is the newly installed equipment displayed in other places?

Answer: 1. If the vehicle displays a "stationary" state on the platform after being installed, but it is displayed elsewhere on the map. This is because after the device is installed, the vehicle has been at a standstill. When the device is at a standstill, GPS data will not be transmitted to the server (for data saving considerations). This phenomenon is because the device has not yet transmitted the latest positioning data to the server, and the old positioning data is still displayed. So what you see is the old location data.

Solution: Please drive the vehicle out to an open area for a certain distance. When the vehicle is in motion, the latest positioning data will be uploaded to the server, and the accurate location can be seen. .

2. If the vehicle displays "offline" or "not online" status on the platform after it is installed. This is because the device has not been connected to the server, the GPS positioning data has not been uploaded to the server, and the old positioning data is seen.

(3) Question: May I ask the base station (LBS) positioning always drifts to a fixed place, and the distance is too large, why?

Answer: The location of the base station depends on whether it is consistent with the synchronization between the base station and Google Maps. Some new base stations or moved base stations will drift if they are not updated in time in Google. You can only wait for Google to update regularly.

(4) Question: Why does the data in the operating statistics do not match the actual situation? Does the mileage statistics do not match the actual mileage?

Answer: The running statistics function on the monitoring platform performs statistics based on the location information uploaded to the monitoring platform by the locator. The position information of the locator may be restricted by factors such as signal, environment, malfunctions, etc.

In other words, if the locator is offline or not positioned and there is no accurate position data, there may be some errors in the running statistics. Therefore, the operating statistics on the monitoring platform can only be used as a reference basis.
