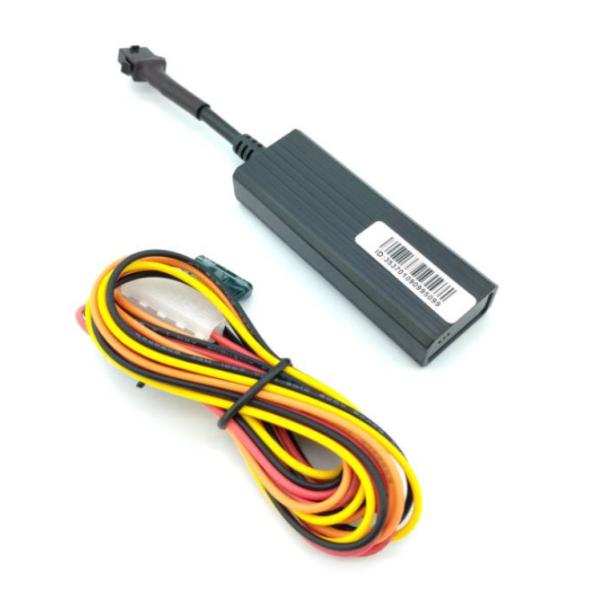

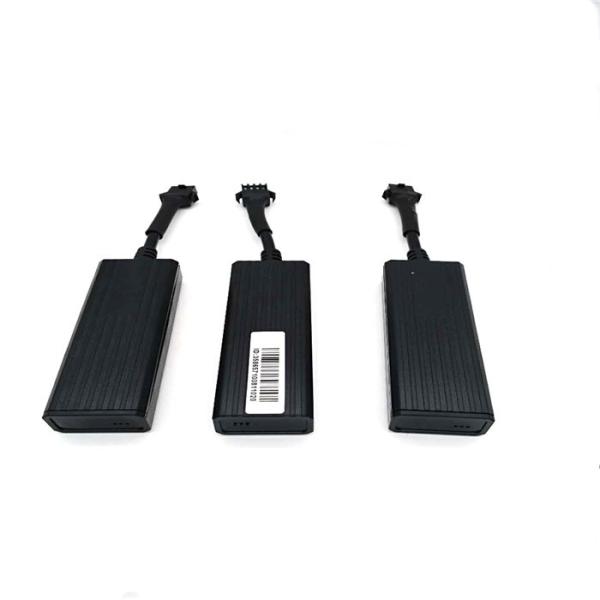

TK003 GPS Vehicle Tracking Device Mini Size Free App Cheapest Cost Gt06 Protocol

Main components: (V1.0)

GPS functions:

protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm, GPS module: Ublox 6) platform /APP supported

GPS Tracker Parameters:

Multi-Mode Positioning: BD GPS LBS

TK003 GPS Vehicle Tracking Device Mini Size Free App Cheapest Cost Gt06 Protocol

Frequently used commands:

GPS Tracker Applications And Where you install it.

GPS Tracker Main Functions:

1. Real-Time Positioning:

TK003 GPS Tracker Device will get the real-time position message and upload all status to the server system.

And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed

GPS Time, direction, and so on.

2. Vibration alarm:

After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.

3. Power-off alarm:

If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.

4. Remote Car Lock

If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.

5. SOS Alarm

Users can press the SOS button on GPS Tracker in emergency situations. GPS Tracker will send an alarm message to manage the system and

Call police simultaneously.

Terminal connection:

male switch, Female switch

Red(positive) Black (Negative)

1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure connect the right connector)

2.1 Installation for the Car/Motorcycle/E-bike

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as follows:

Under Front windshield；

In the front instrument panel；

Under back windshield；

2) Avoid being placed with signal radiators like reverse sensor ；

3) The device has a GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without a metal cover.

Note: The metal cover will lessen the receiving of GPS signals.

TK003 GPS Vehicle Tracking Device Mini Size Free App Cheapest Cost Gt06 Protocol

Other Model:

TK004 Mini GPS Tracker

CA-V1 compatible with Fuel lever sensor

CA-P2 Pet GPS Tracker

FAQ:

How to use this GPS tracker?

1. Input SIM Card inside the GPS Tracker product.

2. Connecting GPS Tracker with power supply.

3. Put a GPS Tracker device near a window or some open area waiting for signal ready.

4. When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive a GPS Tracker status report by SMS.
