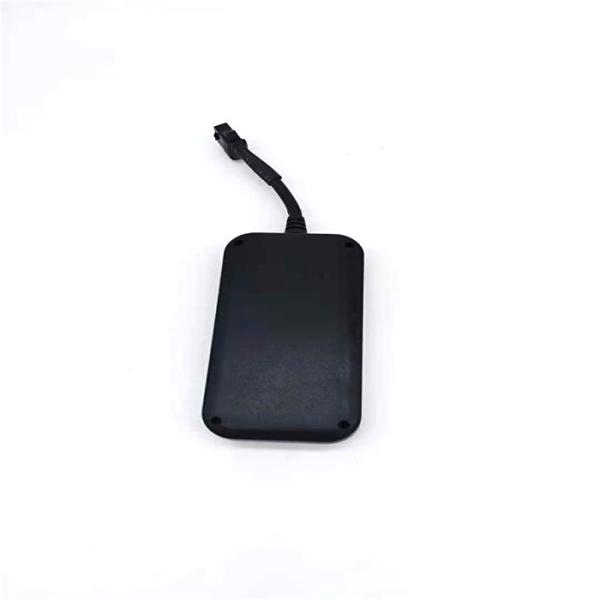

4G LTE GPS Tracker Real Time Car Tracking Device for Vehicle/Asset/Marine/Motorcycle

GPS Tracker Parameters:

Multi-Mode Positioning: BD GPS LBS

11. 2.4 Support SMS text query location information;

12. 2.5 ACC ignition signal is detected, the vehicle prompted the state;

13. 2.6 Built-in vibration sensor, to achieve intelligent vehicle anti-theft;

14. 2.7 Able to set a specific number for SOS alarm and burglar alarm;

15. 2.8 SOS switch button for the emergency call for help;

16. 2.9 Internal/external microphone and speakers, remote audio monitoring and voice intercom function (optional);

17. 2.10 Built-in backup battery, to achieve illegal cutting wire alarm (optional);

18. 2.11 Built-in OBD2 remote vehicle diagnostics management system (optional);

19. 2.12 Platform supports up to 180 days historical route track;

20. 2.13 Platform supports electronic fence, out of the regional alarm;

21. 2.14 Platform supports deviate planning route alarm;

22. 2.15 Platform supports Overspeed alarm;

23. 2.16 Platform supports serious collision warning (optional);

24. 2.17 Platform Support rollover warning (optional);

25. 2.18 Platform supports for report output;

26. 2.19 Support WEB send arm and disarm command;

27. 2.20 Support RFID auto-sensing arm and disarm (optional); Installation Notes

4G LTE GPS Tracker Real Time Car Tracking Device for Vehicle/Asset/Marine/Motorcycle

Frequently used commands:

Terminal connection:

male switch, Female switch

Red(positive) Black (Negative)

1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure connect the right connector)

GPS Tracker Main Functions:

Indicators

Proper Use of The Product

Install→Power on→Settings→Register

Installation: GPS antenna should be facing toward the sky, above the mounting location, must be no material (such as metal, window film) absorption of electromagnetic waves sheltered place.

Boot: Insert the SIM card correctly, connect the wire according to the diagram, then turn on the power.

Setting: Must be done, or can not do other operations, mobile phone owners send text messages to set the owner number and a specific number to the terminal SIM card.

Registration: The registration method is a different subject to dealer platforms, please consult your dealer.

Instructions

Note: The symbol is separated by a comma, the following function parameters instruction comma is in English input state.

Owner password settings

Owners can only bind one mobile number, the last mobile number of binding is effective. bind a certain mobile number, another mobile number can not be reached or connected.

The default owner password is: 123456

Set owner number is: admin123456 13712345678

Re: Welcome and thank you for choosing Poronix GPS tracker, admin ok

Modify owner password: password123456 666888 (666888 for the new password)

1. Real-Time Positioning:

GPS Tracker Device will get the real-time position message and upload all status to the server system.

And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. speed

GPS Time, direction, and so on.

2. Vibration alarm:

After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.

3. Power-off alarm:

If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.

4. Remote Car Lock

If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.

2.1 Installation for the Car/Motorcycle/E-bike

The GPS tracker must be installed under professional personnel.

Note:

1) Please install the device in the hidden place as follows:

Under Front windshield；

In the front instrument panel；

Under back windshield；

2) Avoid being placed with signal radiators like reverse sensor ；

3) The device has a GSM antenna and GPS antenna inside. Please ensure the receiving side of the device is face up and without a metal cover.

Note: The metal cover will lessen the receiving of GPS signals.

4G LTE GPS Tracker Real Time Car Tracking Device for Vehicle/Asset/Marine/Motorcycle

Other Models:

TK003 Mini GPS Tracker

GPS Tracker Applications And Where you install it.

TK004 Mini GPS Tracker

CA-V1 compatible with Fuel lever sensor

CA-P3C magnatic GPS tracker long time standard by battery

FAQ:

How to use this GPS tracker?

1. Does the GPS tracker need a SIM card?

1. It depends on the models. Most of our GPS tracking devices need the SIM card, please check the network details from the product description before ordering.
2. Normally 4G device can compatible with 3G and 2G network, so a 4G SIM card is needed. 2G/3G SIM card can’t work on 4G device.
